UK termainsl

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section

The UK universal screw terminal block series has the typical features which are decisive for practical applications.
Made from engineering flame retardants nylon PA66 with brass screw metal.

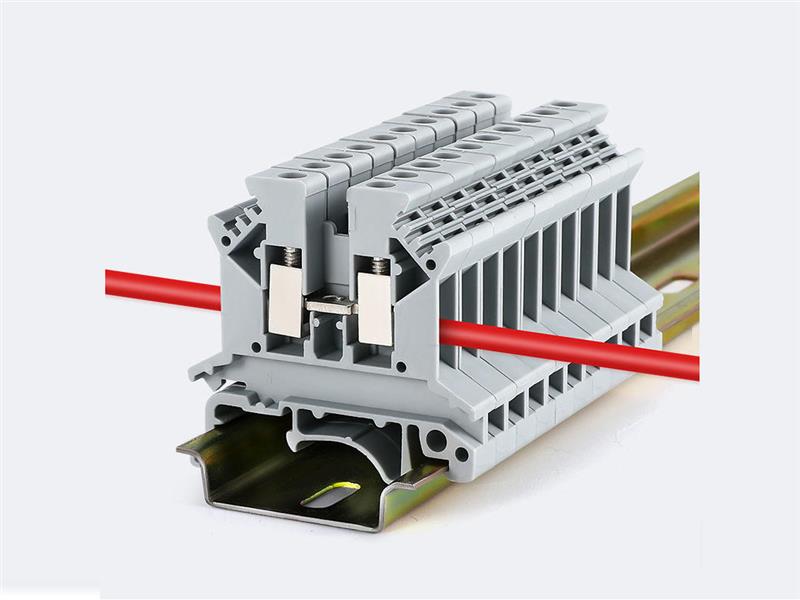

With universal foot which can be installed on Din Rail NS 35.添加
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

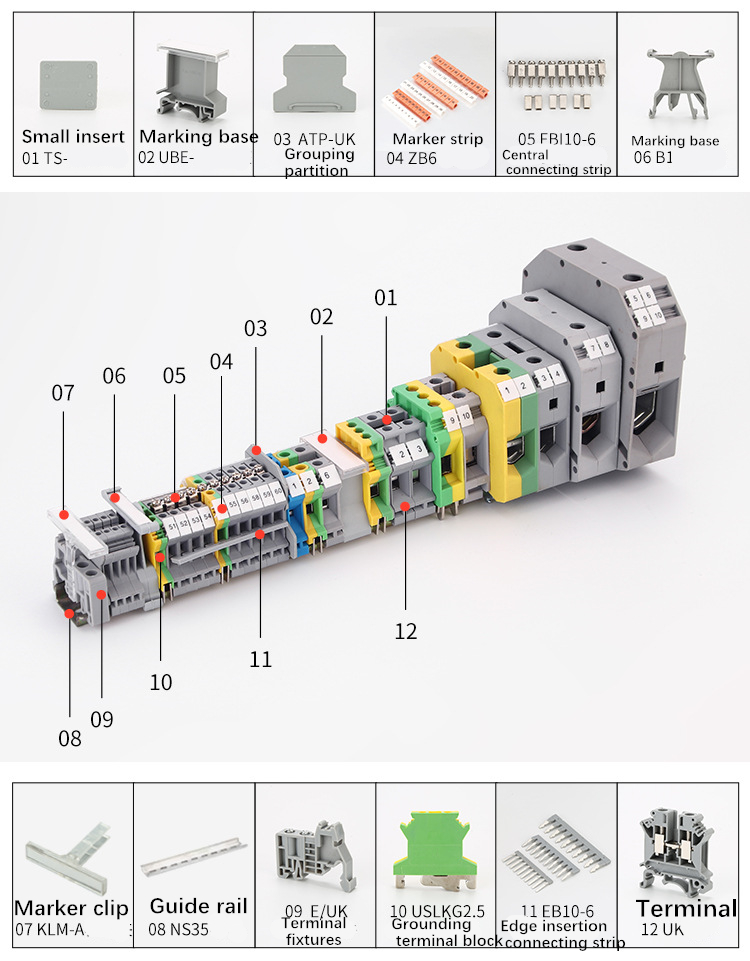

All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

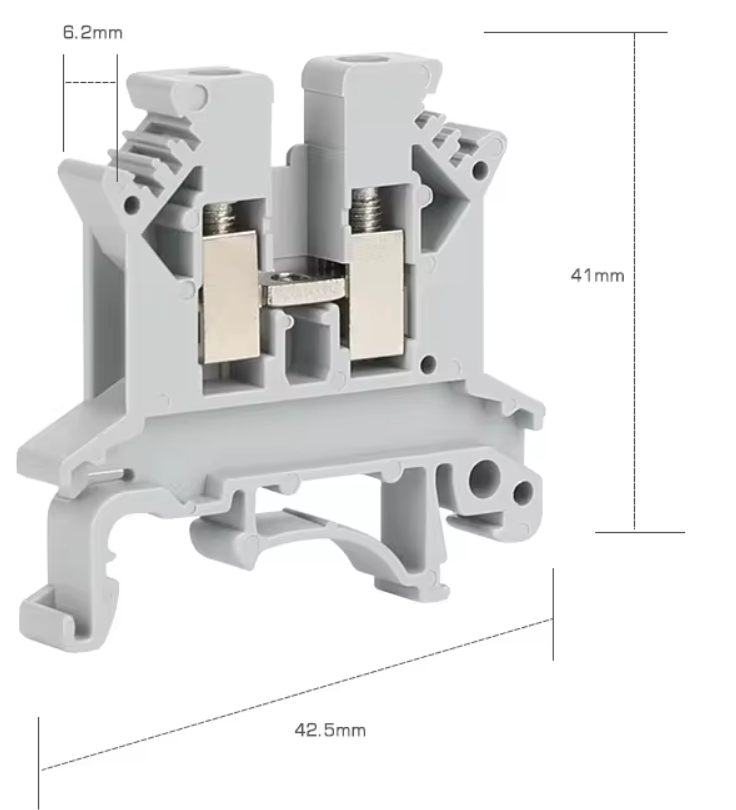

ITEM Product  size
(mm)
Current
(A)
Voltage
(V)
Wire range
(mm²)
UK-1.5B    43x4.2x41 17.5 500 1.5
UK-2.5B 43x6x41 32 690 2.5
UK-3N  43x5.2x46.5 32 800 2.5
UK-5N   43x6.2x46.5 41 800 4
UK-6N   43x8.2x46 57 800 6
UK-10N   43x10.2x46.5 76 800 10
UK-16N   42.5x12.2x51 101 00 16
UK-25N   42.5x14.2x47 100 800 25
UK-35N  55x15.2x50 125 1000 35
UK-50N  71x20x76.5 150 1000 50
UK-90N  84x25x90.5 232 1000 35
