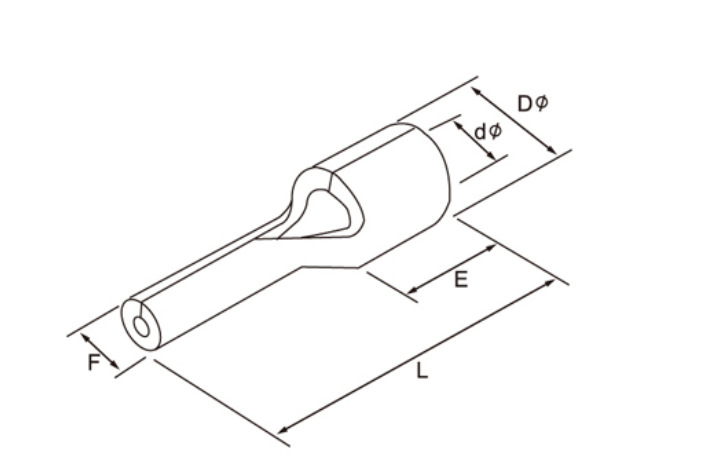

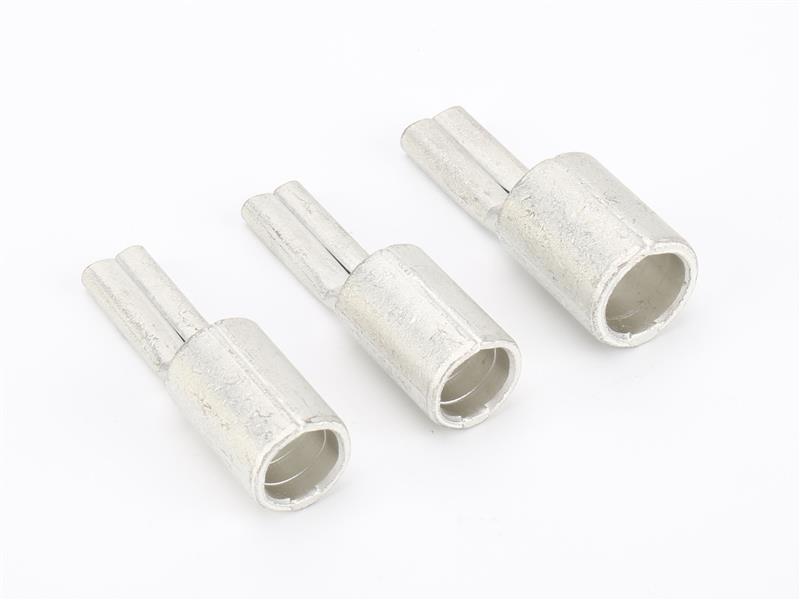

Non-insulated Pin Terminals-PTN Series
| Item No. |
Dimension(mm) |
Remarks |
| F |
L |
E |
DΦ |
dΦ |
| PTN1.25-9 |
1.9 |
13.8 |
4.8 |
3.4 |
1.7 |
Cable size:0.5-1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.75mm |
| PTN1.25-10 |
1.9 |
14.8 |
| PTN1.25-12 |
1.9 |
16.8 |
| PTN1.25-13 |
1.9 |
17.8 |
| PTN1.25-18 |
1.9 |
22.8 |
| PTN2-9 |
1.9 |
13.8 |
4.8 |
4.1 |
2.3 |
Cable size:1.5-2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.75mm |
| PTN2-10 |
1.9 |
14.8 |
| PTN2-12 |
1.9 |
16.8 |
| PTN2-13 |
1.9 |
17.8 |
| PTN3.5-10 |
2.8 |
14.8 |
6 |
5 |
3 |
Cable size:2.5-4mm²(A.W.G.14-12) Max current:Imax=36A Material: purple copper Thickness:1.0mm |
| PTN3.5-13 |
2.8 |
19.8 |
| PTN5.5-13 |
2.8 |
19.8 |
6 |
5.6 |
3.4 |
Cable size:4-6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm |
