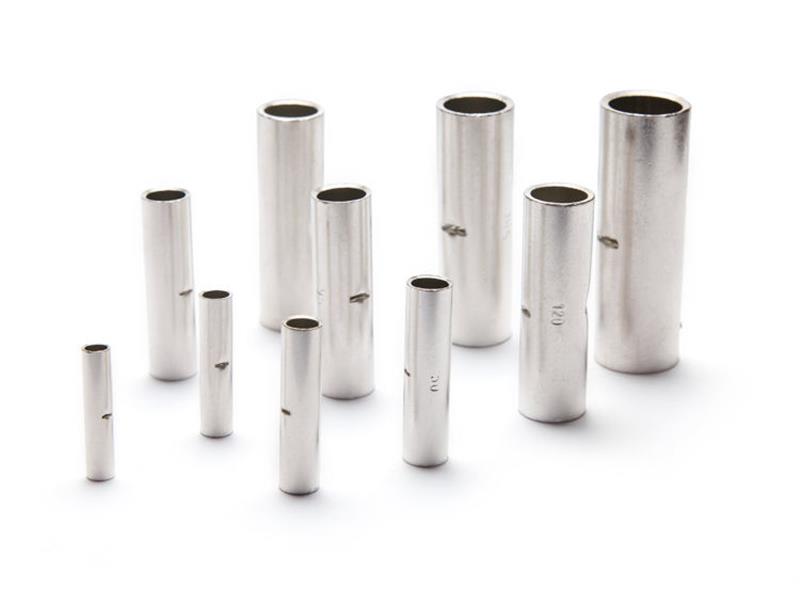

Non-insulated Butt and Parallel Connectors-BN Series
| Item No. |
Conductor Section |

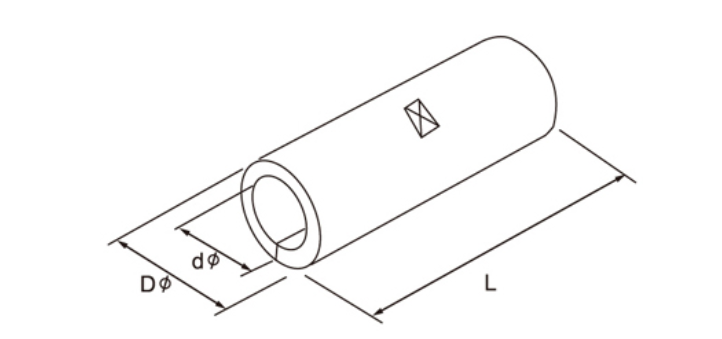

Dimension(mm) |
| A.W.G |
mm² |
DΦ |
dΦ |
L |
| BN1.25 |
22-16 |
0.5-1.5 |
3.3 |
1.7 |
15 |
| BN2 |
16-14 |
1.5-2.5 |
4 |
2.3 |
15 |
| BN3.5 |
14-12 |
2.5-4 |
5 |
3 |
15 |
| BN5.5 |
12-10 |
4-6 |
5.5 |
3.4 |
15 |
| BN8 |
#8 |
10 |
7.1 |
4.5 |
21 |
| BN14 |
#6 |
16 |
9 |
5.8 |
26 |
| BN22 |
#4 |
25 |
11.4 |
7.7 |
29 |
| BN38 |
#2 |
35 |
13.3 |
9.4 |
32 |
| BN60 |
1/0 |
50 |
15.4 |
11.4 |
36 |
| BN70 |
2/0 |
70 |
17.5 |
13.3 |
37 |
| BN80 |
3/0 |
95 |
19.4 |
14.5 |
38 |
| BN100 |
4/0 |
120 |
22 |
16.4 |
38 |
| BN150 |
250-300MCM |
150 |
26.5 |
19.5 |
54 |
| BN180 |
300-350MCM |
185 |
28.5 |
21 |
57 |
| BN200 |
400MCM |
240 |
32.5 |
24 |
63 |
| BN325 |
500-600MCM |
300 |
37 |
28 |
72 |
