Model : TE Series
Type: Crimp Terminal

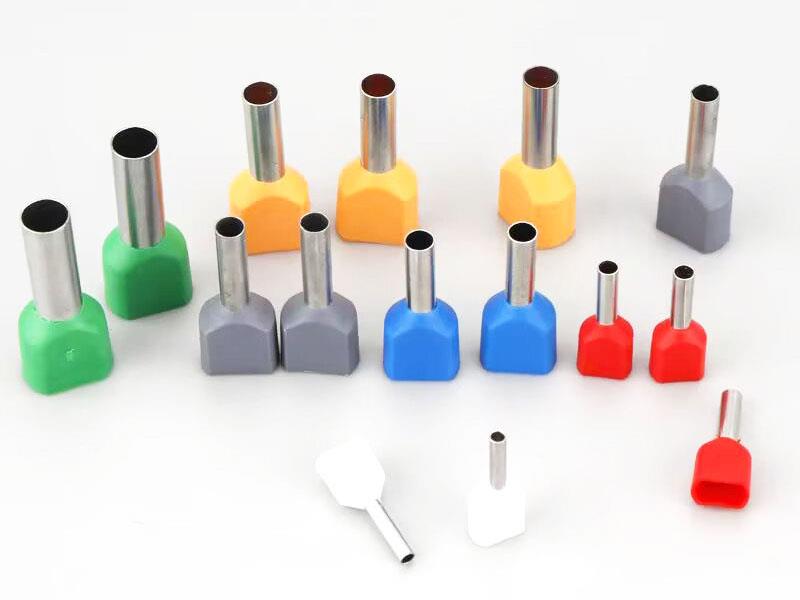

Description:nsulated twin cord end terminal
Color:red,blue,black,white,yellow, green, orange, brown, gray
Conductor material:copper/brass
Insulation material:Flame retardant PP(Polypropylene)

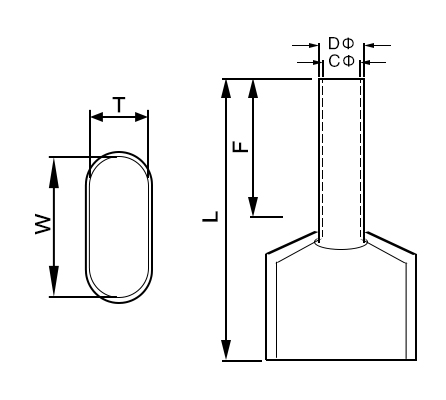

| ITEM NO | Dlmenslon（mm） | Cable slze | |||||
| F | L | W&T | DΦ | CΦ | A.W.G | (mm²) | |
| TE0508 | 8 | 14.5 | 4.6&2.2 | 1.8 | 1.4 | 2*#22 | 2*0.5 |
| TE0510 | 10 | 16.5 | |||||
| TE0512 | 12 | 18.5 | |||||
| TE7508 | 8 | 14.6 | 5.0&2.7 | 2.1 | 1.7 | 2*#20 | 2*0.75 |
| TE7510 | 10 | 16.6 | |||||
| TE7512 | 12 | 18.6 | |||||
| TE1008 | 8 | 14.8 | 5.2&2.9 | 2.4 | 1.9 | 2*#18 | 2*1.0 |
| TE1010 | 10 | 16.8 | |||||
| TE1012 | 12 | 18.8 | |||||
| TE1508 | 8 | 16 | 6.3&3.5 | 2.6 | 2.1 | 2*#16 | 2*1.5 |
| TE1510 | 10 | 18 | |||||
| TE1512 | 12 | 20.2 | |||||
| TE2508 | 8 | 17.5 | 7.6&4.1 | 3.3 | 2.8 | 2*#14 | 2*2.5 |
| TE2510 | 10 | 19.5 | |||||
| TE2512 | 12 | 21.5 | |||||
| TE4009 | 9 | 19.6 | 8.4&5.1 | 4.2 | 3.7 | 2*#12 | 2*4.0 |
| TE4012 | 12 | 22.6 | |||||
| TE6012 | 12 | 23.4 | 9.6&5.9 | 5.3 | 4.8 | 2*#10 | 2*6.0 |
| TE6014 | 14 | 25.4 | |||||
| TE10-14 | 14 | 21 | 7.4 | 4.9 | 4.5 | 2*#7 | 2*10.0 |
| TE16-14 | 14 | 22 | 8.6 | 6.2 | 5.8 | 2*#5 | 2*16.0 |
