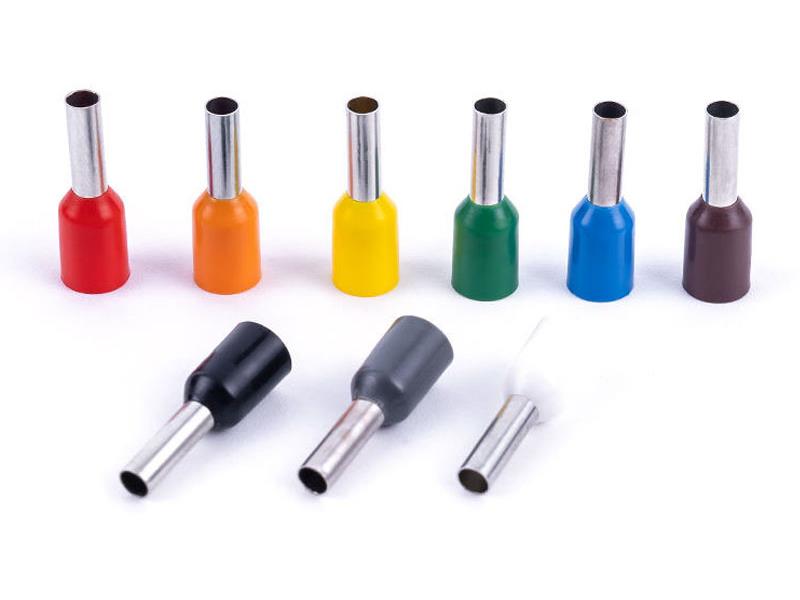

| Product Name | E series Insulated Wire Crimp Connector Cord End Terminal |
| Material | Terminal Body：Copper/Brass Surface :Tin Plating Insulation:P.P |
| Wire Gauge A.W.G | 1 AWG ~ 24 AWG |
| Color | Red,Blue,Yellow,Green,Orange,Brown,White,Black,Grey |
| Package | 100 pcs/bag innber box master shipping carton |
| Delivery Time | It deponds on the order, usually with one week |
| OEM/ODM | Avaiable |
| Material | E-copper , PP , Nylon |
| Total cross-section | -40 degree centigrade to 130 degree centigrade |
| Certificate | ROHS , CE |
| Color | French , Germany, DIN |

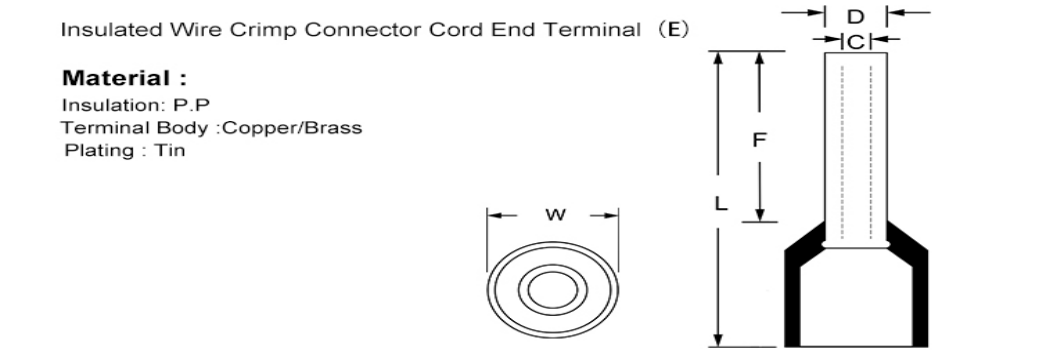

| ITEM NO. | Dimension(mm) | Cable Size | |||||
| F | L | W | DΦ | CΦ | AWG | (mm²） | |
| E0306 | 6 | 10.8 | 1.8 | 1.1 | 0.9 | 24 AWG | 0.3 mm² |
| E0308 | 8 | 12.8 | |||||
| E0310 | 10 | 14.8 | |||||
| E0506 | 6 | 12 | 2.5 | 1.3 | 1 | 22 AWG | 0.5 mm² |
| E0508 | 8 | 14 | |||||
| E0510 | 10 | 16 | |||||
| E0512 | 12 | 18 | |||||
| E7506 | 6 | 12.6 | 2.8 | 1.6 | 1.3 | 20 AWG | 0.75 mm² |
| E7508 | 8 | 14.6 | |||||
| E7510 | 10 | 16.6 | |||||
| E7512 | 12 | 18.6 | |||||
| E1006 | 6 | 12.6 | 3.2 | 1.8 | 1.5 | 18 AWG | 1.0 mm² |
| E1008 | 8 | 14.6 | |||||
| E1010 | 10 | 16.6 | |||||
| E1012 | 12 | 18.6 | |||||
| E1508 | 8 | 15.2 | 3.6 | 2 | 1.7 | 16 AWG | 1.5 mm² |
| E1510 | 10 | 17.2 | |||||
| E1512 | 12 | 19.2 | |||||
| E1518 | 18 | 25.2 | |||||
| E2508 | 8 | 15.6 | 4 | 2.6 | 2.3 | 14 AWG | 2.5 mm² |
| E2510 | 10 | 17.6 | |||||
| E2512 | 12 | 19.6 | |||||
| E2518 | 18 | 25.6 | |||||
| E4009 | 9 | 17.2 | 4.8 | 3.2 | 2.8 | 12 AWG | 4.0 mm² |
| E4012 | 12 | 20.2 | |||||
| E4018 | 18 | 26.2 | |||||
| E6010 | 10 | 18.6 | 6 | 3.9 | 3.5 | 10 AWG | 6.0 mm² |
| E6012 | 12 | 20.6 | |||||
| E6018 | 18 | 26.6 | |||||
| E10-12 | 12 | 21 | 7.4 | 4.9 | 4.5 | 7 AWG | 10.0 mm² |
| E10-18 | 18 | 27 | |||||
| E16-12 | 12 | 22 | 8.6 | 6.2 | 5.8 | # 5 | 16.0 mm² |
| E16-18 | 18 | 28 | |||||
| E25-16 | 16 | 29 | 11 | 7.9 | 7.5 | # 4 | 25.0 mm² |
| E25-22 | 22 | 35 | |||||
| E35-16 | 16 | 30 | 12.5 | 8.7 | 8.3 | # 2 | 35.0 mm² |
| E35-25 | 25 | 39 | |||||
| E50-20 | 20 | 36 | 15.1 | 10.9 | 10.3 | # 1 | 50.0 mm² |
| E50-25 | 25 | 41 | |||||
