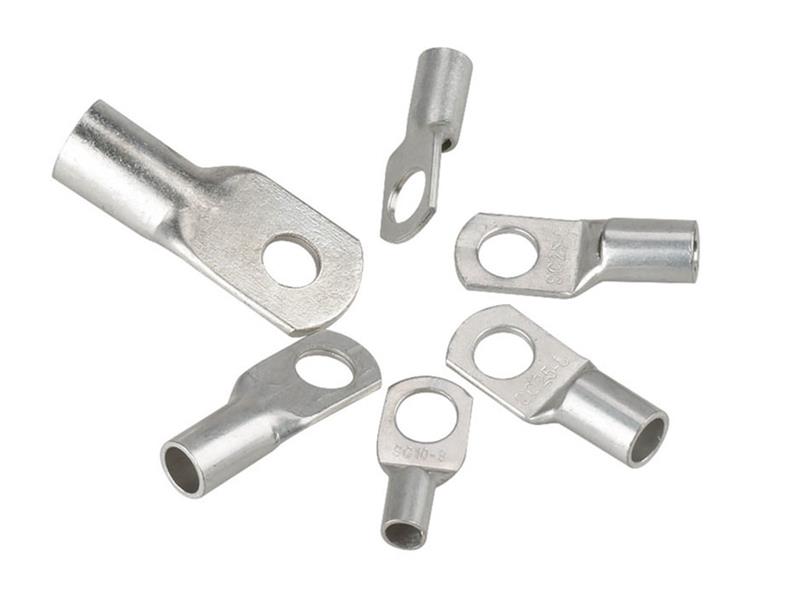

SC Type Cable Lug With Hole
Cable lugs is made copper material,are used as connection for circular line fixed on the wall.Earth clamp is used for lightning protection of building,conductor of the fastening and connection of the net work,Use the matched fittings will make the lightning system easy to install and extend the using life.

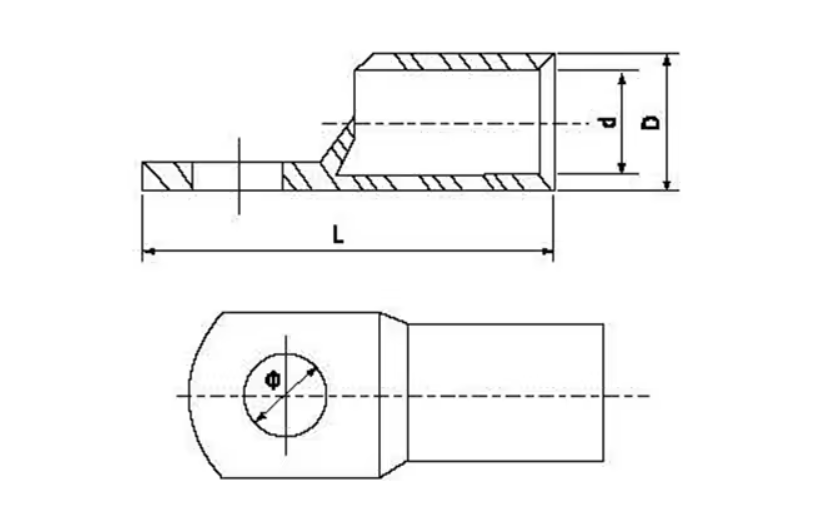

| Item No | Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGK)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGK)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGK)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGK)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGK)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGK)-16 | φ6.2,φ8.2,φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGK)-25 | φ6.2,φ8.2,φ10.5 | 9 | 7 | 34 | ||||
| SC(JGK)-35 | φ6.2,φ8.2,φ10.5,φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGK)-50 | φ8.2,φ10.5,φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGK)-70 | φ8.2,φ10.5,φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGK)-95 | φ10.5,φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGK)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
