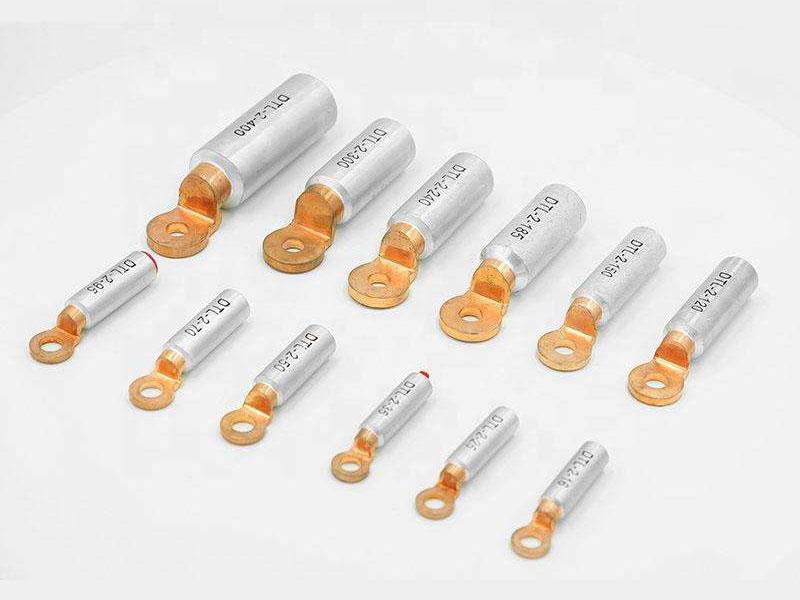

Copper-Aluminium Terminals- DTL Series
| CLASS A |
| Part Number |
Dimensions (mm) |

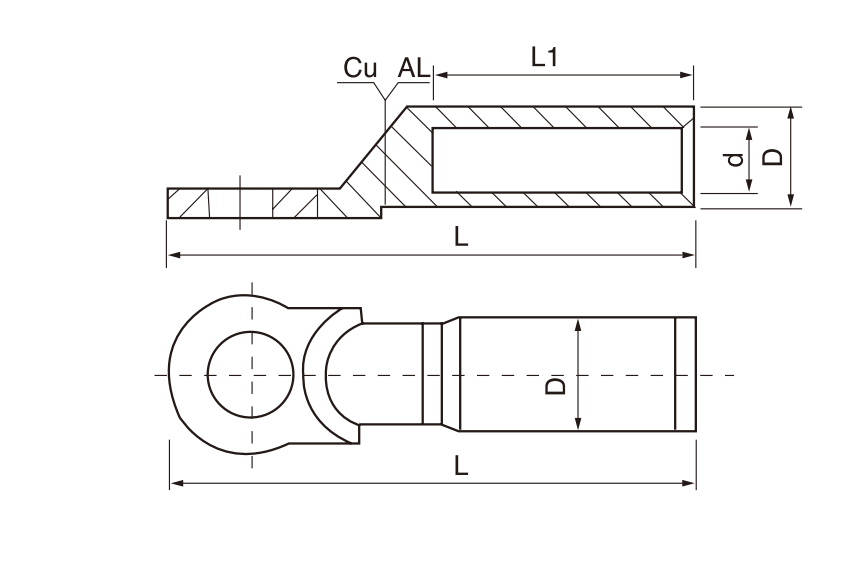

| Ø |
D |
d |
L |
Li |
B |
| DTL-16 |
8.5 |
11 |
6.2 |
70 |
32 |
16 |
| DTL-25 |
8.5 |
12 |
7.2 |
75 |
34 |
18 |
| DTL-35 |
10.5 |
14 |
8.5 |
85 |
40 |
20.5 |
| DTL-50 |
10.5 |
16 |
9.5 |
90 |
42 |
23 |
| DTL-70 |
12.5 |
18 |
11.5 |
100 |
47 |
26 |
| DTL-95 |
12.5 |
21 |
13.5 |
110 |
50 |
28 |
| DTL-120 |
14.5 |
23 |
15 |
120 |
53 |
30 |
| DTL-150 |
14.5 |
25 |
16.5 |
126 |
55 |
34 |
| DTL-185 |
16.5 |
27 |
18.5 |
133 |
58 |
37 |
| DTL-240 |
16.5 |
30 |
21 |
148 |
60 |
40 |
| DTL-300 |
21 |
34 |
23 |
165 |
65 |
50 |
| DTL-400 |
21 |
34 |
26.5 |
170 |
70 |
50 |
| DTL-500 |
21 |
42 |
29.5 |
190 |
75 |
60 |
| DTL-630 |
21 |
54 |
34 |
225 |
80 |
80 |
| DTL-800 |
21 |
60 |
38 |
270 |
90 |
100 |
| CLASS B |
| Part Number |
L |
L1 |
d |
D |
Ø |
B |
| DTL-1-10 |
62 |
30 |
6.3 |
10 |
8.5 |
13 |
| DTL-1-16 |
64 |
30 |
6.5 |
10 |
8.5 |
14.5 |
| DTL-1-25 |
68 |
32 |
7.5 |
11 |
8.5 |
16 |
| DTL-1-35 |
73 |
33 |
8.7 |
12 |
10.5 |
18 |
| DTL-1-50 |
81 |
40 |
9.7 |
14 |
10.5 |
20 |
| DTL-1-70 |
92 |
41 |
11.5 |
16 |
12.5 |
23 |
| DTL-1-95 |
98 |
43 |
13.5 |
18 |
12.5 |
26 |
| DTL-1-120 |
104 |
45 |
15 |
20 |
14.5 |
28 |
| DTL-1-150 |
112 |
48 |
16.8 |
22 |
14.5 |
30 |
| DTL-1-185 |
118 |
50 |
18.7 |
24 |
16.5 |
33 |
| DTL-1-240 |
126 |
53 |
21 |
27 |
16.5 |
36 |
| DTL-1-300 |
143 |
62 |
23 |
30 |
18 |
45 |
