Widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

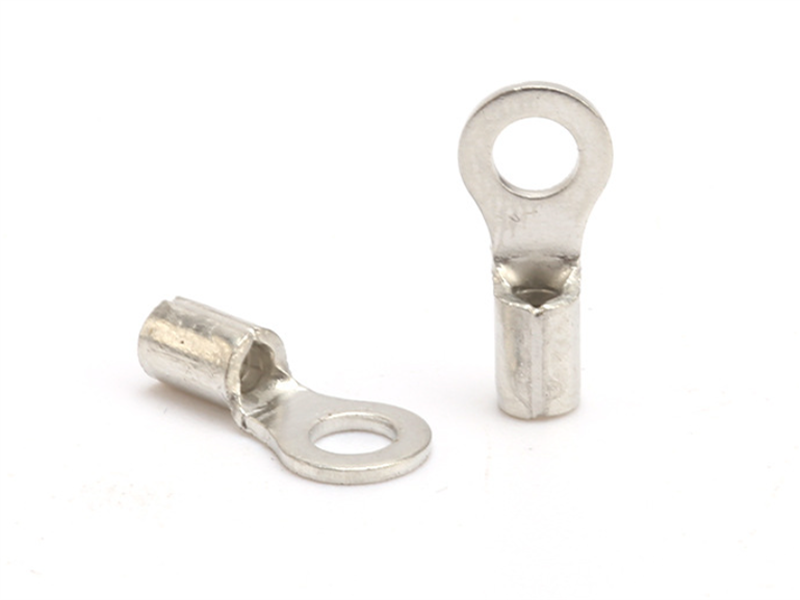

Suitable for transition connection of the circular aluminium wires, power supply cables in the distribution equipment and copper terminals of the electrical equipment.
Terminals are designed for fast, consistent installation and lasting reliability.
ITEM NO |
American Bolts number | d2Φ(mm) |
Dimension(mm | Remark | |||||

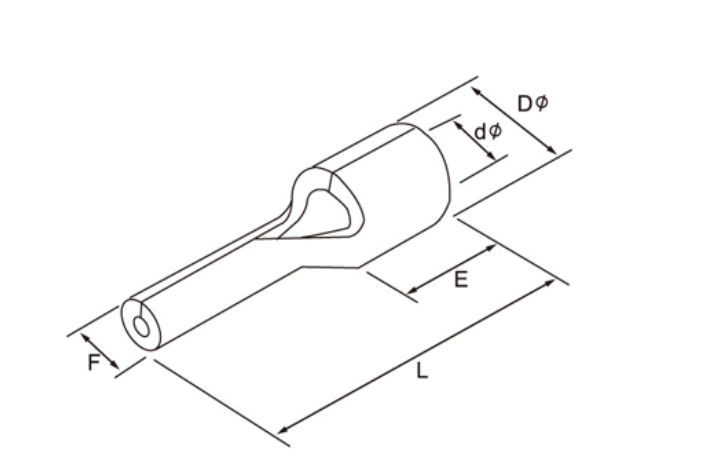

| B | L | F | H | DΦ | dΦ | ||||
| RNB1.25-3.2 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 | 1.Cross section:0.5~1.5mm² (22~16AWG) 2.Current：I max=19A 3.Material：Copper 4.Thickness：0.7mm |
| RNB1.25-3.7S | #6 | 3.7 | 5.7 | 12.6 | 4.95 | ||||
| RNB1.25-3.7M | #6 | 3.7 | 6.6 | 14.4 | 6.3 | ||||
| RNB1.25-3.7L | #8 | 3.3 | 8.0 | 15.8 | 7.0 | ||||
| RNB1.25-4S | #8 | 4.3 | 6.6 | 14.4 | 6.3 | ||||
| RNB1.25-4L | #8 | 4.3 | 8.0 | 15.8 | 7.0 | ||||
| BNB1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | ||||
| RNB1.25-5L | #10 | 5.3 | 9.8 | 18.0 | 8.5 | ||||
| RNB1.25-6S | 1/4 | 6.4 | 9.8 | 18.0 | 8.5 | ||||
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | ||||
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB1.25-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | ||||
| RNB 2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.0 | 2.3 | 1.Cross section:1.5-2.5mm² (16~14AWG) 2.Current：I max=27A 3.Material：Copper 4.Thickness：0.8mm |
| RNB 2-3.7S | #6 | 3.7 | 6.6 | 12.3 | 4.3 | ||||
| RNB 2-4S | #8 | 4.3 | 6.6 | 16.0 | 7.0 | ||||
| RNB2-4L | #8 | 4.3 | 8.5 | 16.8 | 7.75 | ||||
| RNB 2-5S | #10 | 5.3 | 8.5 | 16.8 | 7.75 | ||||
| RNB2-5L | #10 | 5.3 | 9.5 | 16.8 | 7.25 | ||||
| RNB2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | ||||
| RNB 2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | ||||
| RNB 2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB 2-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | ||||
| RNB 3.5-4 | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 | 1.Cross section:2.5~4mm² (14~12AWG) 2.Current：I max=37A 3.Material：Copper 4.Thickness：1.0mm |
| RNB 3.5-5S | #10 | 5.3 | 8.0 | 18.0 | 7.7 | ||||
| RNB3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 7.7 | ||||
| RNB 3.5-8 | 1/4 | 8.5 | 15.0 | 26.5 | 13 | ||||
| RNB3.5-10 | 1/4 | 10.5 | 15.0 | 26.5 | 13 | ||||
| RNB5.5-3.7 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.5 | 3.4 | 1.Cross section:4~6mm² (12~10AWG) 2.Current：I max=48A 3.Material：Copper 4.Thickness：1.0mm |
| RNB 5.5-4S | #8 | 4.3 | 7.2 | 15.7 | 5.9 | ||||
| RNB5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | ||||
| RNB 5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | ||||
| RNB 5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | ||||
| RNB8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 | 1.Cross section:6~10mm² 2.Current：1max=62A 3.Material：Copper 4.Thickness：1.2mm |
| RNB8-5S | #10 | 5.3 | 8.8 | 23.8 | 11.1 | ||||
| RNB 8-6S | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | ||||
| RNB8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | ||||
| RNB8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | ||||
| RNB8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15 | ||||
| RNB14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 5.8 | 1.Cross section:10~16mm² 2.Current：I max=88A 3.Material：Copper 4.Thickness：1.4mm |
| RNB14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | ||||
| RNB14-6S | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | ||||
| RNB14-8 | 5/16 | 8.4 | 16.0 | 32.8 | 14.5 14.5 |
||||
| RNB14-10 | 3/8 | 10.5 | 16.0 | 32.8 | |||||
| RNB14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | ||||
| RNB 22-6S | /4 | 6.4 | 12.2 | 33.2 | 14.5 13.5 |
12.0 | 11.5 | 7.7 | 1 . Cross section: 1 6 ~ 2 5 mm ² 2 . Current：I max=115A 3.Material：Copper 4 . Thickness：1 . 7mm |
| RNB 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | |||||
| RNB 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | ||||
| RNB 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | ||||
| RNB 38-6 | 1/4 | 6.4 | 15.3 | 39.0 | 18.3 | 14.0 | 13.3 | 9.4 | 1 . Cross section: 3 5 ~ 5 0 mm 2 2 . Current：I max=160A 3.Material：Copper 4 . Thickness：1 . 8mm |
| RNB 38-8S | 5/16 | 8.4 | 15.3 | 39.0 | 18.3 | ||||
| RNB38-10S | 3/8 | 10.5 | 15.3 | 39.0 | 18.3 | ||||
| RNB 38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 | ||||
| RNB60-8 | 5/16 | 8.4 | 22.0 | 49.7 | 20.7 | 18.0 | 15.4 | 11.4 | 1.Cross section:50-70mm² 2. Current：I max=215A 3.Material：Copper 4.Thickness：1.8mm |
| RNB60-10 | 3/8 | 10.5 | |||||||
