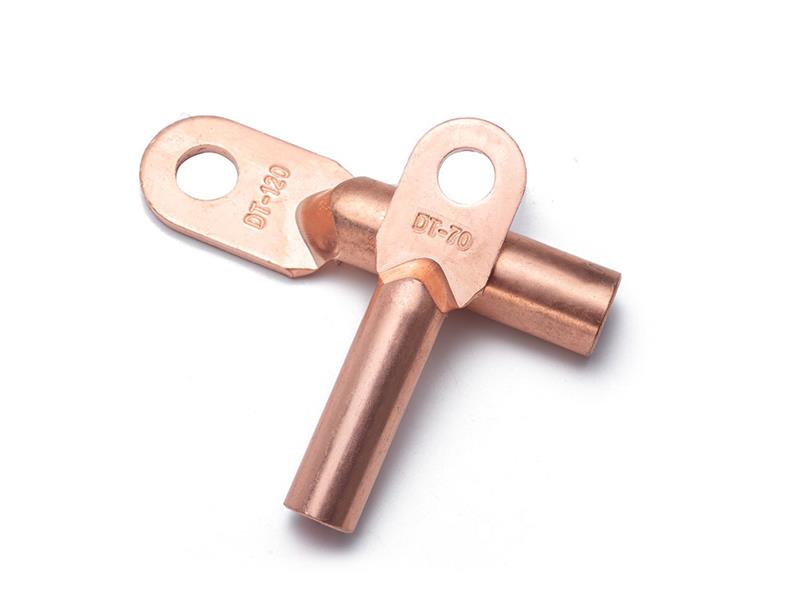

Copper Connecting Terminals-DT(G) Series

Size Cross Section
(mm²)

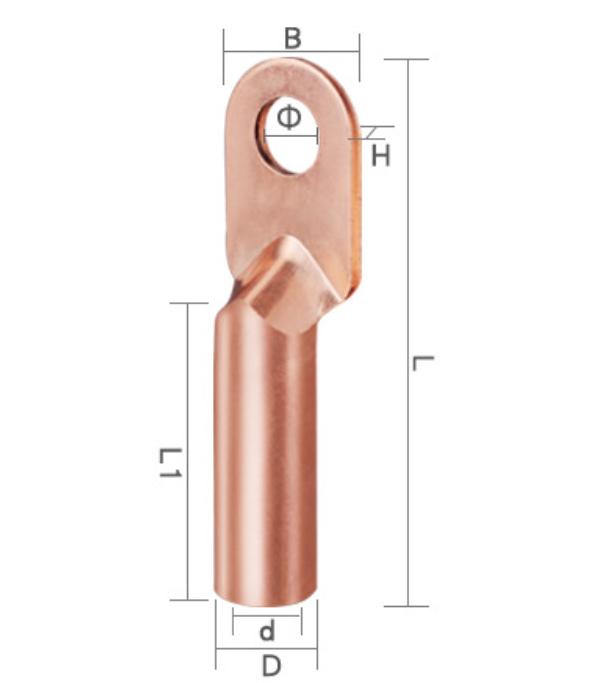

Dimensions(mm)
φ D d L L1 B H
  DT-10 10 8.5 8 5.5 58 28 14.5 1.7
  DT-16 16 8.5 9 6.5 60 30 14.5 2
  DT-25 25 8.5 10 7.5 65 31 16 2.3
  DT-35 35 10.5 11 8.7 69 32 18 2.6
  DT-50 50 10.5 13 10 75 36 20 3
  DT-70 70 12.5 15 12 83 40 23 3
  DT-95 95 12.5 17 13.6 91 41.5 26 3.5
  DT-120 120 14.5 19 15.5 96 45 28 3.5
  DT-150 150 14.5 21 16.5 100 46 30 3.8
  DT-185 185 17 23 17 110 49 32 4.3
  DT-240 240 17 26 17 116 53 35 4.6
  DT-300 300 21 29 21 138 61 42 5.5
