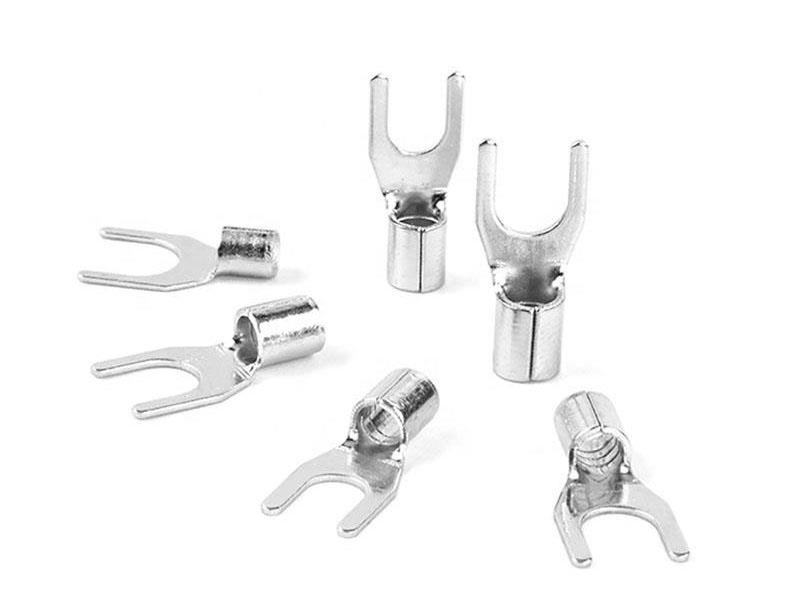

Non-insulated Spade Terminals-SNB Series

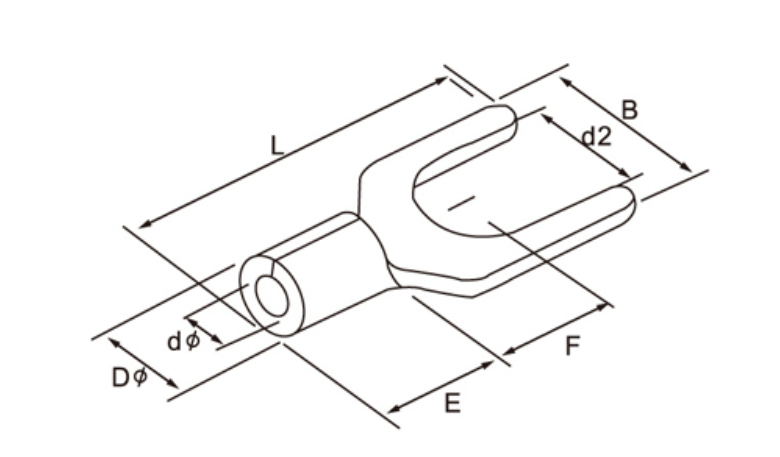

Type American Bolts number d2Φ(mm) B(mm) L(mm) F(mm) E(mm) DΦ(mm) dΦ(mm) Remarkes
SNB 1.25-3 #4 3.2 5.7 16 6.5 4.8 3.4 1.7 Cable size:0.5~1.5mm²(A.W.G.22-16)   Max current:Imax=19A Material: purple copper Thickness:0.7mm
SNBS1.25-3.5 #6 3.7 5.7 16 6.5
SNBL1.25-3.5 #6 3.7 6.4 15.5 6.5
SNBS1.25-4 #8 4.3 6.4 15.5 6.5
SNBM1.25-4 #8 4.3 7.2 15.5 6.5
SNBL1.25-4 #8 4.3 8.1 15.5 6.5
SNBS1.25-5 #10 5.3 8.1 15.5 6.5
SNBL1.25-5 #10 5.3 9.5 15.5 6.5
SNBS1.25-6 1/4 6.4 9.5 15.5 6.5
SNBL1.25-6 1/4 6.4 12 22 11
SNB2-3 #4 3.2 5.7 16 6.5 4.8 4.1 2.3 Cable size:1.5~2.5mm²(A.W.G.16-14)   Max current:Imax=27A Material: purple copper Thickness:0.8mm
SNBS2-3.5 #6 3.7 5.7 16 6.5
SNBL2-3.5 #6 3.7 6 16 6.5
SNBS2-4 #8 4.3 6.4 16 6.5
SNBM2-4 #8 4.3 7.2 16 6.5
SNBL2-4 #8 4.3 8.1 16 6.5
SNBS2-5 #10 5.3 8.1 16 6.5
SNBL2-5 #10 5.3 9.5 16 6.5
SNBS2-6 1/4 6.4 9.5 16 6.5
SNBL2-6 1/4 8.4 12 22 11
SNB3.5-3 #4 3.2 5.7 18.3 7 6.5 5 3 Cable size:2.5~4mm²(A.W.G.14-12)   Max current:Imax=37A Material: purple copper Thickness:1.0mm
SNB3.5-4 #8 4.3 8 18.3 7
SNB3.5-5 #10 5.3 8 18.3 7
SNB3.5-6 1/4 6.4 12 21.5 10.5
SNB5.5-3.5 #6 3.7 8.3 19.5 7.2 6.8 5.6 3.4 Cable size:4~6mm²(A.W.G.12-10)   Max current:Imax=48A Material: purple copper Thickness:1.0mm
SNBS5.5-4 #8 4.3 8.3 19.5 7.2
SNBL5.5-4 #8 4.3 9 19.5 7.5
SNB5.5-5 #10 5.3 9 19.5 7.5
SNBS5.5-6 1/4 6.4 9 19.5 7.2
SNBL5.5-6 1/4 6.4 12 25.5 12
SNB5.5-8 5/16 8.4 14 24.5 11.5
SNB8-4 #8 4.3 8.7 23 6 8.5 7.2 4.5 Material: purple copper Thickness:1.2mm, 1.4mm, 1.7mm
SNB8-5 #10 5.3 12 24.5 5.7 8.5 7.2 4.5
SNB8-6 1/4 6.4 12 24.5 5.7 8.5 7.2 4.5
SNB8-8 5/16 8.4 14.5 28 8.3 8.5 7.2 4.5
SNB14-6 1/4 6.4 12 28 7.5 10.5 9 5.8
SNB14-8 5/16 8.4 14 28 7.5 10.5 9 5.8
SNB22-8 5/16 8.4 14 34.5 9 12 11.5 7.7
