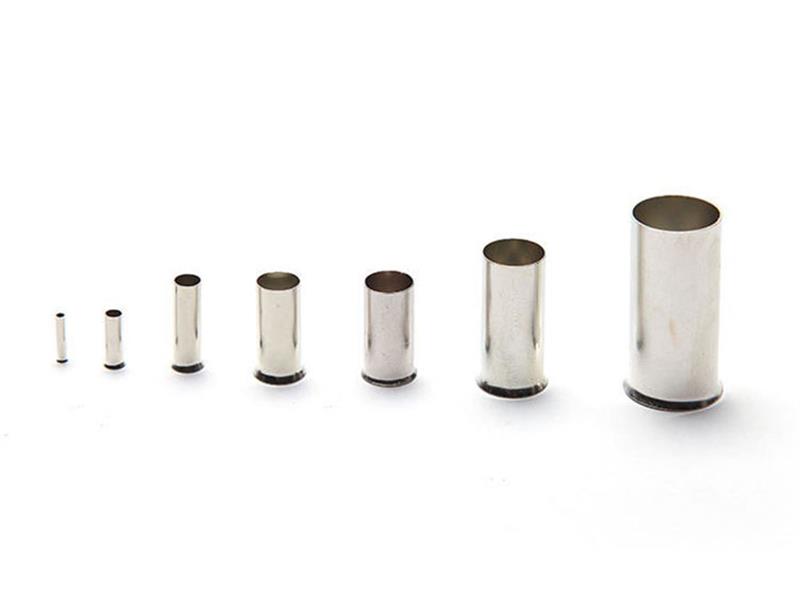

Non-Insulated Cord End Terminals-EN Series
| ITEM NO. |

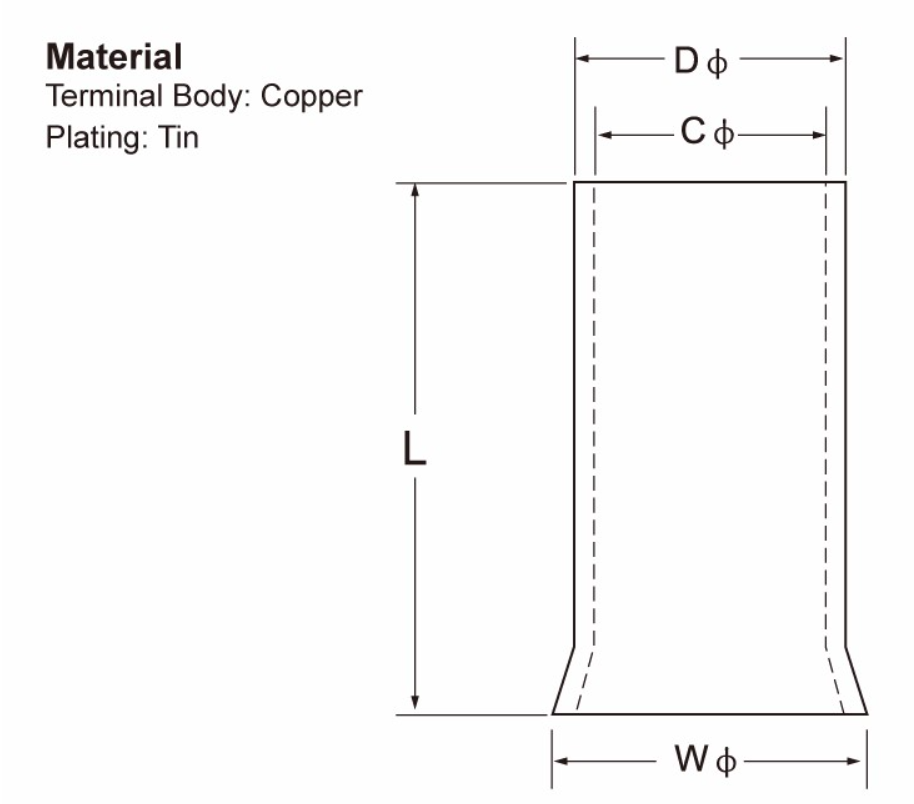

Dimension(mm) |
Condutor Section |
| L |
DΦ |
CΦ |
W |
A.W.G |
mm2 |
| EN0306 |
6 |
1.1 |
0.8 |
1.5 |
24 |
0.3 |
| EN0308 |
8 |
| EN0505 |
5 |
1.3 |
1 |
1.7 |
22 |
0.5 |
| EN0506 |
6 |
| EN0508 |
8 |
| EN0510 |
10 |
| EN0512 |
12 |
| EN7506 |
6 |
1.5 |
1.2 |
1.9 |
20 |
0.75 |
| EN7508 |
8 |
| EN7510 |
10 |
| EN7512 |
12 |
| EN7515 |
15 |
| EN1006 |
6 |
1.7 |
1.4 |
2.2 |
18 |
1 |
| EN1008 |
8 |
| EN1010 |
10 |
| EN1012 |
12 |
| EN1015 |
15 |
| EN1018 |
18 |
| EN1507 |
7 |
2 |
1.7 |
2.5 |
16 |
1.5 |
| EN1508 |
8 |
| EN1510 |
10 |
| EN1512 |
12 |
| EN1515 |
15 |
| EN1518 |
18 |
| EN2506 |
6 |
2.6 |
2.3 |
3.3 |
14 |
2.5 |
| EN2507 |
7 |
| EN2508 |
8 |
| EN2510 |
10 |
| EN2512 |
12 |
| EN2515 |
15 |
| EN2518 |
18 |
| EN4009 |
9 |
3.2 |
2.8 |
3.9 |
12 |
4 |
| EN4010 |
10 |
| EN4012 |
12 |
| EN4015 |
15 |
| EN4018 |
18 |
