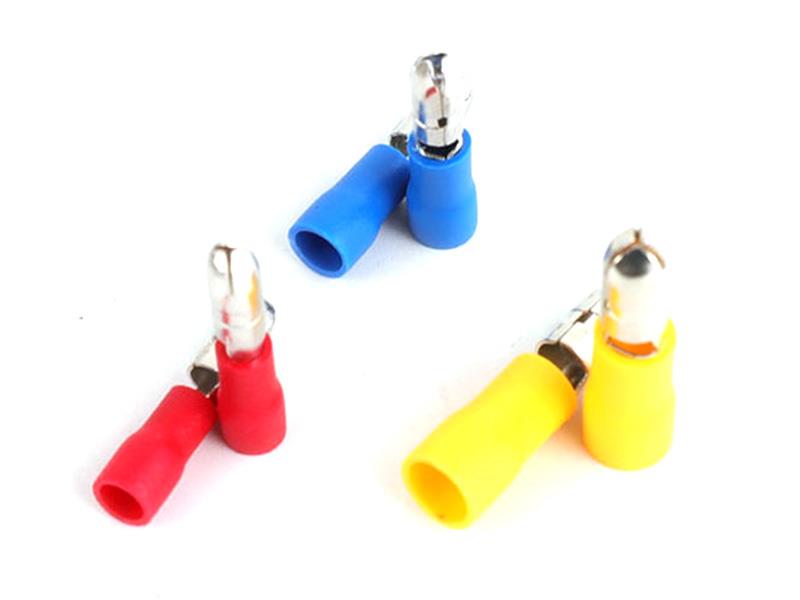

Bullet And Socket Connectors Male Type-MPD Series
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
b |
F |
D |
H |
L |
| MPD2-156 |
0.4 |
4 |
10.6 |
2.3 |
12.6 |
21.2 |
Blue |
| MPD2-195 |
0.4 |
5 |
10.6 |
2.3 |
10 |
21.2 |
| Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=24A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
b |
F |
D |
H |
L |
| MPD5.5-195 |
0.4 |
5 |
12 |
3.4 |
13.5 |
25.5 |
Yellow |
