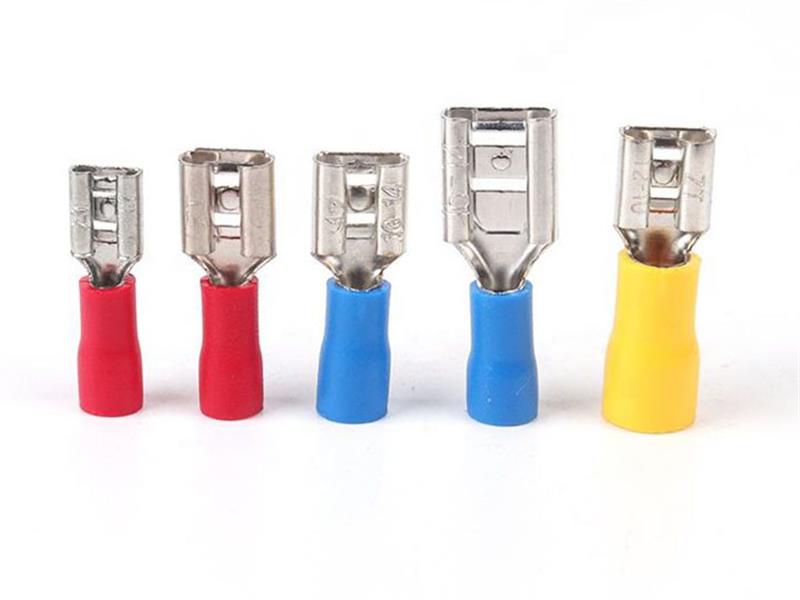

Female Disconnect Terminals- FDD Series
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass |
| Item No. |
Name Tab |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
(mm) |

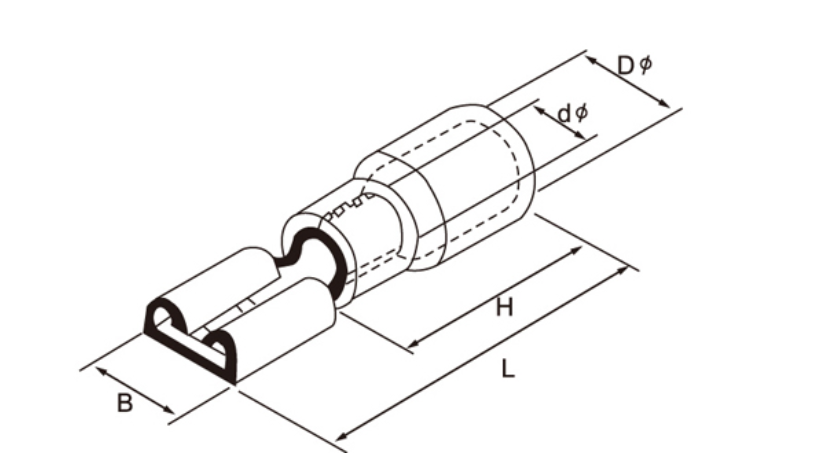

B |
d |
D |
L |
H |
| FDD1.25-110(5) |
0.5×2.8 |
0.4 |
3.8 |
1.7 |
3.8 |
19 |
10 |
Red |
| FDD1.25-110(8) |
0.8×2.8 |
0.4 |
3.8 |
1.7 |
3.8 |
19 |
10 |
| FDD1.25-187(5) |
0.5×4.75 |
0.4 |
5.6 |
1.7 |
3.8 |
19 |
10 |
| FDD1.25-187(8) |
0.8×4.75 |
0.4 |
5.6 |
1.7 |
3.8 |
19 |
10 |
| FDD1.25-205 |
0.5×5.2 |
0.4 |
6.5 |
1.7 |
3.8 |
20 |
10 |
| FDD1.25-250 |
0.8×6.35 |
0.4 |
7.4 |
1.7 |
3.8 |
21 |
10 |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass |
| Item No. |
Name Tab |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
(mm) |
B |
d |
D |
L |
H |
| FDD2-110(5) |
0.5×2.8 |
0.4 |
3.8 |
1.7 |
3.8 |
18.7 |
10.6 |
Blue |
| FDD2-110(8) |
0.8×2.8 |
0.4 |
3.8 |
1.7 |
3.8 |
18.7 |
| FDD2-187(5) |
0.5×4.75 |
0.4 |
5.6 |
1.7 |
3.8 |
18.7 |
| FDD2-187(8) |
0.8×4.75 |
0.4 |
5.6 |
1.7 |
3.8 |
18.7 |
| FDD2-205 |
0.5×5.2 |
0.4 |
6.5 |
1.7 |
3.8 |
19.7 |
| FDD2-250 |
0.8×6.35 |
0.4 |
7.4 |
1.7 |
3.8 |
21.4 |
| FDD2-312 |
0.8×8.0 |
0.4 |
8.9 |
1.7 |
3.8 |
24.1 |
| Cable size:4.0~6.0mm²(A.W.G.12~10) Max current:Imax=24A Material: brass |
| Item No. |
Name Tab |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
(mm) |
B |
d |
D |
L |
H |
| FDD5.5-250 |
0.8×6.35 |
0.4 |
7.4 |
5.7 |
3.4 |
24.5 |
13 |
Yellow |
| FDD5.5-375 |
1.2×9.4 |
0.5 |
10.9 |
5.7 |
3.4 |
29.3 |
13.5 |
