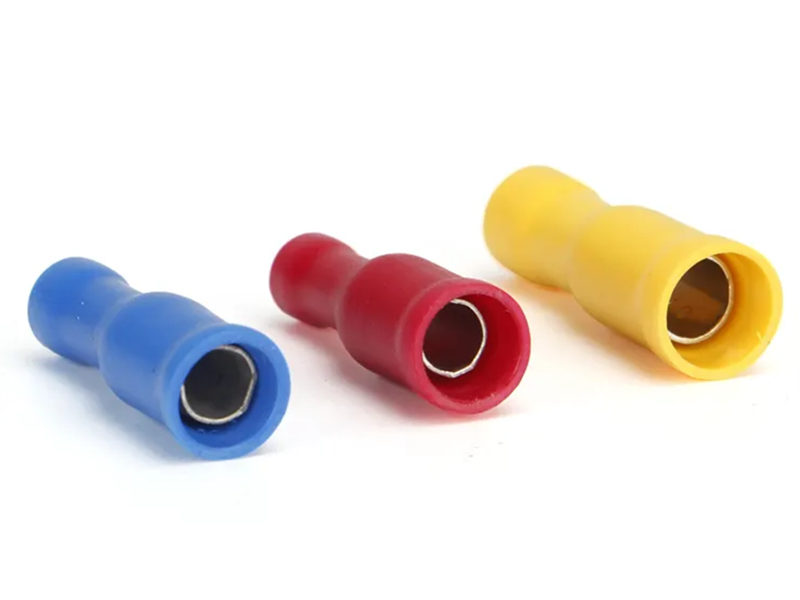

| Product Name | E series Insulated Wire Crimp Connector Cord End Terminal |
| Material | Terminal Body：Copper/Brass Surface :Tin Plating Insulation:P.P |
| Wire Gauge A.W.G | 1 AWG ~ 24 AWG |
| Color | Red,Blue,Yellow,Green,Orange,Brown,White,Black,Grey |
| Package | 100 pcs/bag innber box master shipping carton |
| Delivery Time | It deponds on the order, usually with one week |
| OEM/ODM | Avaiable |
| Material | E-copper , PP , Nylon |
| Total cross-section | -40 degree centigrade to 130 degree centigrade |
| Certificate | ROHS , CE |
| Color | French , Germany, DIN |
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass | ||||||||

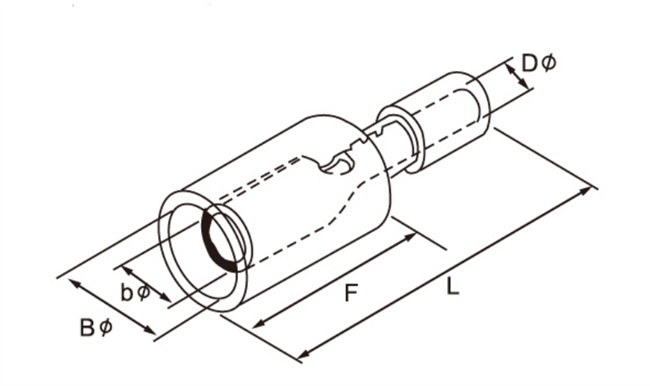

| Item No. | Thickness of material | Dimension (mm) | Color | |||||
| (mm) | b | B | D | F | L | |||
| FRD1.25-156 | 0.4 | 4 | 6.3 | 1.7 | 13 | 24.5 | Red | |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass | ||||||||
| Item No. | Thickness of material | Dimension (mm) | Color | |||||
| (mm) | b | B | D | F | L | |||
| FRD2-156 | 0.4 | 4 | 6.3 | 2.3 | 14 | 24.5 | Blue | |
| FRD2-195 | 0.4 | 5 | 7 | 2.3 | 14 | 25.5 | ||
| Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=24A Material: brass | ||||||||
| Item No. | Thickness of material | Dimension (mm) | Color | |||||
| (mm) | b | B | D | F | L | |||
| FRD5.5-195 | 0.4 | 5 | 7 | 3.4 | 14 | 24.5 | Yellow | |
