Butt and Parallel Connectors-BV Series

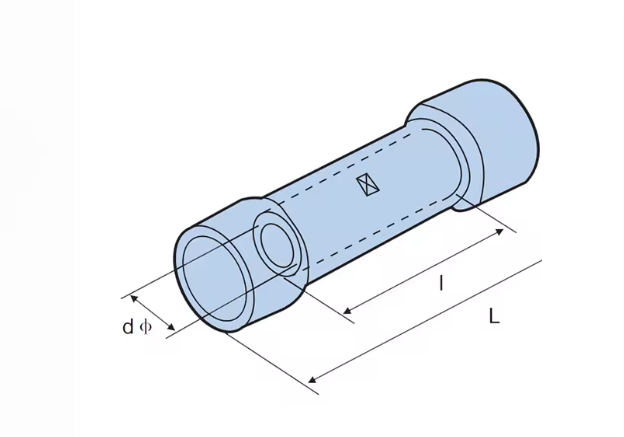

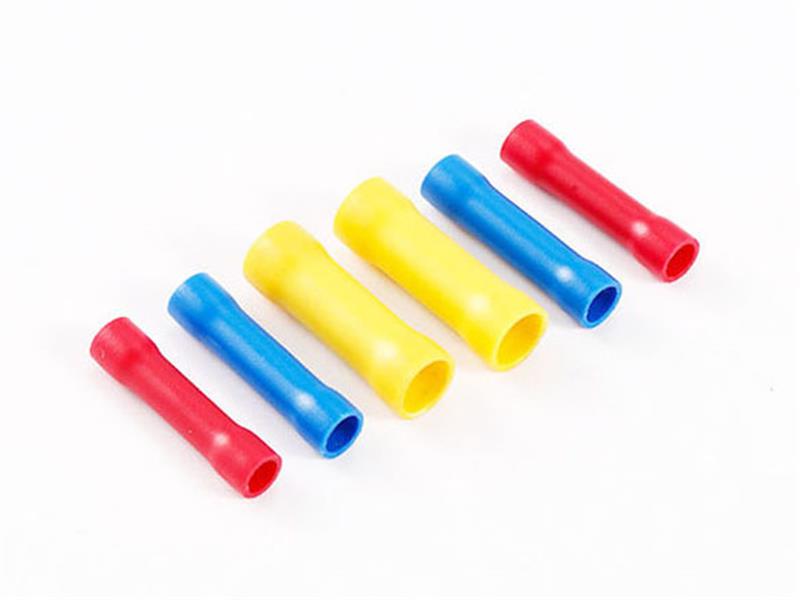

| PVC-Insulated Butt Splice Connectot |
| TEM NO |
Cable size |
Dimension (mm) |
lmax |
| A.W.G |
mm² |
I |
d |
L |
A |
| BV 1.25 |
22-16 |
0.5-1.5 |
15 |
1.7 |
26 |
19 |
| BV 2 |
16-14 |
1.5-2.5 |
15 |
2.3 |
26 |
27 |
| BV 5.5 |
12-10 |
4-6 |
15 |
3.4 |
26 |
48 |
| BV 8 |
8 |
6-10 |
21 |
4.5 |
32 |
62 |
| BV 14 |
6 |
10-16 |
26 |
5.8 |
42 |
88 |
| BV 22 |
4 |
16-25 |
29 |
7.7 |
50 |
115 |
| BV 38 |
2 |
35-50 |
32 |
9.4 |
55 |
160 |
