| Max voltage: 105°C 600V Material: brass Insulating material: nylon Thickness: 0.4mm |
|||||||||

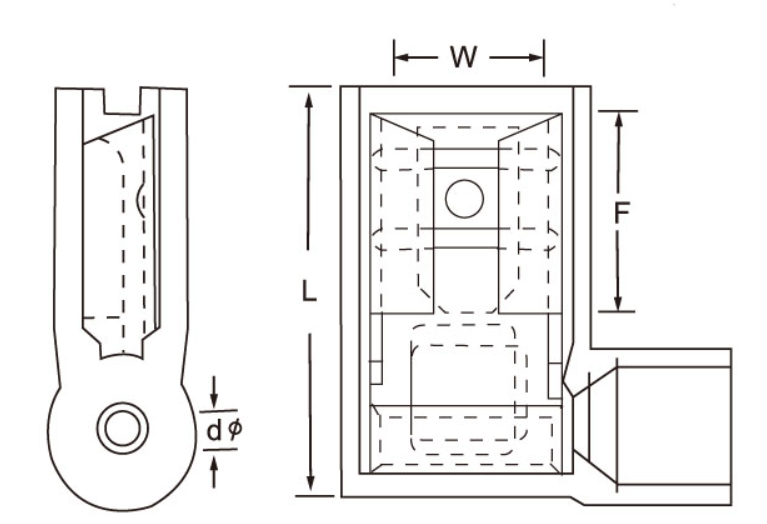

| No. | Item No. | Connecting spec. | Dimension(mm) | Cable size | |||||
| W | F | L | D | (mm²) | |||||
| 1 | FLDNY1.25-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 22~18 A.W.G. | ||
| 0.5~1.5mm² | |||||||||
| 2 | FLDNY2-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 16~14 A.W.G. | ||
| 1.5~2.5mm² | |||||||||
| 3 | FLDNY5.5-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 12~10 A.W.G. | ||
| 4~6mm² | |||||||||
