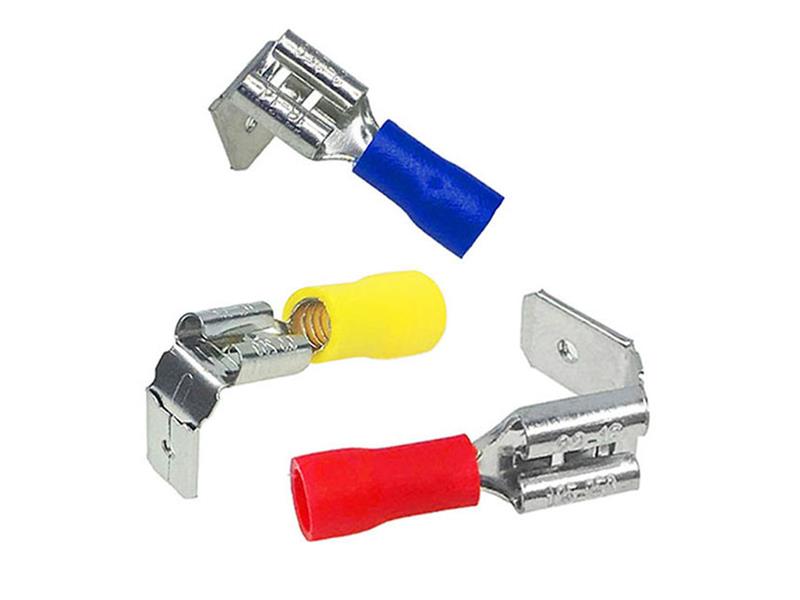

Piggy Back Female Disconnect Terminals-PBDD Series
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass |
| Item No. |
Thickness of material |

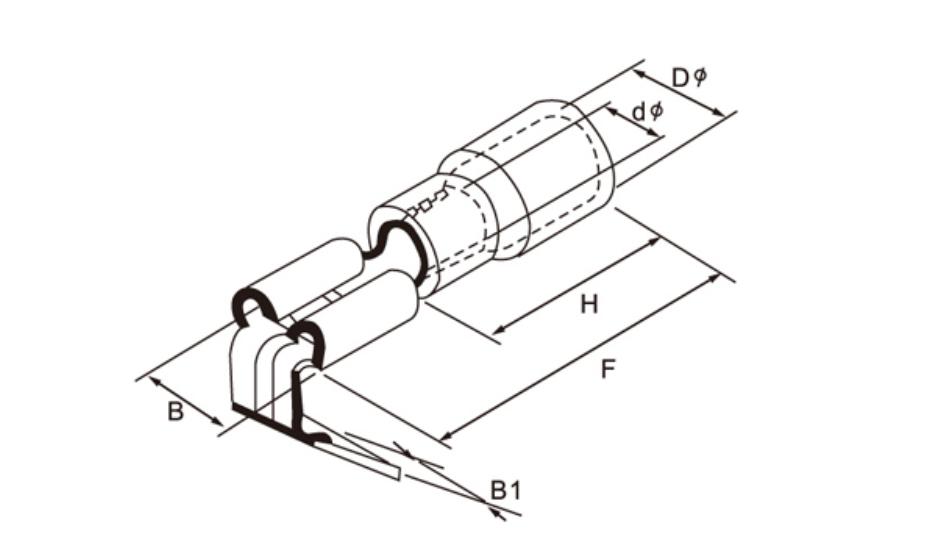

Dimension(mm) |
| (mm) |
B |
B1 |
H |
D |
d |
L |
| PBDD1.25-250 |
0.8×6.35 |
7.4 |
6.3 |
10.6 |
3.8 |
1.7 |
21 |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
| (mm) |
B |
B1 |
H |
D |
d |
L |
| PBDD2-250 |
0.8×6.35 |
7.7 |
6.3 |
10.6 |
4.3 |
2.3 |
21 |
| Cable size:4.0~6.0mm²(A.W.G.12~10) Max current:Imax=24A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
| (mm) |
B |
B1 |
H |
D |
d |
L |
| PBDD5.5-250 |
0.8×6.35 |
7.7 |
6.3 |
13.5 |
5.7 |
3.4 |
23.5 |
