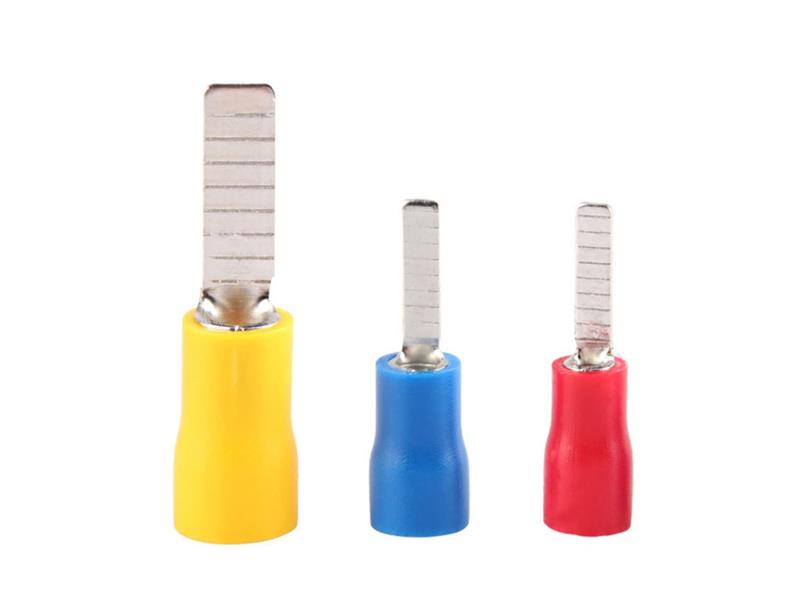

Pre-insulated Blade Terminals- DBV Series
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=19A Material: purple copper Thickness:0.7mm |
| Item No. |

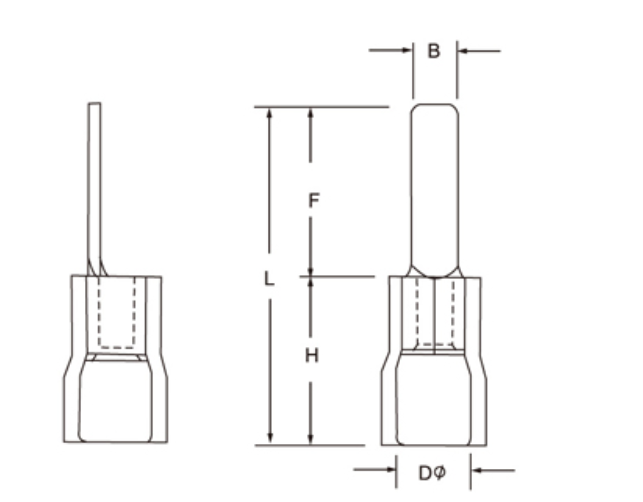

Dimension |
Color |
| B(mm) |
L(mm) |
Fmm) |
H(mm) |
D (mm) |
| DBV1.25-10 |
2.3 |
20.6 |
10 |
10.6 |
4.3 |
Red |
| DBV1.25-11 |
2.3 |
21.6 |
11 |
| DBV1.25-14 |
2.3 |
24.6 |
14 |
| DBV1.25-18 |
2.3 |
28.6 |
18 |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=27A Material: purple copper Thickness:0.8mm |
| Item No. |
Dimension |
Color |
| B(mm) |
L(mm) |
Fmm) |
H(mm) |
D (mm) |
| DBV2-10 |
2.55 |
20.5 |
9.9 |
10.6 |
4.9 |
Blue |
| DBV2-14 |
2.55 |
24.6 |
14 |
| DBV2-18 |
2.55 |
28.6 |
18 |
| Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=48A Material: purple copper Thickness:1.0mm |
| Item No. |
Dimension |
Color |
| B(mm) |
L(mm) |
Fmm) |
H(mm) |
D (mm) |
| DBV5.5-10 |
2.8 |
23.3 |
9.8 |
13.5 |
5.6 |
Yellow |
| DBV5.5-14 |
4.5 |
27.3 |
13.8 |
| DBV5.5-18 |
4.5 |
31.3 |
17.8 |
