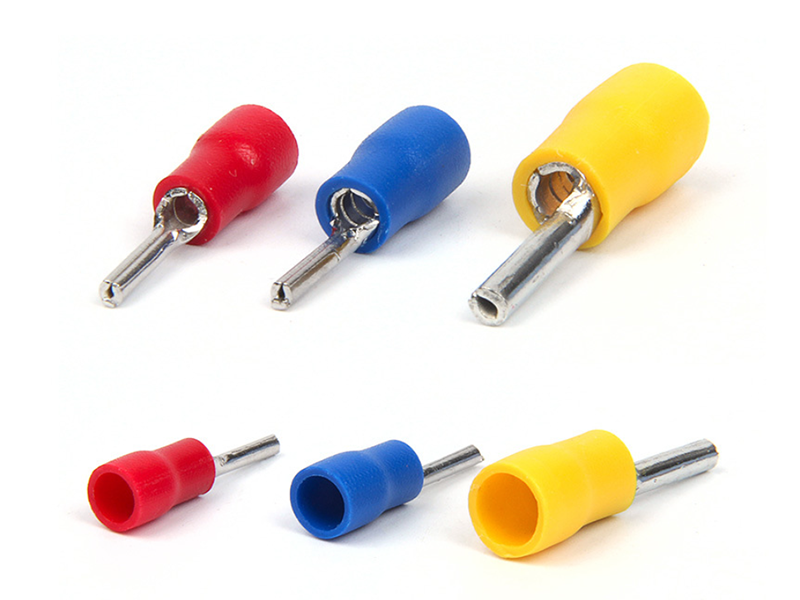

Pre-insulated Pin Terminals-PTV Series
| Item No. |

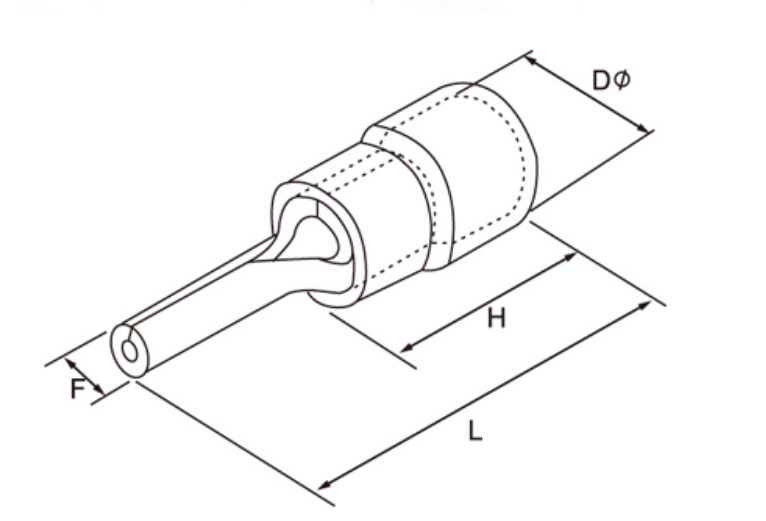

Dimension |
Color |
Remarks |
| F(mm) |
L(mm) |
H(mm) |
D (mm) |
| PTV1.25-9 |
1.9 |
19 |
10.6 |
4.3 |
Red |
Cable size:0.5-1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.75mm |
| PTV1.25-10 |
1.9 |
20.6 |
| PTV1.25-12 |
1.9 |
22.6 |
| PTV1.25-13 |
1.9 |
23.6 |
| PTV2-9 |
1.9 |
19 |
10.6 |
4.9 |
Blue |
Cable size:1.5-2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm |
| PTV2-10 |
1.9 |
20.6 |
| PTV2-12 |
1.9 |
22.6 |
| PTV2-13 |
1.9 |
23.6 |
| PTV2-18 |
1.9 |
28.6 |
| PTV3.5-10 |
2.8 |
20.5 |
13 |
6.2 |
Black |
Cable size:2.5-4mm²(A.W.G.14-12) Max current:Imax=36A Material: purple copper Thickness:1.0mm |
| PTV3.5-13 |
2.8 |
25.5 |
| PTV5.5-13 |
2.8 |
26 |
13.5 |
6.7 |
Yellow |
Cable size:4-6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm |
