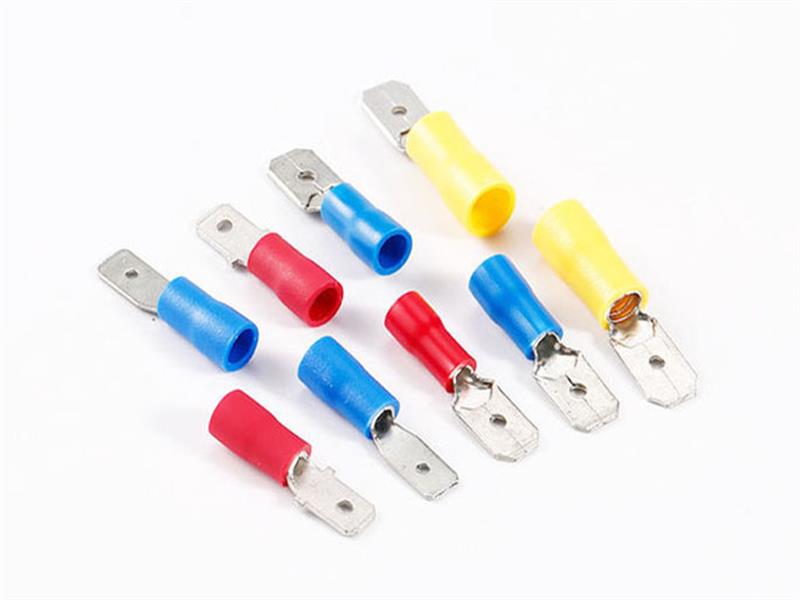

Male Disconnect Terminals-MDD Series
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass |
| Item No. |
Name Tab |
Thickness of material |

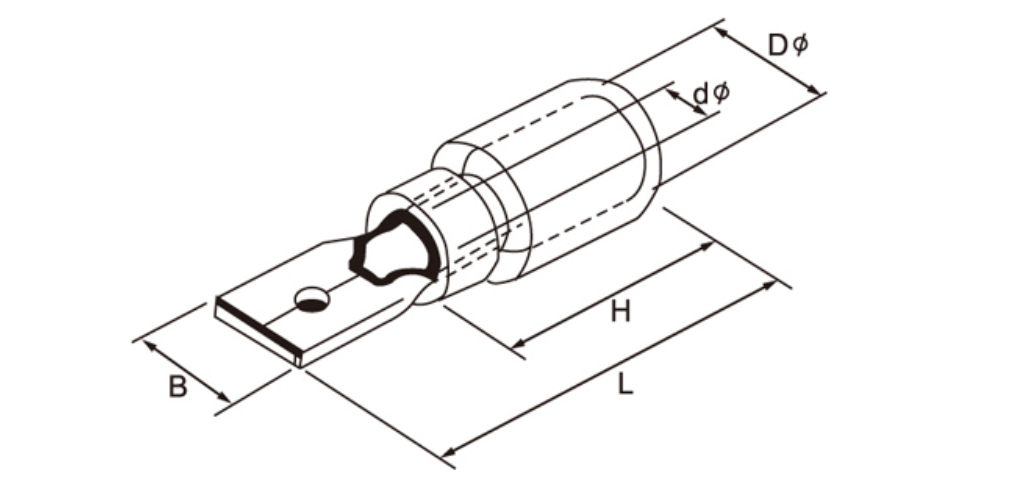

Dimension(mm) |
Color |
| (mm) |
(mm) |
B |
d |
D |
L |
H |
| MDD1.25-110(5) |
0.5×2.8 |
0.5 |
2.8 |
1.7 |
4.3 |
19 |
10.6 |
Red |
| MDD1.25-110(8) |
0.8×2.8 |
0.8 |
2.8 |
1.7 |
4.3 |
19 |
| MDD1.25-187(5) |
0.5×4.75 |
0.5 |
4.75 |
1.7 |
4.3 |
19 |
| MDD1.25-187(8) |
0.8×4.75 |
0.8 |
4.75 |
1.7 |
4.3 |
19 |
| MDD1.25-250 |
0.8×6.35 |
0.4×2 |
6.35 |
1.7 |
4.3 |
21 |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass |
| Item No. |
Name Tab |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
(mm) |
B |
d |
D |
L |
H |
| MDD2-187(5) |
0.5×4.75 |
0.5 |
4.75 |
2.3 |
4.3 |
20 |
10.6 |
Blue |
| MDD2-187(8) |
0.8×4.75 |
0.8 |
4.75 |
2.3 |
4.3 |
20 |
| MDD2-250 |
0.8×6.35 |
0.4×2 |
6.35 |
2.3 |
4.3 |
21.6 |
| Cable size:4.0~6.0mm²(A.W.G.12~10) Max current:Imax=24A Material: brass |
| Item No. |
Name Tab |
Thickness of material |
Dimension(mm) |
Color |
| (mm) |
(mm) |
B |
d |
D |
L |
H |
| MDD5.5-250 |
0.8×6.35 |
0.4×2 |
6.35 |
3.4 |
5.7 |
25.5 |
13.5 |
Yellow |
