| Terminal Material: | Copper |
| Plating: | Electro tin plated |
| Insulation Material: | PVC |
| Type: | RV |
| Feature: | Fixable, good elasticity, to bear collosion, unable broken,high durability |
| Certificate: | RoHS, CE |
| Usage: | Wire connection |
| Application: | Electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation,railway,transportation, automobile manufacturing,household appliances,electrical installations,computers etc. |
| Feature: | 1.Fireproof, insulate, easy to use 2.Made by high purity copper |

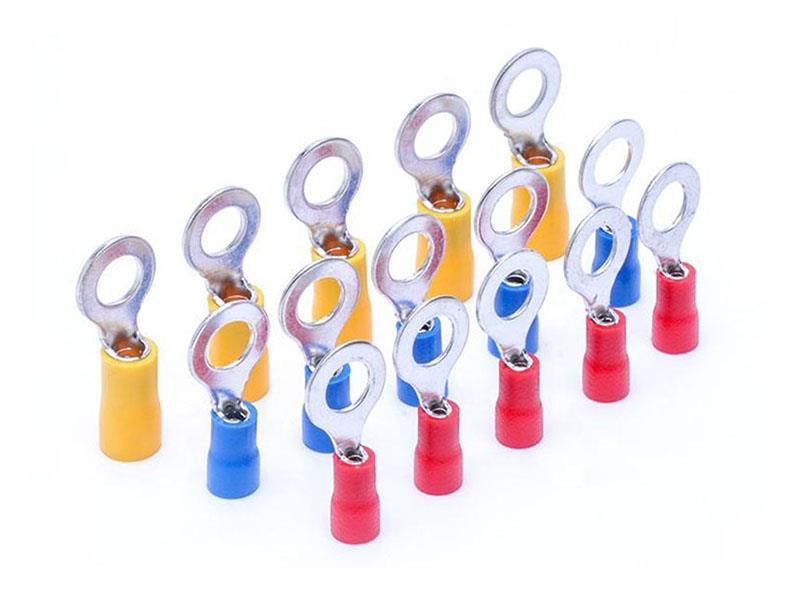

| Color: | Red, blue, black, yellow |
| Function: | Electrically conductive and connection |
| Working Temperature: | -40℃-105 ℃ |
| Delivery time: | 3-15 days (Depend on your order quantity) after confirm order. |
| Cable Size:0.5-1.5mm2(A.W.G22-16) Max Current:Imax=19A Material:Copper Material Thickness:0.75mm | ||||||||

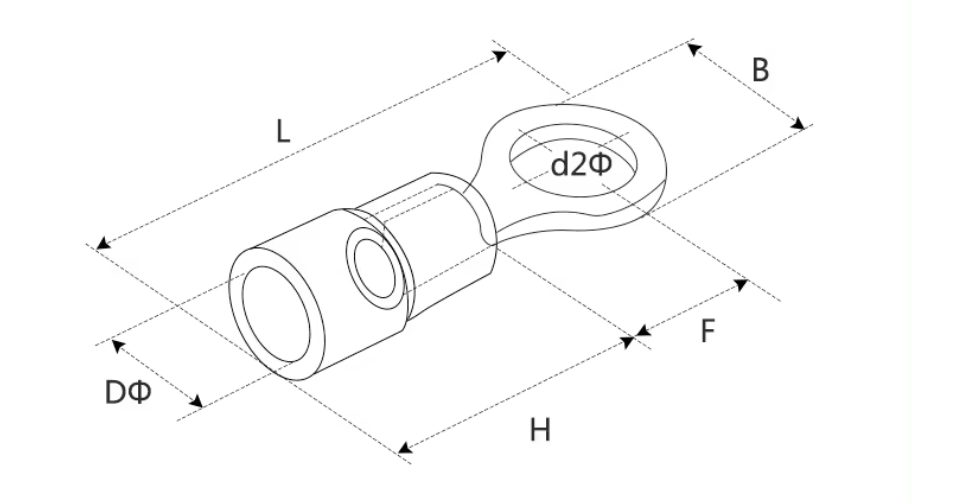

| Item No | USA | Screw Dia.d2∅(mm) | Dimension(mm) | Color | ||||
| Screw | B | L | F | H | D∅ | |||
| RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-3.5 | #6 | 4.3 | 8 | 21.5 | 7 | |||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | |||
| RV1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | |||
| RVL1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | |||
| RV1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV1.25-12 | 1/2 | 13 | 19.2 | 36 | 16.5 | |||
| Cable Size:1.5-2.5mm2(A.W.G16-14) Max Current:Imax=27A Material:Copper Material Thickness:0.8mm | ||||||||
| RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
| RVM2-3.5 | #6 | 3.7 | 8.5 | 21 | 7 | |||
| RVL2-3.5 | #6 | 3.7 | 6.6 | 22.5 | 7.75 | |||
| RVS2-4 | #8 | 4.3 | 8.5 | 21 | 7 | |||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.4 | 12 | 27.6 | 11 | |||
| RV2-8 | 5/16 | 8.4 | 12 | 27.6 | 11 | |||
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV2-12 | 1/2 | 13 | 19.2 | 35.4 | 16.5 | |||
| Cable Size:2.5-4mm2(A.W.G14-12) Max Current:Imax=37A Material:Copper Material Thickness:1.0mm | ||||||||
| RV3.5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 13.0 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8 | 24.5 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3 | 12 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4 | 12 | 27.9 | 7.7 | |||
| Cable Size:4-6mm2(A.W.G12-10) Max Current:Imax=48A Material:Copper Material Thickness:1.0mm | ||||||||
| RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Yellow |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
| RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1/4 | 6.4 | 12 | 31.5 | 13 | |||
| RV5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | |||
| RV5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | |||
| RV5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 | |||
