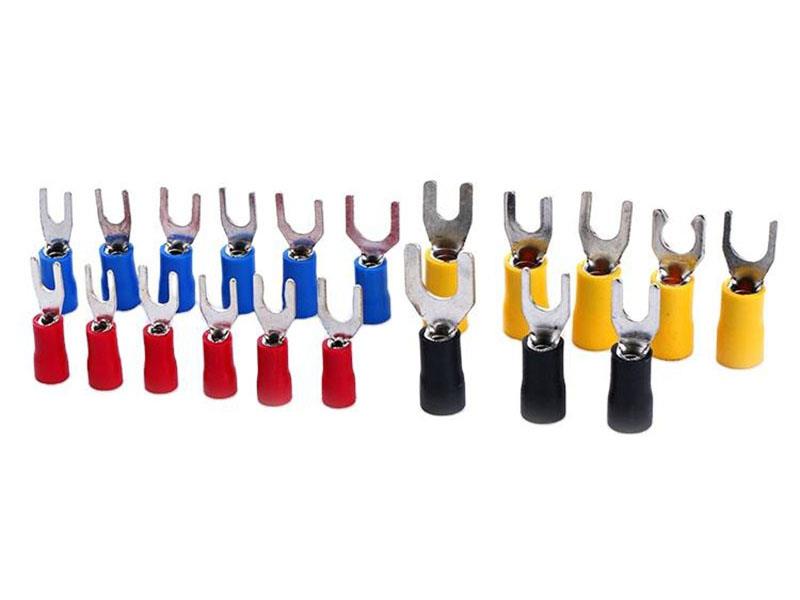

Pre-insulated Fork Terminals-SV Series
| Item No. |
American Bolt number |

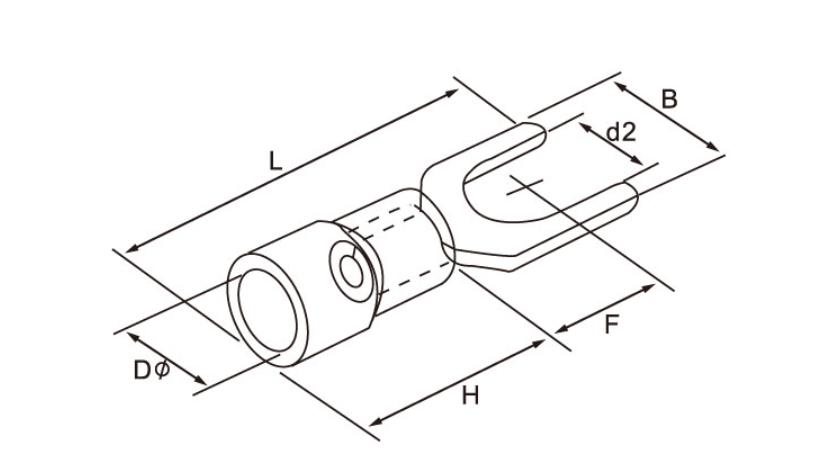

Dimension(mm) |
Color |
Remarks |
| Screw dia. |
B |
L |
F |
H |
D |
| d2 |
| SV1.25-3 |
#4 |
3.2 |
5.7 |
21.6 |
6.5 |
10 |
4.3 |
Red |
Cable size:0.5~1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.7mm |
| SVS1.25-3.5 |
#6 |
3.7 |
5.7 |
21.6 |
6.5 |
| SVL1.25-3.5 |
#6 |
3.7 |
6.4 |
21.2 |
6.5 |
| SVS1.25-4 |
#8 |
4.3 |
8 |
21.2 |
6.5 |
| SVM1.25-4 |
#8 |
4.3 |
7.2 |
21.2 |
6.5 |
| SVL1.25-4 |
#8 |
4.3 |
8.1 |
21.2 |
6.5 |
| SVS1.25-5 |
#10 |
5.3 |
8.1 |
21.2 |
6.5 |
| SVL1.25-5 |
#10 |
5.3 |
9.5 |
21.2 |
6.5 |
| SVS1.25-6 |
1/4 |
6.4 |
9.5 |
21.2 |
6.5 |
| SVL1.25-6 |
1/4 |
6.4 |
12 |
27.2 |
11 |
| SV2-3 |
#4 |
3.2 |
5.7 |
21.2 |
6.5 |
10.6 |
4.9 |
blue |
Cable size:1.5~2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm |
| SVS2-3.5 |
#6 |
3.7 |
5.7 |
21.2 |
6.5 |
| SVL2-3.5 |
#6 |
3.7 |
6 |
21.2 |
6.5 |
| SVS2-4 |
#8 |
4.3 |
6.4 |
21.2 |
6.5 |
| SVM2-4 |
#8 |
4.3 |
7.2 |
21.2 |
6.5 |
| SVL2-4 |
#8 |
4.3 |
8.1 |
21.2 |
6.5 |
| SVS2-5 |
#10 |
5.3 |
8.1 |
21.2 |
6.5 |
| SVL2-5 |
#10 |
5.3 |
9.5 |
21.2 |
6.5 |
| SVS2-6 |
1/4 |
6.4 |
9.5 |
21.2 |
6.5 |
| SVL2-6 |
1/4 |
6.4 |
12 |
27.8 |
11 |
| SV2-8 |
5/16 |
8.4 |
12 |
27.8 |
11 |
| SV3.5-3 |
#4 |
3.2 |
5.7 |
26.8 |
7 |
13 |
6.2 |
black |
Cable size:2.5~4mm²(A.W.G.14-12) Max current:Imax=37A Material: purple copper Thickness:1.0mm |
| SV3.5-4 |
#8 |
4.3 |
8 |
24.8 |
7 |
| SV3.5-5 |
#10 |
5.3 |
8 |
24.8 |
7 |
| SV3.5-6 |
1/4 |
6.4 |
12.1 |
28.3 |
12.1 |
| SV5.5-3.5 |
#6 |
3.7 |
8.4 |
26 |
7.5 |
13 |
6.7 |
yellow |
Cable Size:4~6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm |
| SVS5.5-4 |
#8 |
4.3 |
8.4 |
26 |
7.5 |
| SVL5.5-4 |
#8 |
4.3 |
9 |
26 |
7.5 |
| SV5.5-5 |
#10 |
5.3 |
9 |
26 |
7.5 |
| SVS5.5-6 |
1/4 |
6.4 |
9 |
26 |
7.5 |
| SVL5.5-6 |
1/4 |
6.4 |
12 |
32 |
12 |
| SV5.5-8 |
5/16 |
8.4 |
14 |
31 |
11.5 |
