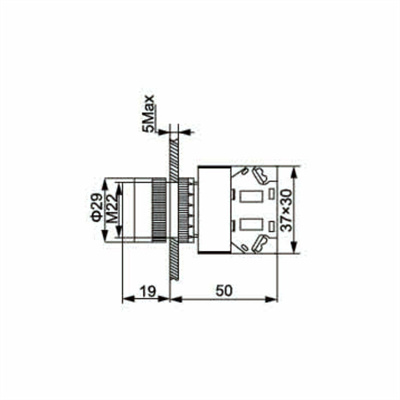

Style | Name | Type | Color | Contact | Outline Dimensions |
![]() |

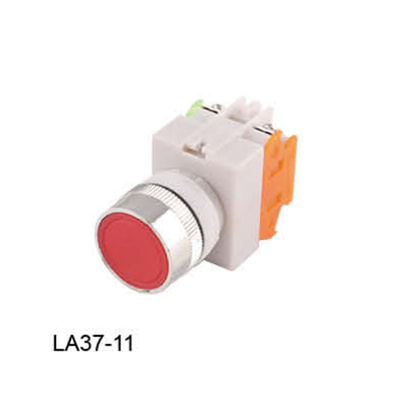

Flush button spring return | LA37-11 | White | NO NC | ![]() |
Black | |||||
Green | |||||
Flush button stay put | LA37-11Z | Red | |||
Yellow | |||||
Blue | |||||
![]() |

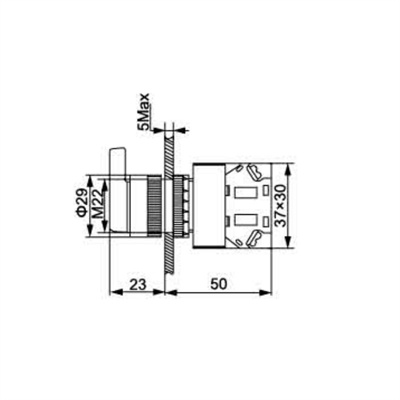

Raised button spring return |

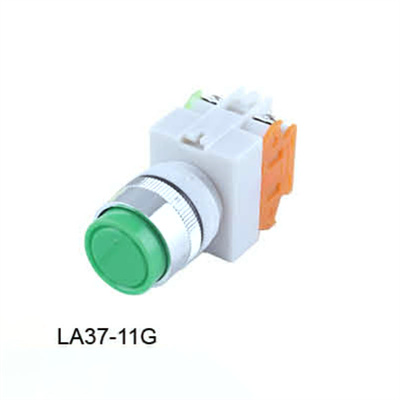

LA37-11G | White | NO NC | ![]() |
Black | |||||
Green | |||||
Raised button stay put |
LA37-11GZ | Red | |||
Yellow | |||||
Blue | |||||
![]() |

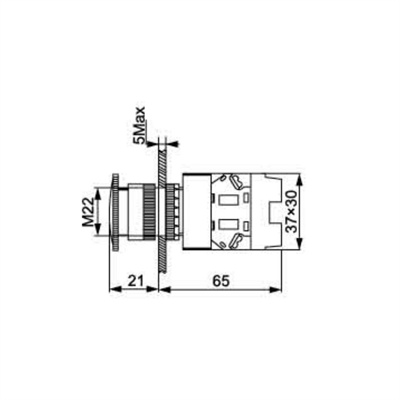

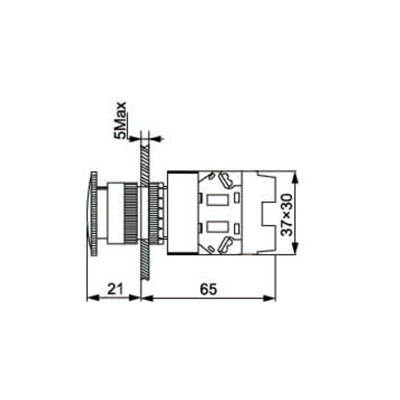

Mushroom head spring return |

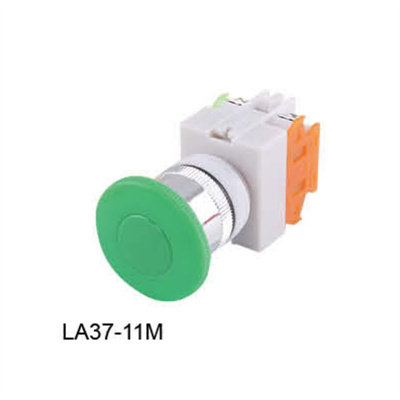

LA37-11M | Green | NO NC | ![]() |
Illuminated mushroom head with Neon or LED 6~380V |
LA37-11MD | Red | |||
Yellow | |||||
![]() |
Mushroom head turn to release φ40 |

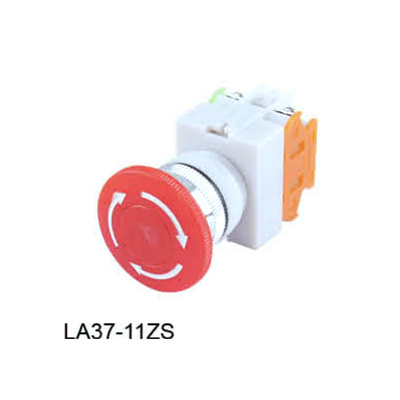

LA37-11ZS | Green | NO NC | ![]() |
Red | |||||
Yellow | |||||
![]() |

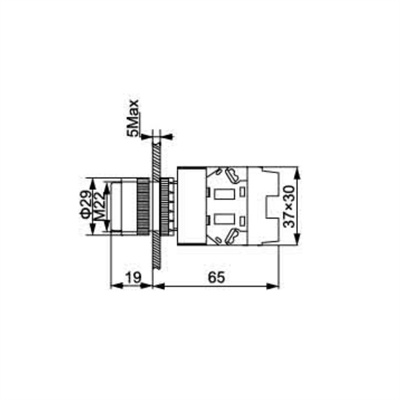

Illuminated flush button 6~380V |

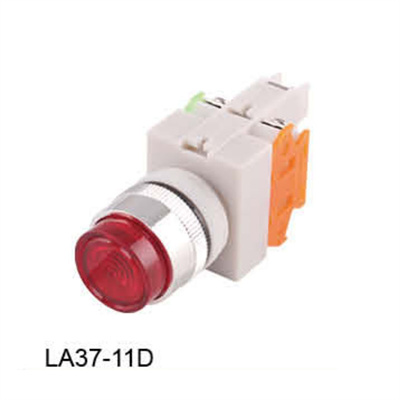

LA37-11D | Green | NO NC | ![]() |
Illuminated button reset 6~380V |
LA37-11DZ | Red | |||
Yellow | |||||
![]() |

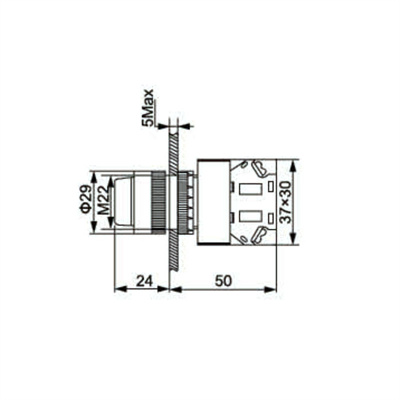

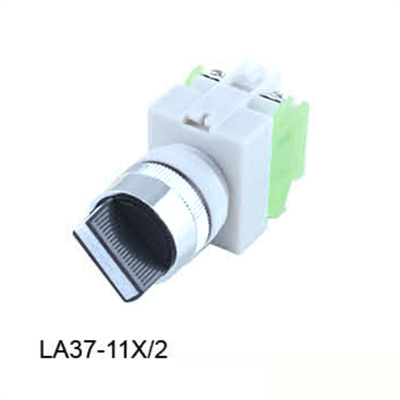

2-position selector switch | LA37-11X/2 | ![]() |
NO NC | ![]() |
3-position selector switch | LA37-11X/3 | ![]() |
|||
![]() |

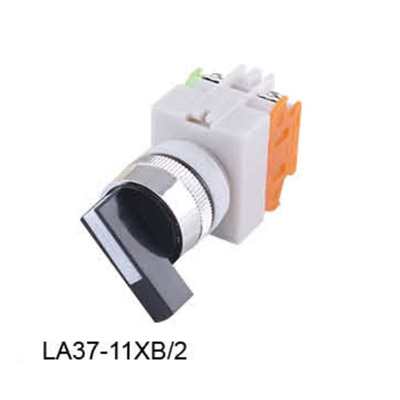

2-position selector switch | LA37-11XB/2 | ![]() |
NO NC | ![]() |
3-position selector switch | LA37-11XB/3 | ![]() |
|||
![]() |

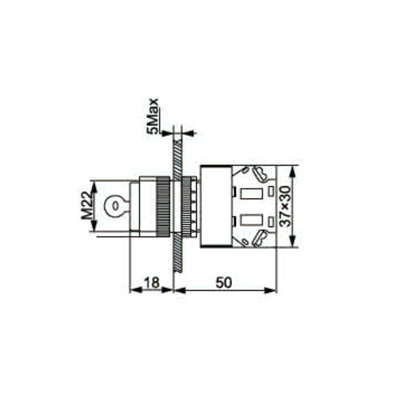

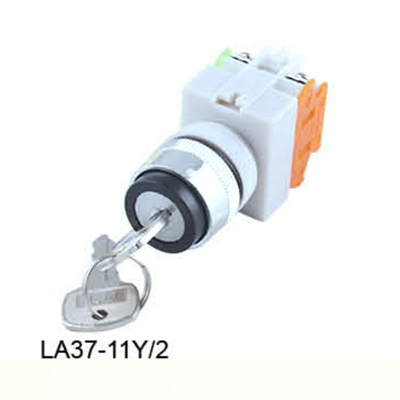

2-position selector key switch | LA37-11Y/2 | ![]() |
NO NC | ![]() |
3 position selector key switch | LA37-11Y/3 | ![]() |
