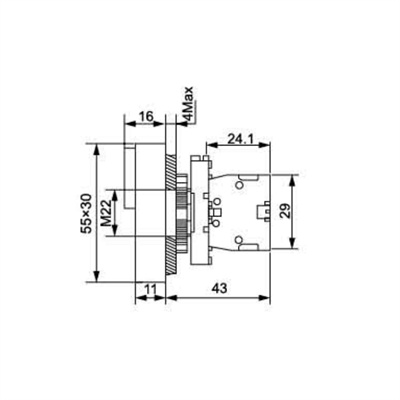

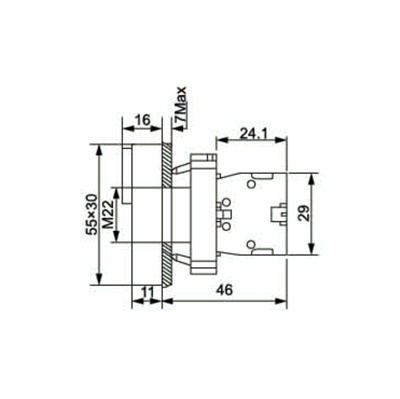

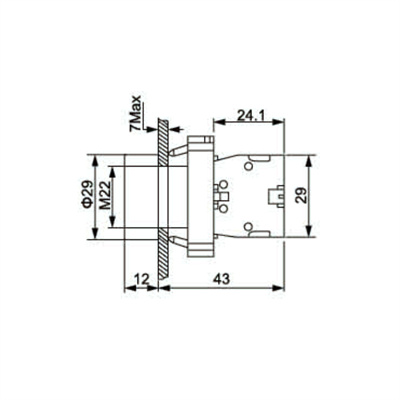

| Style | Name | Type | Color | Contact | Self restoration | Outline Dimensions |
 |
Even button spring return |
XB2-BA11 | White | N/O | Self restoration |
 |
| XB2-BA21 | Black | N/O | ||||
| XB2-BA31 | Green | N/O | ||||

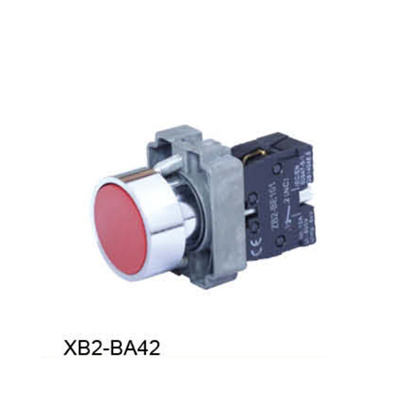

| XB2-BA42 | Red | N/O | ||||
| XB2-BA51 | Yellow | N/O | ||||
| XB2-BA61 | Blue | N/O | ||||
 |
Short handle stay put |

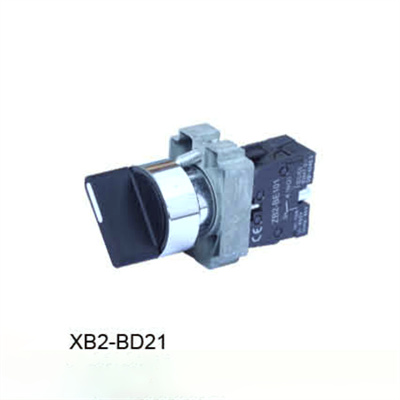

XB2-BD21 |  |
N/O | 2 position self-lock |  |
| XB2-BD25 |  |
N/O N/C | 2 position self-lock | |||
| XB2-BD41 |  |
N/O | 2 position Key 1 spring return to centre |
|||
| XB2-BD45 |  |
N/O N/C | 2 position Key 1 spring return to centre |
|||
 |

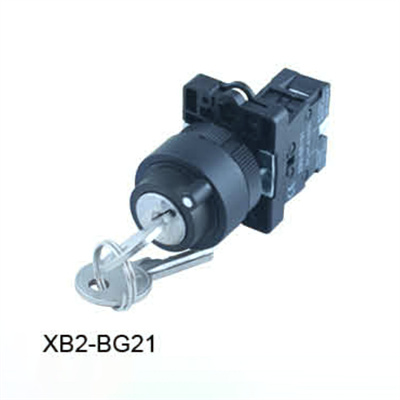

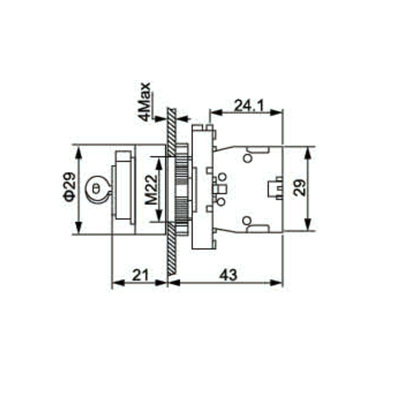

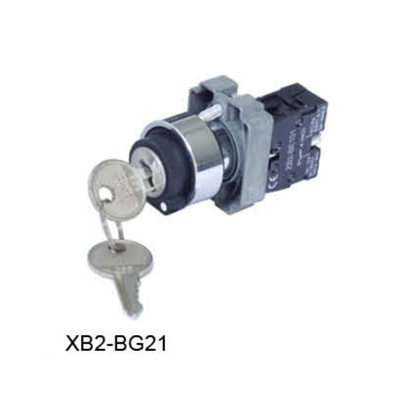

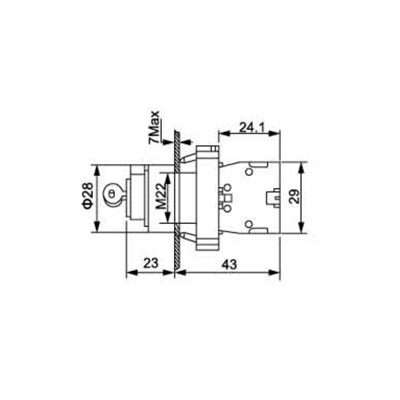

Key stay put | XB2-BG21 |  |
N/O | 2 position self-lock |  |
| XB2-BG41 |  |
N/O | 2 position Key 1 spring return to centre |
|||
| XB2-BG33 |  |
N/O N/O | 3 position self-lock | |||
| XB2-BG53 |  |
N/O N/O | 3 position Key 1 spring return to centre |
|||
 |

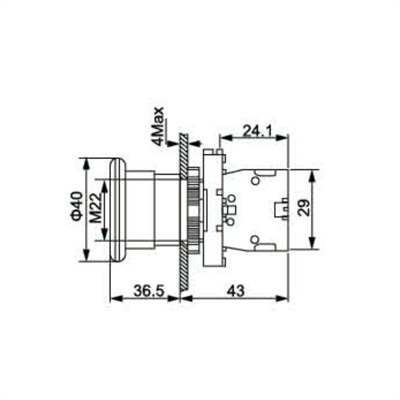

Mushroom head turn to release |
XB2-BS442 | Red | N/C | Maintained |  |

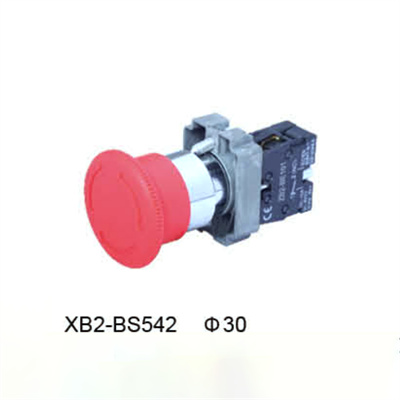

| XB2-BS542 | Red | N/C | ||||
 |

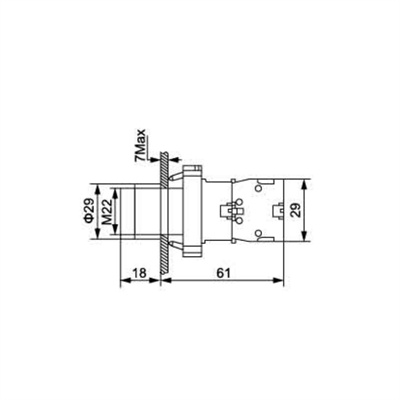

Direct Bulb supplied |
XB2-BW1361 | White | N/O | 130V 50/60Hz 220V 50/60Hz 380V 50/60Hz |
 |

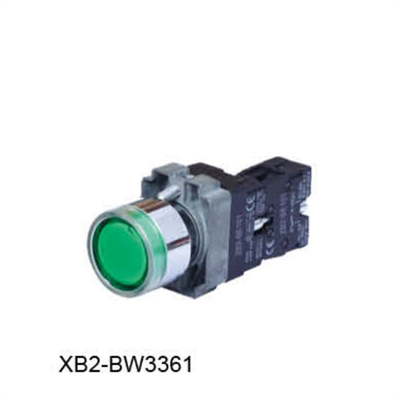

| XB2-BW3361 | Green | N/O | ||||
| XB2-BW3462 | Red | N/C | ||||
| XB2-BW3561 | Yellow | N/O | ||||
| XB2-BW3661 | Blue | N/O | ||||
 |
1 flush green push button |
XB2-BL8325 |
Green |
N/O N/C | Self restoration |  |
|

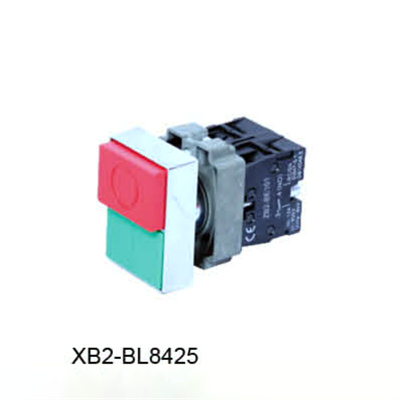

1 flush red push button |
XB2-BL8425 | Red | |||
 |

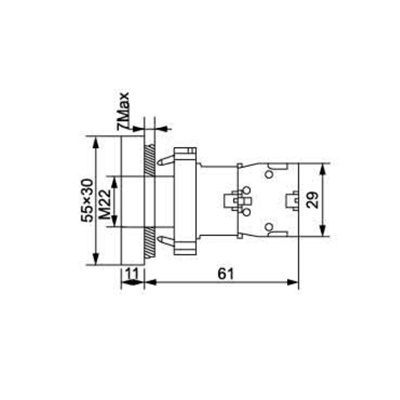

Illuminated double head button 6~220V |

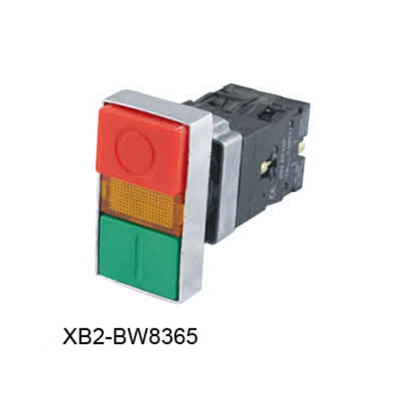

XB2-BW8365 |  |
NO NC | Self restoration |  |
| HB2-BW8465 |  |
|||||
 |
Even button spring return with symbol logo |

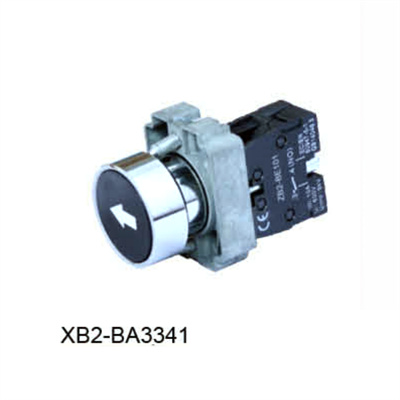

XB2-BA3341 |  White |
N/O | Self restoration |  |
| XB2-BA3351 |  Black |
N/O | ||||
| XB2-BA3311 |  Green |
N/O | ||||
| XB2-BA4322 |  Red |
N/C | ||||
| XB2-BA5342 |  Red |
N/C | ||||
 |
Even button spring return |
XB2-EA11 | White | N/O | Self restoration |
 |
| XB2-EA21 | Black | N/O | ||||

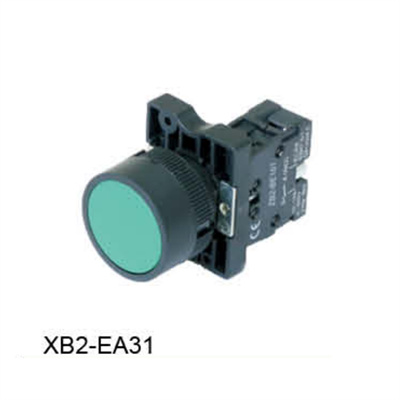

| XB2-EA31 | Green | N/O | ||||
| XB2-EA42 | Red | N/C | ||||
| XB2-EA51 | Yellow | N/O | ||||
| XB2-EA61 | Blue | N/O | ||||
 |

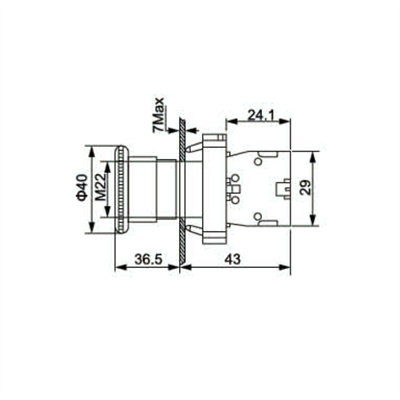

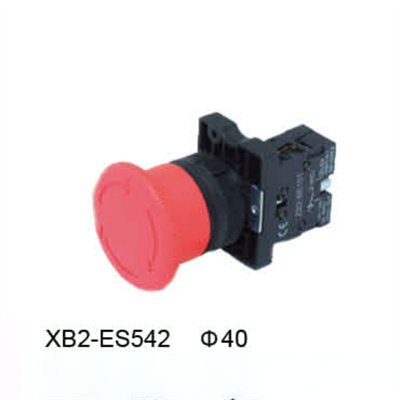

a | XB2-ES542 | Red | N/C | Maintained |  |
 |
Short handle stay put |

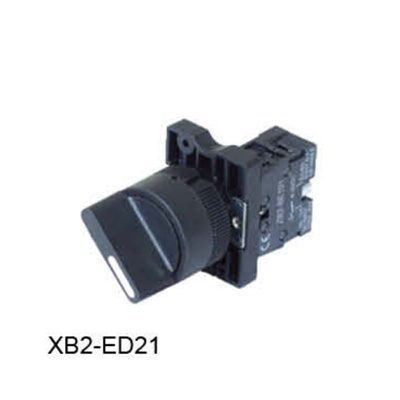

XB2-ED21 |  |
N/O | 2 position self-lock |  |
| XB2-ED25 |  |
N/O N/C | 2 position self-lock | |||
| XB2-ED41 |  |
N/O | 2 position Key 1 spring return to centre |
|||
| XB2-ED45 |  |
N/O N/C | 2 position Key 1 spring return to centre |
|||
 |
Key stay put | XB2-BG21 | N/O | 2 position self-lock |  |
|
| XB2-BG41 | N/O | 2 position Key 1 spring return to centre |
||||
| XB2-BG33 | N/O N/O | 3 position self-lock | ||||
| XB2-BG53 | N/O N/O | 3 position Key 1 spring return to centre |
||||
 |
Illuminated button directness with Neon or LED 6~380V |

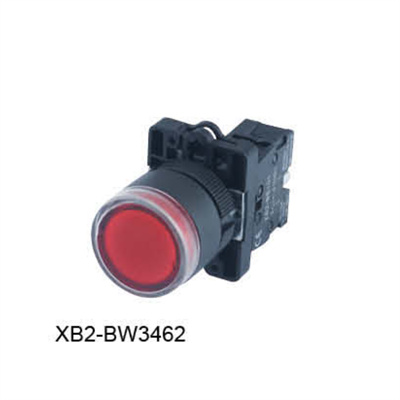

XB2-BW3462 | Red | N/C | Self restoration |  |
| XB2-BW3361 | Green | N/O | ||||
| XB2-BW3561 | Yellow | N/O | ||||
| XB2-BW3661 | Blue | N/O | ||||
 |

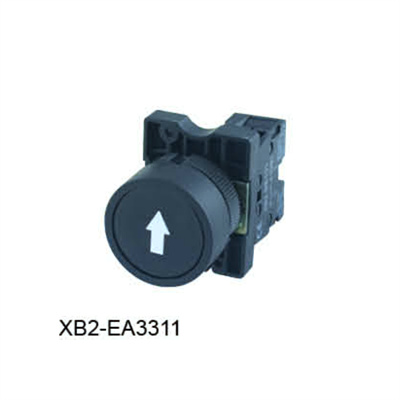

Flush button with mark | XB2-EA3311 |  |
N/O | Self restoration |  |
| XB2-EA3341 |  |
N/O | ||||
| XB2-EA3351 |  |
N/O | ||||
| XB2-EA3331 |  |
N/O | ||||
| XB2-EA4322 |  |
N/C | ||||
| XB2-EA5342 |  |
N/C | ||||
 |
Double- headed button |

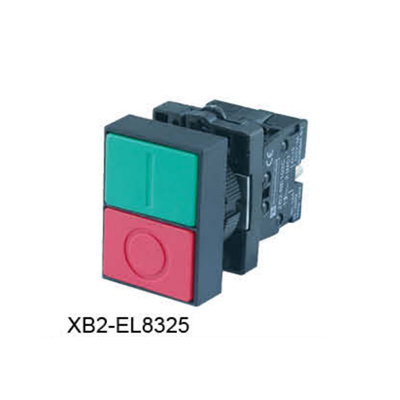

XB2-EL8325 |  |
NO NC | Self restoration |  |
| XB2-EL8425 |  |
|||||
 |
Illuminated double-headed button with Neon or LED 6~380V |

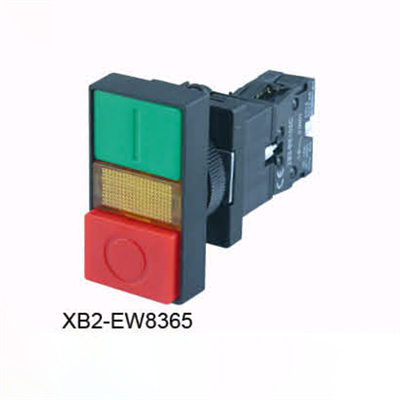

XB2-EW8365 |  |
NO NC | Self restoration |  |
| XB2-EW8465 |  |
