| Application | ||||||||

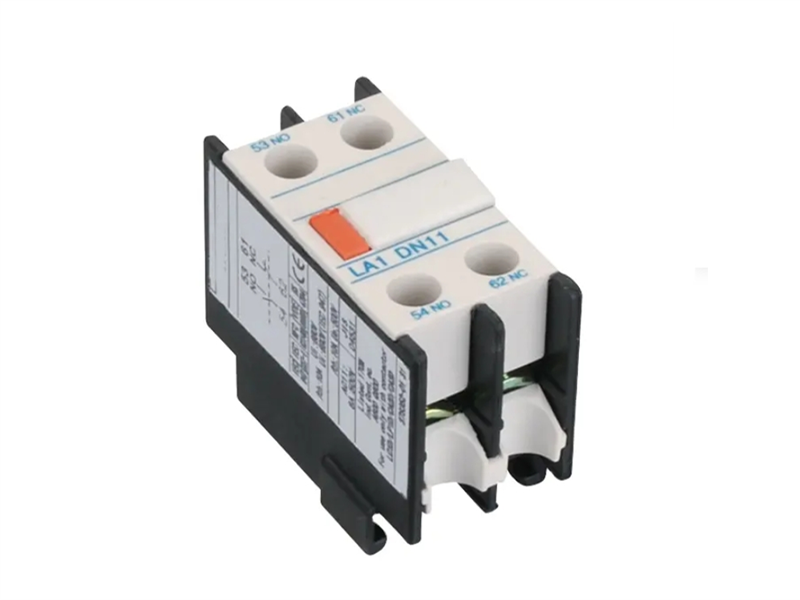

| The TA1-D series auxiliary contactor blocks are mainly used in the circuit AC-15, 50Hz, rated voltage up to 380V, rated current up to 0.95A; Or in the circuit DC-13, rated voltage up to DC220V, rated current up to 0.15A, which are installed at the top of control reply or LC1-D AC contactor for expanding the couples of auxiliary contacts points, Owing to adopting the contacting functions of sliding friction, the item can be self-cleaning & ensuring the electric circuit to be reliable. |
||||||||
| Specification | ||||||||
| Model | LA1-D02 | LA1-D04 | LA1-D11 | LA1-D13 | LA1-D20 | LA1-D22 | LA1-D31 | LA1-D40 |
Contact number |
2NC | 4NC | NO NC | 1NO 3NC | 2NO | 2NO 2NC | 3NO 1NC | 4NO |
