| Application | ||

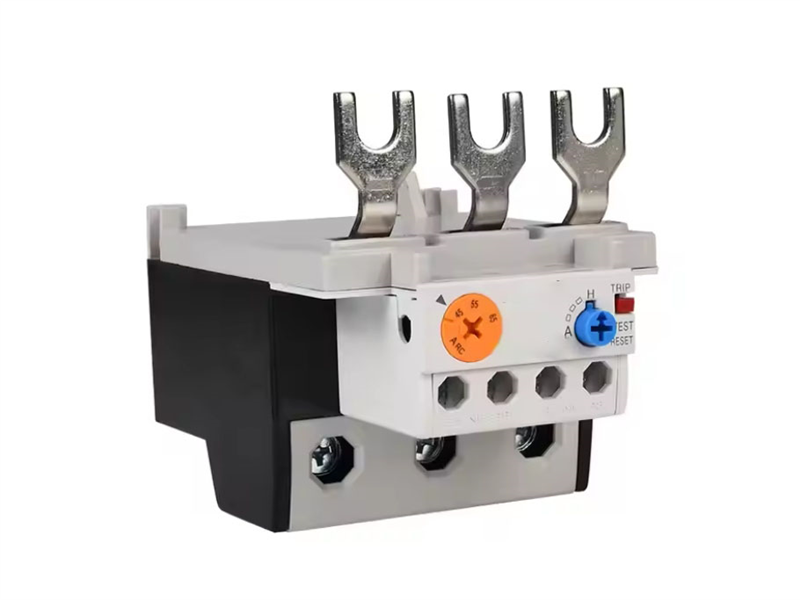

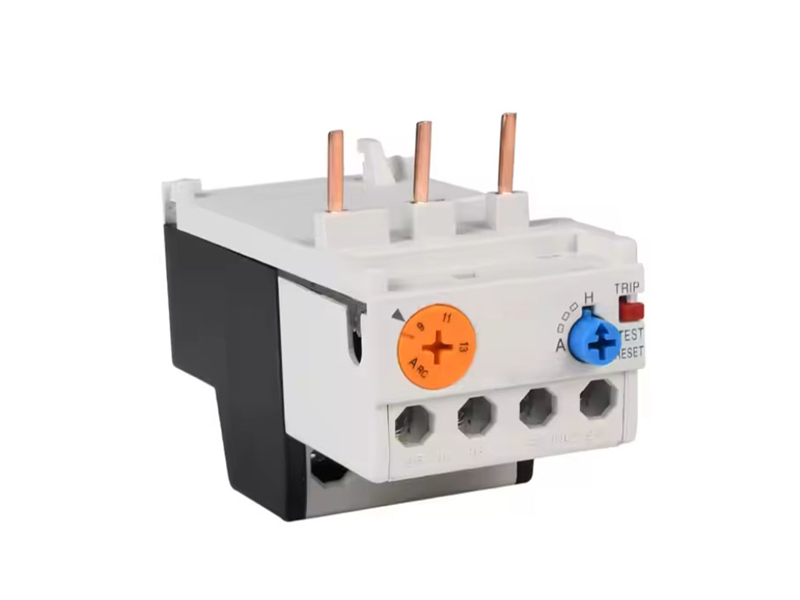

| GTH series thermal relay is suitable for the power system of AC 50Hz,main circuit rated voltage up to 660V, current up to 630A, used as protecting AC three-phase motor against overload and phase losing, and forming electric-magnetic with starter UK series AC contactor. It has functions of phase-losing protection temperature campe, trip indication. It can passively and automatically get back. |
||
| Specification | ||
| Type | Thermal component | |
| Rated current (A) | Regular or scale of rated current (A) | |
| GTH-22 | 0.14 | 0.10-0.16 |
| 0.21 | 0.16-0.25 | |
| 0.33 | 0.25-0.40 | |
| 0.52 | 0.40-0.63 | |
| 0.82 | 0.63-1.0 | |
| 1.3 | 1.0-1.6 | |
| 2.1 | 1.6-2.5 | |
| 3.3 | 2.5-4.0 | |
| 5 | 4.0-6.0 | |
| 6.5 | 5.0-8.0 | |
| 7.5 | 6.0-9.0 | |
| 8.5 | 7.0-10.0 | |
| 11 | 9.0-13.0 | |
| 15 | 12.0-18.0 | |
| 19 | 16.0-22.0 | |
| GTH-40 | 5 | 4.0-6.0 |
| 6.5 | 5.0-8.0 | |
| 7.5 | 6.0-9.0 | |
| 8.5 | 7.0-10.0 | |
| 11 | 9.0-13.0 | |
| 15 | 12.0-18.0 | |
| 19 | 16.0-22.0 | |
| 22 | 18.0-26.0 | |
| 30 | 24.0-36.0 | |
| 34 | 28.0-40.0 | |
| GTH-85 | 8.5 | 7.0-10.0 |
| 11 | 9.0-13.0 | |
| 15 | 12.0-18.0 | |
| 19 | 16.0-22.0 | |
| 22 | 18.0-26.0 | |
| 30 | 24.0-36.0 | |
| 34 | 28.0-40.0 | |
| 42 | 34.0-50.0 | |
| 55 | 45.0-65.0 | |
| 65 | 54.0-75.0 | |
| 74 | 63.0-85.0 | |
