| Application | ||||||

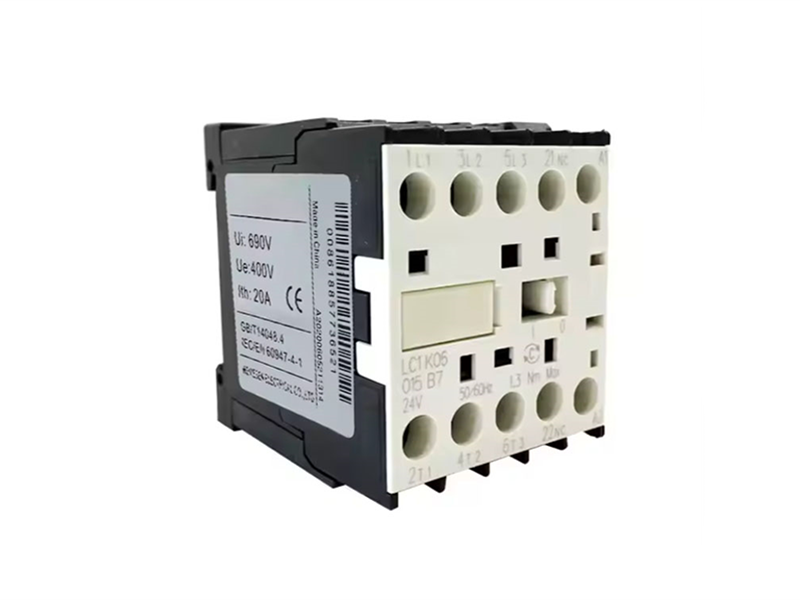

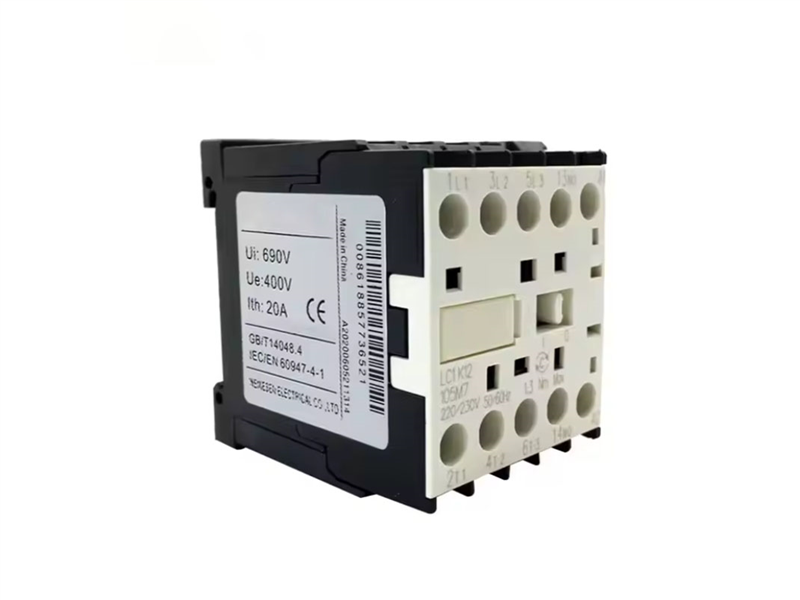

| LC1-k series AC contactor is suitable for using in the circuit up to the rate and frequentstarting, controlling the AC motor. the addtion of auxiliary contact group to the contactor, dombined with the proper thermal relay, can act to protect the circuit bound to overload. | ||||||
| Specification | ||||||
| specifications\Type | LC1-K06 | LC1-K09 | LC1-K12 | |||
| Use group under AC-3 | 3 | 9 | 12 | |||
| Rated working current(le)A | 5 | 7.5 | 10 | |||
| Conventional thermal current(lth)A | 16 | 20 | 20 | |||
| Rated working voltage(Ue)V | 380 660 | |||||
| Rated insullation voltage(Ui)V | 690 | |||||
| AC-3(6le le) | Electrical life(times) | 0.5×10⁶ | ||||
| Operation frequency h-1 | 1200 | |||||
| AC-4(6le le) | Electrical life(times) | 10×104 | ||||
| Operation frequency h-1 | 300 | |||||
| Mechanical | 3×106 | |||||
| Conventional thermal current | ||||||
Auxiliary contact |
Electrical life (times) |
AC-15(360VA) | 0.5×106 | |||
| DC-13(33W) | ||||||
| Rated control voltage(Us) | AC:12,24,45,110,220,380 DC:12,24,45,110,220 |
|||||
| Pick-up voltage | AC:0.85~1.1Us DC:0.85~1.1Us | |||||
| Releasing voltage | AC:0.1~0.75Us DC:0.2~0.75Us | |||||
| Coil specifications | Coil power VA | Pick-up | 40 | |||
| Retain | 4 | |||||
| Consumption | 1.2W | |||||
| Pick-up time | 6~18ms | |||||
| Releasing time | 5~23ms | |||||
| Power factor | Making 0.8 Breaking 0.3 | |||||
