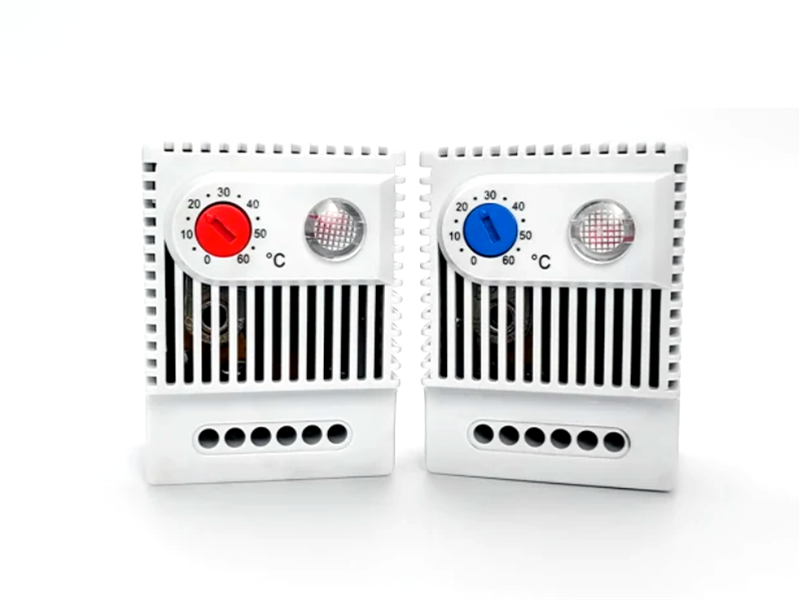

KTS 021&KTO 021

Model KTS021/KTO021
Switching difference Thermostatic bimetal
Sensor Element 12.6°F± 7 °F tolerance (7 K±4 K)
Contact type snap-action contact

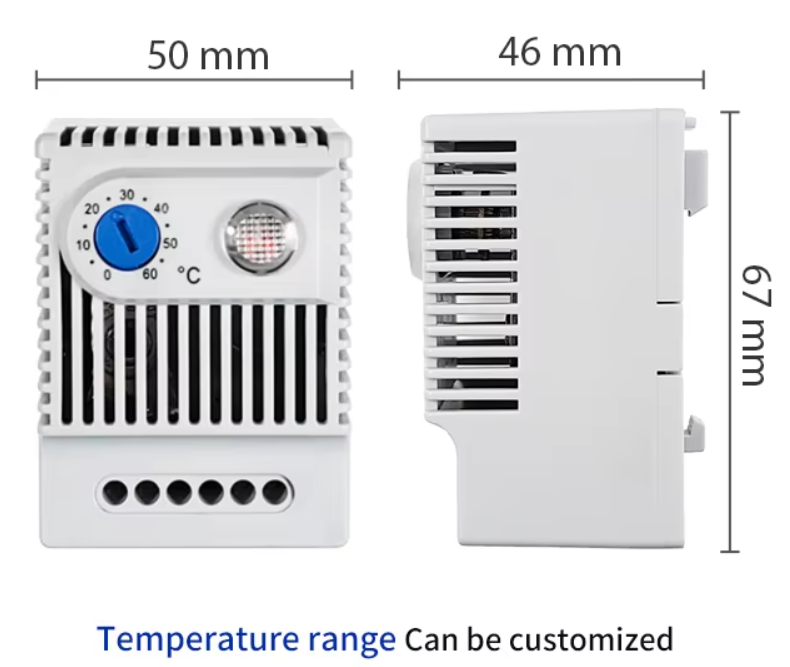

Dimension 67X 50x 46mm
Weight 90g
Temperature range 0-60°C(customizable)
Service life > 100000cycles
Max.switching capacity AC 110V--250V/DC 24V-72V(customizable)
Max.surge current AC 16 A for 10 sec.
Housing plastic, uL 94V-o,light grey
Mounting clip for 35 mm DIlv rail
Operating/Storage temperature _45 to 80°C
Operating/Storage humidity max.90 %RH (non-condensing)
Protection degree IP20
