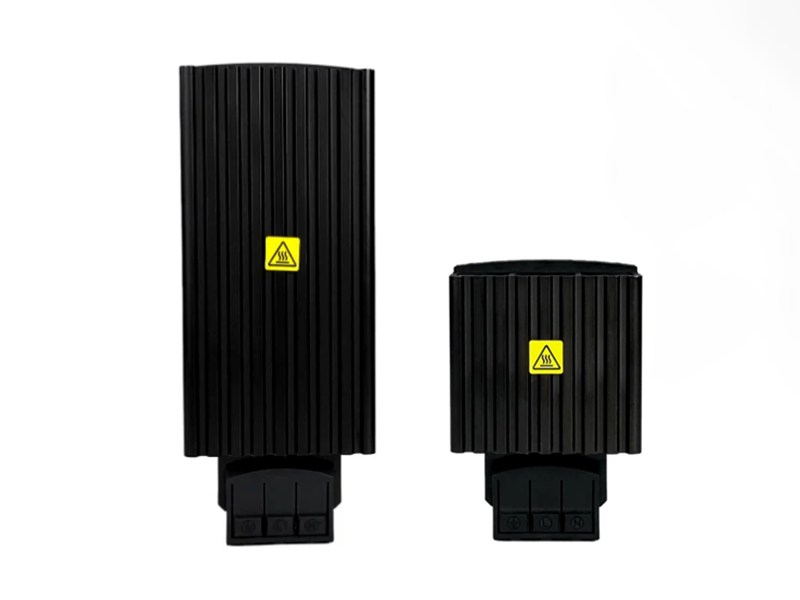

HG 140: | |
Model | HG140 |
Operating voltage | AC/DC 120-240 V (min. 110 V, max. 265 V) |
Heating element | PTC resistor, temperature limiting |
Heater body | extruded aluminum profile, anodized |
Connection |
3 cage clamps for solid wire AWG 20-14 (0.5-2.5 mm²), and stranded wire (with wire end ferrule) - AWG 20-16 (0.5-1.5 mm²) |
Connection casing | plastic, UL 94V-0, black |
Mounting | clip for 35 mm DIN rail, EN 60715 |
Mounting position | vertical airflow (air outlet up, connection on bottom) |
Operating / Storage temperature | -40 to 185 °F (-20ºC to 85°C) |
Operating / Storage humidity | max. 90 %RH (non-condensing) |
Protection class / Protection type | I (grounded) / IP20 |
Note | other voltages available upon request |
