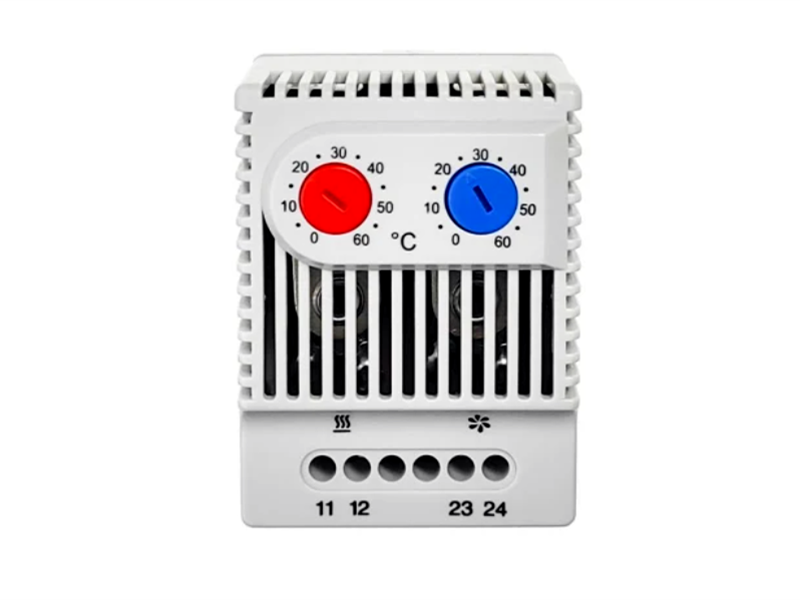

ZR011: |
Model |
ZR011 |
Switching difference |
Thermostatic bimetal |
Sensor Element |
12.6°F± 7 °F tolerance (7 K±4 K) |
Contact type |
snap-action contact |

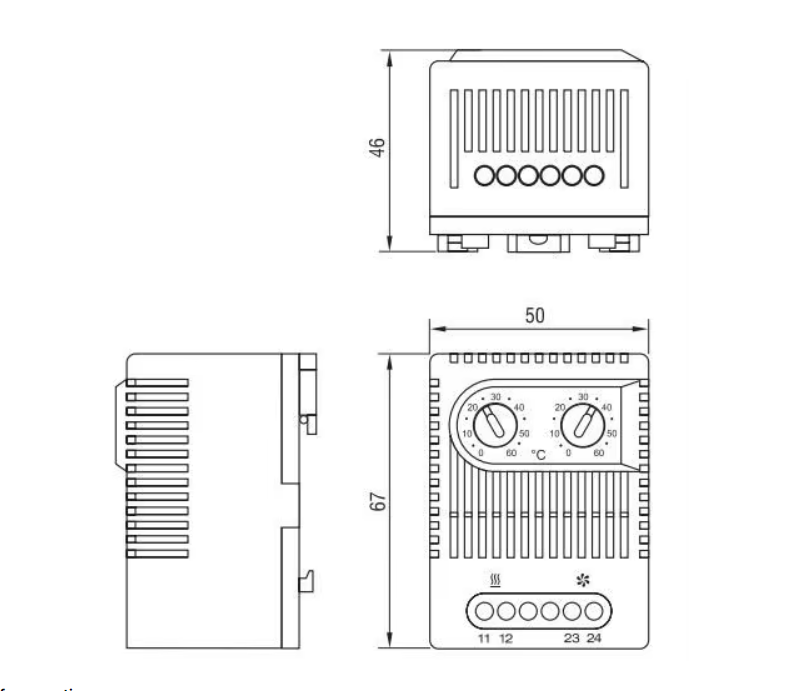

Dimension |
67X 50x 46mm |
Weight |
90g |
Temperature range |
0-60°C(customizable) |
Service life |
> 100000cycles |
Max.switching capacity |
AC 110V--250V/DC 24V-72V(customizable) |
Max.surge current |
AC 16 A for 10 sec. |
Housing |
plastic, uL 94V-o,light grey |
Mounting |
clip for 35 mm DIlv rail |
Operating/Storage temperature |
_45 to 80°C |
Operating/Storage humidity |
max.90 %RH (non-condensing) |
Protection degree |
IP20 |
