KTS 011&KTO 011

KTS011
Model KTS011
Switching difference Thermostatic bimetal
Sensor Element 12.6°F± 7 °F tolerance (7 K±4 K)thermostatic bimetal
Contact type snap-action contact

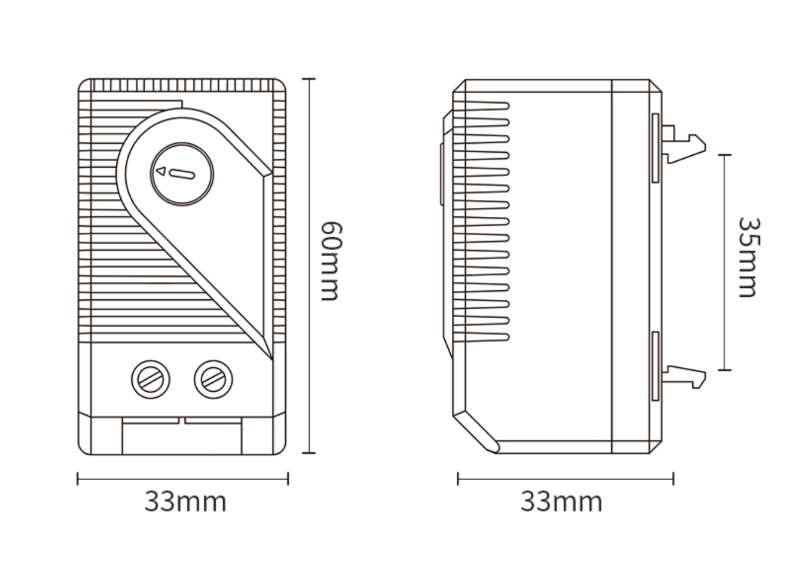

Dimension 60X 33x 43mm
Weight 40g
Temperature range 0-60°C(customizable)
Service life > 100000oocycles
Max.switching capacity AC 110V--250V/DC 24V-72V(customizable)
Max.surge current AC 16 A for 10 sec.
Housing plastic, uL 94V-o,light grey
Mounting clip for 35 mm DIlv rail
Operating/Storage temperature _45 to 80°C
Operating/Storage humidity max.90 %RH (non-condensing)
Protection degree IP20



KTO011:
Model KTO011
Switching difference Thermostatic bimetal
Sensor Element 12.6°F± 7 °F tolerance (7 K±4 K)thermostatic bimetal
Contact type snap-action contact
Dimension 60X 33x 43mm
Weight 40g
Temperature range 0-60°C(customizable)
Service life > 100000cycles
Max.switching capacity AC 110V--250V/DC 24V-72V(customizable)
Max.surge current AC 16 A for 10 sec.
Housing plastic, uL 94V-o,light grey
Mounting clip for 35 mm DIlv rail
Operating/Storage temperature _45 to 80°C
Operating/Storage humidity max.90 %RH (non-condensing)
Protection degree IP20
