Style | Name | Type | Contact | Label | Remarks |
Red mushroom head push button φ40 |

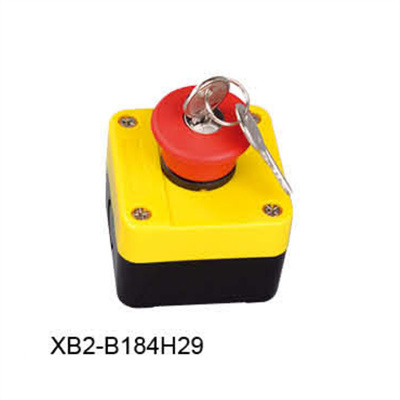

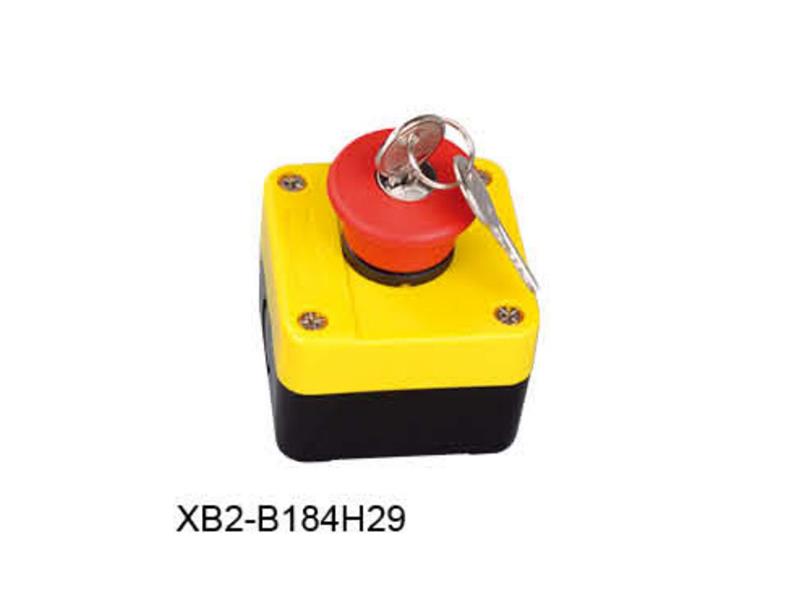

XB2-B184H29 | NC | Emergency stop |
Latching key release | |
2-position of selector switch |

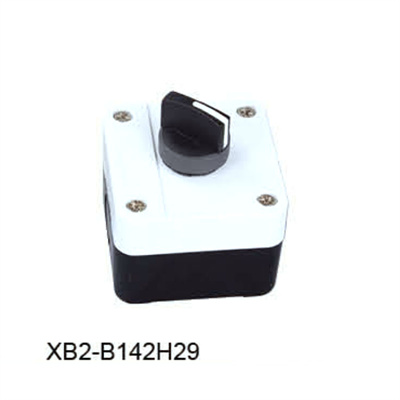

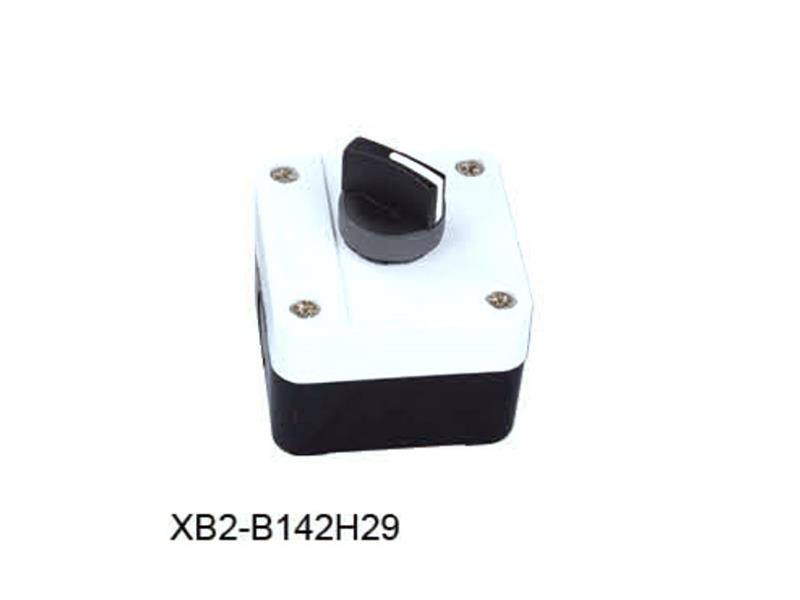

XB2-B142H29 | NO | Start stop | Key | |
XB2-B144H29 | I O | ||||
XB2-B132H29 | Start stop | Standard black handle | |||
XB2-B134H29 | I O | ||||
2-spring return push button |

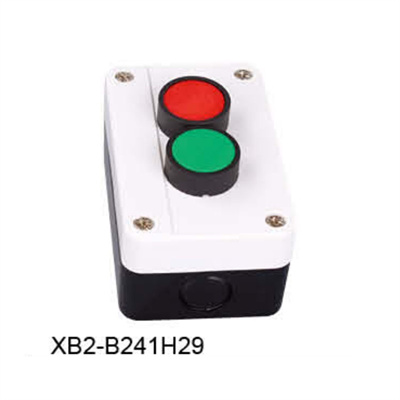

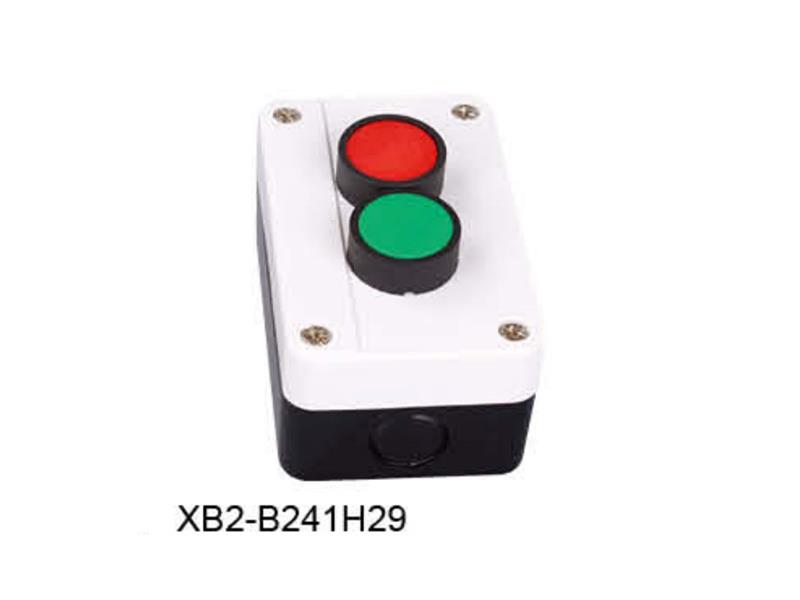

XB2-B241H29 | NO NC | open close |
1flush green 1flush red |
|
XB2-B211H29 | open close | ||||
2-spring return push button |

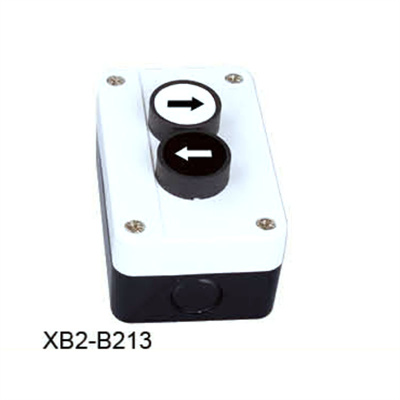

XB2-B213 | NO NC | ________ | 1flushgreen 1flush red |
|
XB2-B215 | ________ | 1flush green 1flush red |
|||
XB2-B222 | NO NO | ________ | 1flush white 1flush black |
||
XB2-B223 | ________ | 1flush white 1flush black |
|||
1Green flush push button |

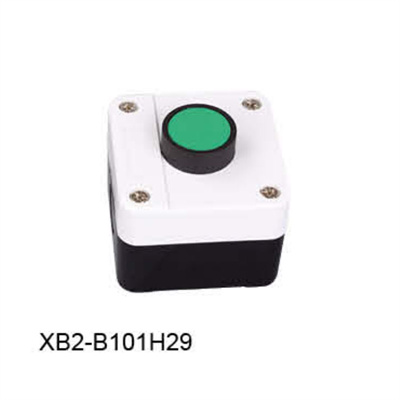

XB2-B101H29 | NO | start | ||
XB2-B102 | ________ | ||||
XB2-B103 | |||||
1Red flush push button |
XB2-B111H29 | NC | Stop | ||
XB2-B144 | ________ | ||||
XB2-B112 | |||||
Red mushroom head push button φ40 |

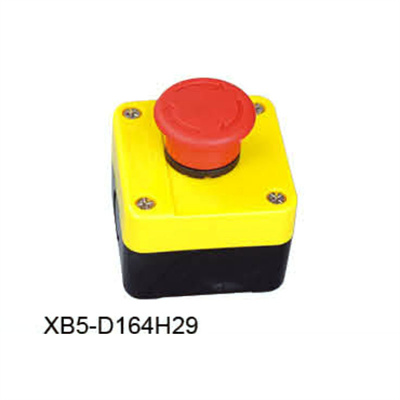

XB5-D164H29 | NC | Emergency stop |
Springle return | |
XB5-D174H29 | Stop | Turn to release | |||
XB5-K174 | ________ | ||||
3-spring return push button | XB2-B324 | NO NC NO | ________ | ||
XB2-B334 | ________ | ||||
XB2-B339 | ________ | ||||

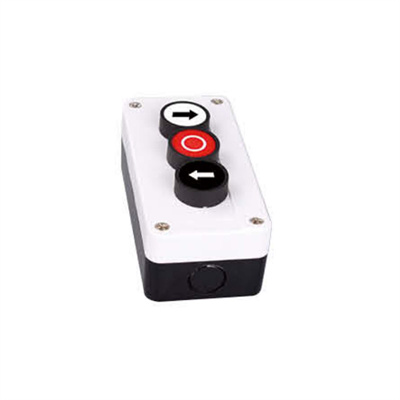

XB2-B311H29 | Forward stop reverse | ||||
XB2-B321H29 | Up stop down | ||||
XB2-B341H29 | Open stop close | ||||

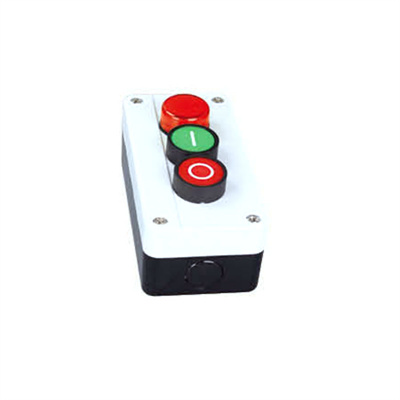

2-spring return push button 1 red pilot light | XB2-B361H29 | NO NC | Start stop | ||
XB2-B363 | ________ | ||||
XB2-B366 | |||||
2-spring return push button 1 resistance pilot light | XB2-B37H29 | Start stop | |||
XB2-B373 | ________ | ||||
XB2-B376 | |||||

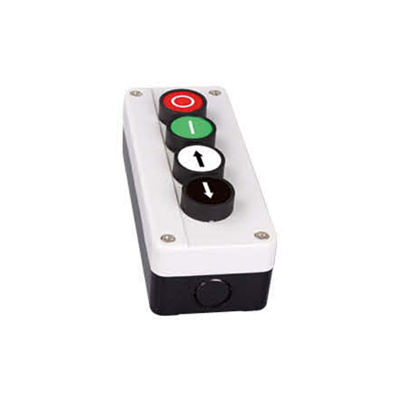

4-spring return push button |
XB2-B4111 | NO NO NO NC | ________ |
