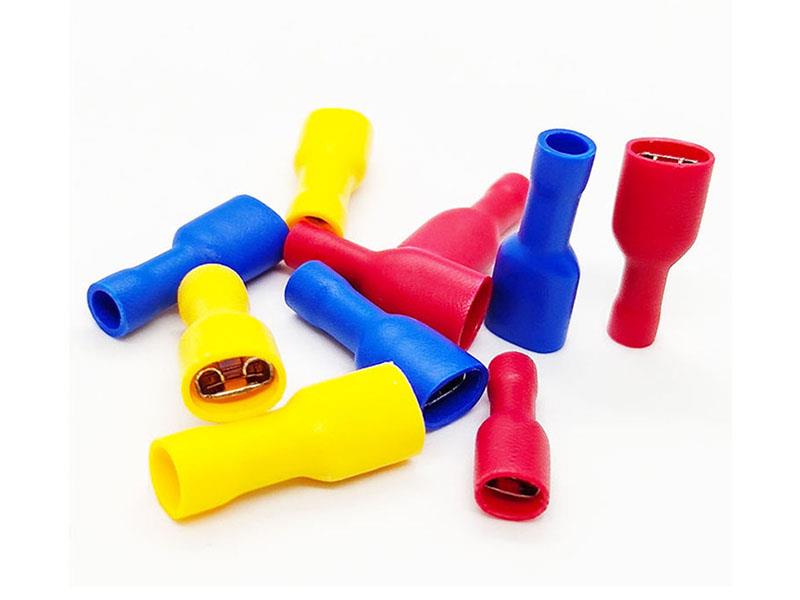

Fully Insulated Female Disconnect Terminals-FDFD Series
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass |
| Item No. |
Thickness of material |

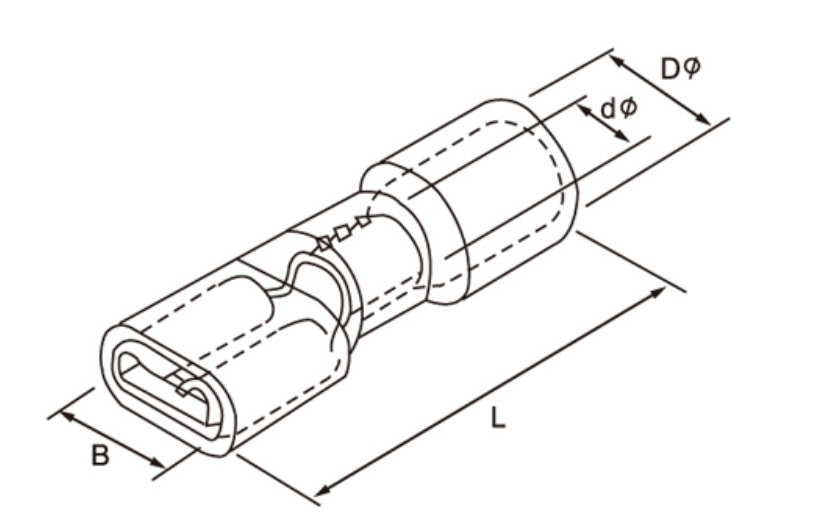

Dimension(mm) |
Color |
| B |
D |
d |
L |
| FDFD1.25-187(5) |
0.5×4.75 |
5.6 |
3.8 |
1.7 |
20.8 |
Red |
| FDFD1.25-187(8) |
0.8×4.75 |
5.6 |
3.8 |
1.7 |
20.8 |
| FDFD1.25-250 |
0.8×6.35 |
7.4 |
3.8 |
1.7 |
24.3 |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
Color |
| B |
D |
d |
L |
| FDFD2-187(5) |
0.5×4.75 |
5.6 |
4.3 |
2.3 |
20.8 |
Blue |
| FDFD2-187(8) |
0.8×4.75 |
5.6 |
4.3 |
2.3 |
20.8 |
| FDFD2-250 |
0.8×6.35 |
7.4 |
4.3 |
2.3 |
24.3 |
| Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=24A Material: brass |
| Item No. |
Thickness of material |
Dimension(mm) |
Color |
| B |
D |
d |
L |
| FDFD5.5-250 |
0.8×6.35 |
7.4 |
5.7 |
3.4 |
24.3 |
Yellow |
