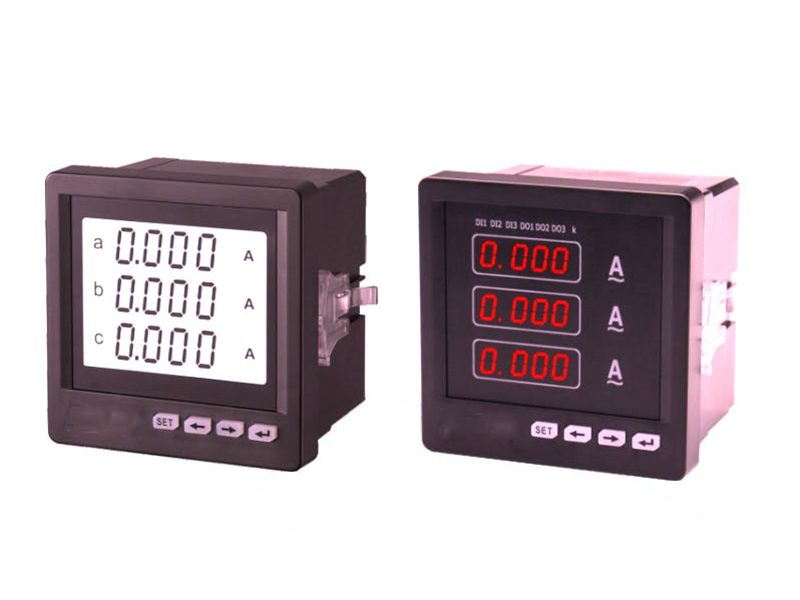

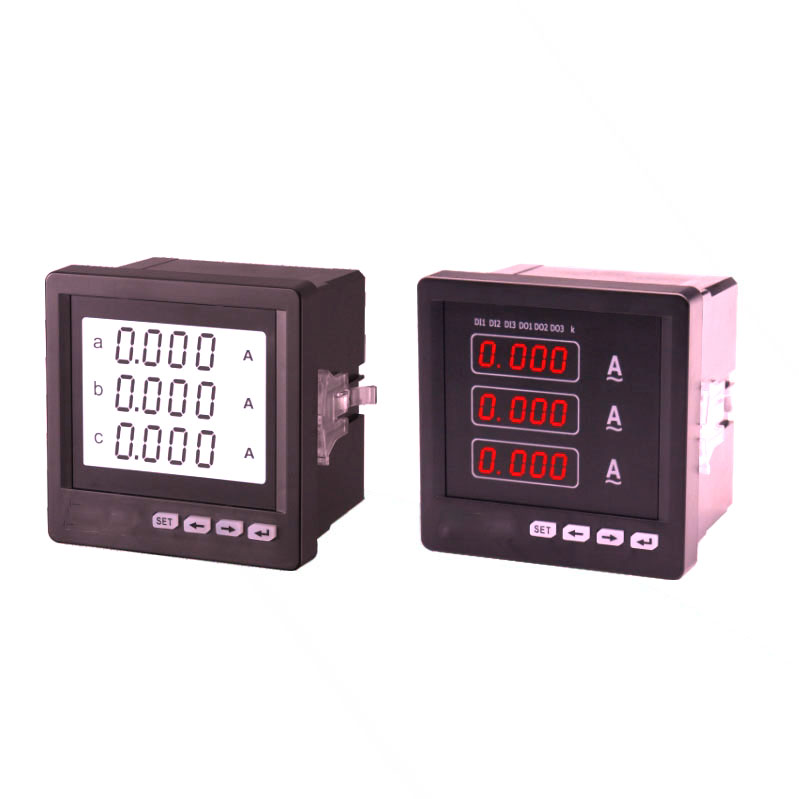

Three Phase Digital Current Meter | |||||
Picture | Performance Characteristics | Accuracy of Measurement | Function Module | Signal Input | Auxiliary Power Supply |
● High precision measurement of three phase AC/DC current ● Provide the digital tube display,local data query ● Programmable CT ratio ● Support for RS-485 communication, Modbus-RTU protocol ● Support for switch input,output,analog transmitting output ● A variety of dimensions to meet the different requirements of the electric distribution box |
● Current:level 0.5 | ● Communication Interface: 1 way RS-485 communication,Modbus- RTU protocol ● Baud Rate: 1200~9600bps,the default is 2400bps ● Switch Input: 4 ways ● Switch Output: 3 ways(capacity:AC 250V/5A,DC 30V/5A) ● Transmission Output: 3 ways(analog output:0/4~20mA or 0~5/10V) |
● Connection Mode: three phase three wires ● Rated Current: AC1A,AC5A ● Overload Voltage: 1.2 times (Continued), 2 times/second (instantaneous) ● Power Consumption: current:<0.4VA/phase ● Impedance:current:<20mΩ ● The Frequency: 45~65Hz or DC |
● Working range: AC 220V ● Power Consumption: <4VA |
|

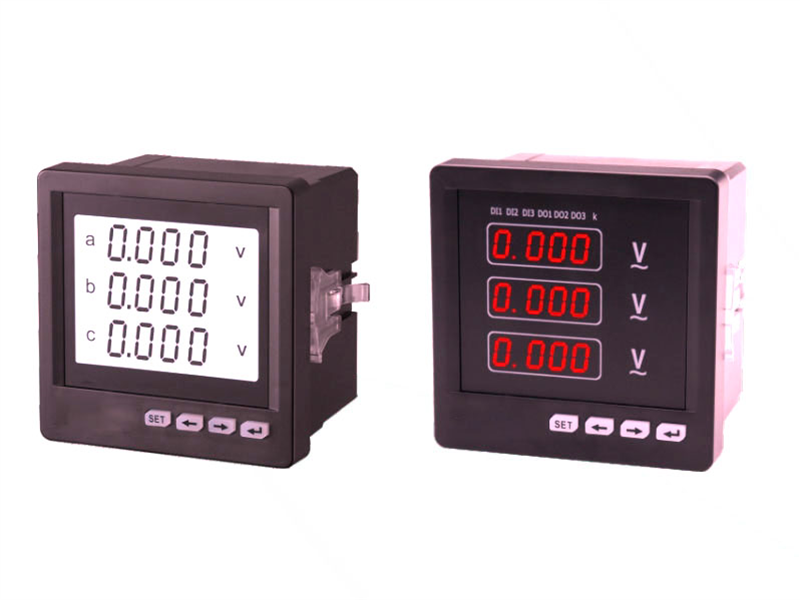

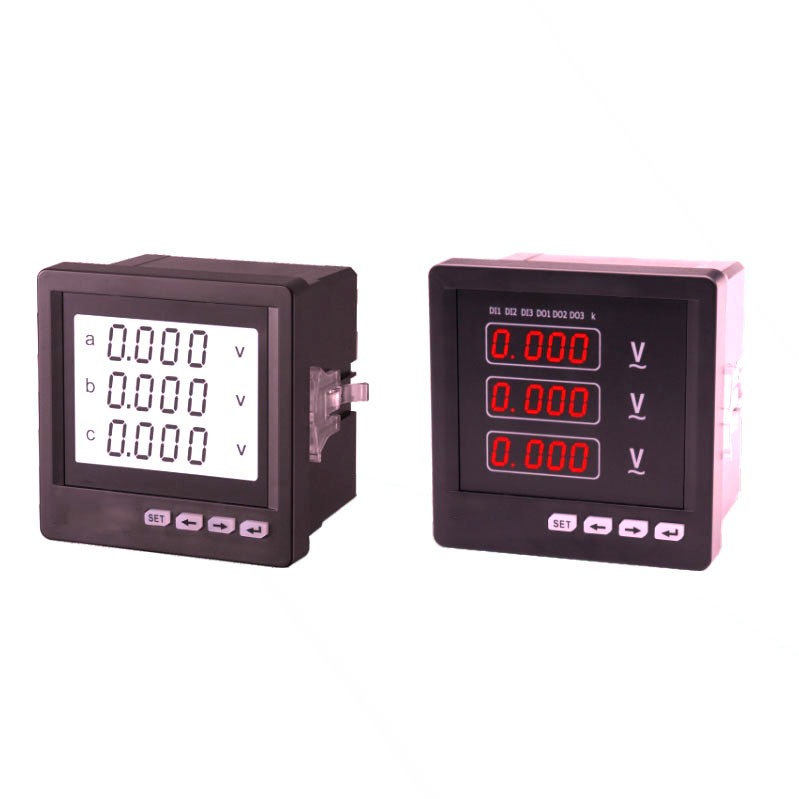

Three Phase Digital Voltage Meter | |||||
Picture | Performance Characteristics | Accuracy of Measurement | Function Module | Signal Input | Auxiliary Power Supply |
● High precision measurement of three phase AC voltage ● Provide the digital tube display,local data query ● Programmable PT ratio ● Support for RS-485 communication, Modbus-RTU protocol ● Support for switch input,output,analog transmitting output ● A variety of dimensions to meet the different requirements of the electric distribution box |
● Voltage:level 0.5 | ● Communication Interface: 1 way RS-485 communication,Modbus- RTU protocol ● Baud Rate: 1200~9600bps,the default is 2400bps ● Switch Input: 4 ways ● Switch Output: 3 ways(capacity:AC 250V/5A,DC 30V/5A) ● Transmission Output: 3 ways(analog output:0/4~20mA or 0~5/10V) |
● Connection Mode: three phase four wires ● Rated Voltage: AV 0-600V ● Overload Voltage: 1.2 times (Continued), 2 times/second (instantaneous) ● Power Consumption: <1VA/phase(Voltage) ● Impedance:>300KΩ ● The Frequency: 45~65Hz or DC |
● Working range: AC 220V ● Power Consumption: <4VA |
|

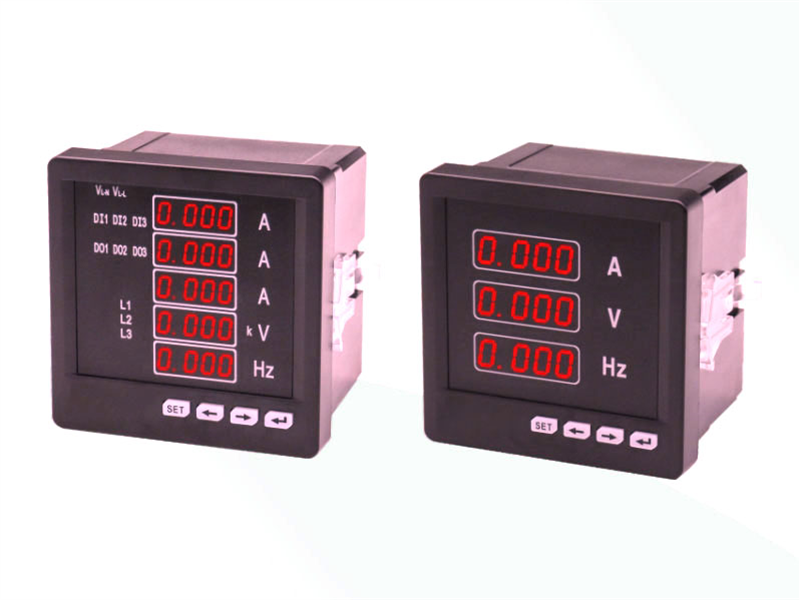

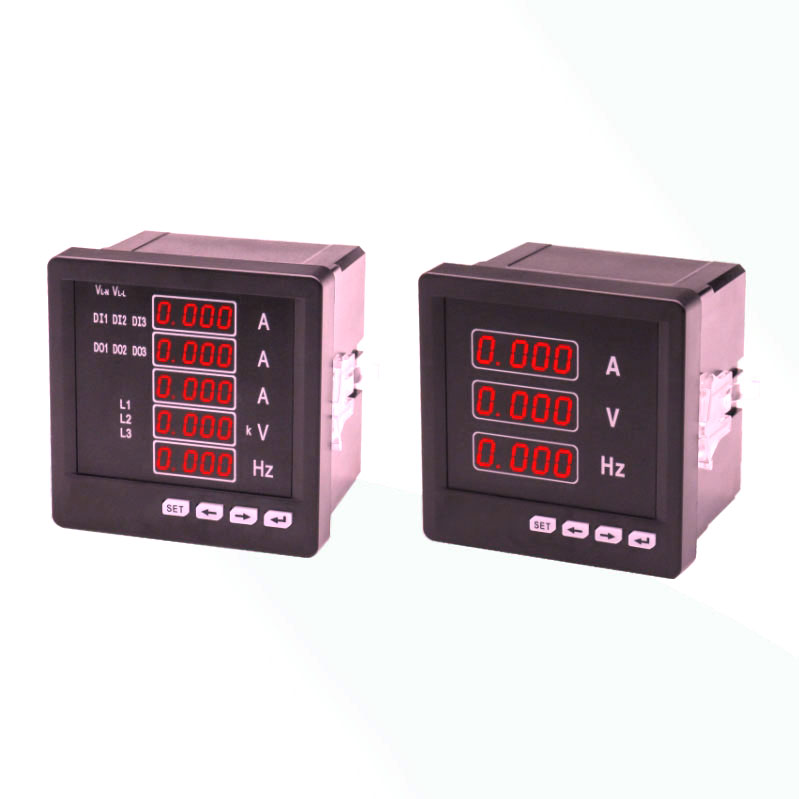

Digital Combined Meter | |||||
Picture | Performance Characteristics | Technical Index | Function Module | Signal Input | Auxiliary Power Supply |
● High precision measurement of single/three phase voltage,three phase current,active power, reactive power, apparent power,power factor, frequency ● Provide the digital tube display,local data query ● Programmable PT/CT ratio ● Support for RS-485 communication, Modbus-RTU protocol ● Support for switch input,output,analog transmitting output ● A variety of dimensions to meet the different requirements of the electric distribution box |
Accuracy of measurement ● Voltage:level 0.5 ● Current: level 0.5 ● Active Power:level 0.5 ● Reactive Power:level 0.5 ● Power Factor:level 0.5 ● Frequency:±0.02Hz ● Active Electric Energy: class 0.5s or class 0.2s ● Reactive Energy: Class 1 or Class 2 |
● Communication Interface: 1 way RS-485 communication,Modbus- RTU protocol ● Baud Rate: 1200~9600bps,the default is 2400bps ● Switch Input: 4 ways ● Switch Output: 3 ways(capacity:AC 250V/5A,DC 30V/5A) ● Transmission Output: 3 ways(analog output:0/4~20mA or 0~5/10V) |
● Connection Mode: Single phase two wires,three phase four wires,three phase three wires ● Rated Voltage: AC 0-600V ● Rated Current: AC1A,AC5A ● Overload Voltage: 1.2 times (Continued), 2 times/second (instantaneous) ● Power Consumption: voltage:<1VA/phase current:<0.4VA/phase ● Impedance:>300KΩ, current:<20mΩ ● The Frequency: 45~65Hz |
● Working range: AC 220V ● Power Consumption: <4VA |
|

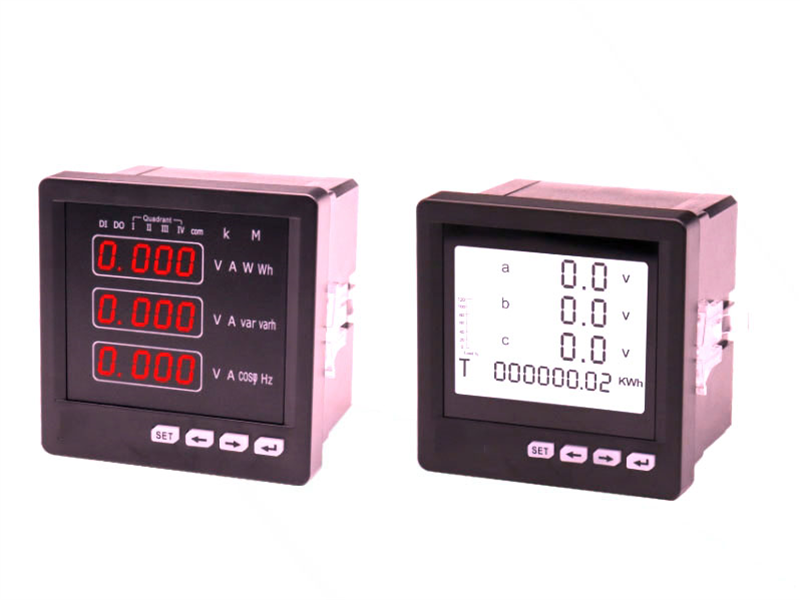

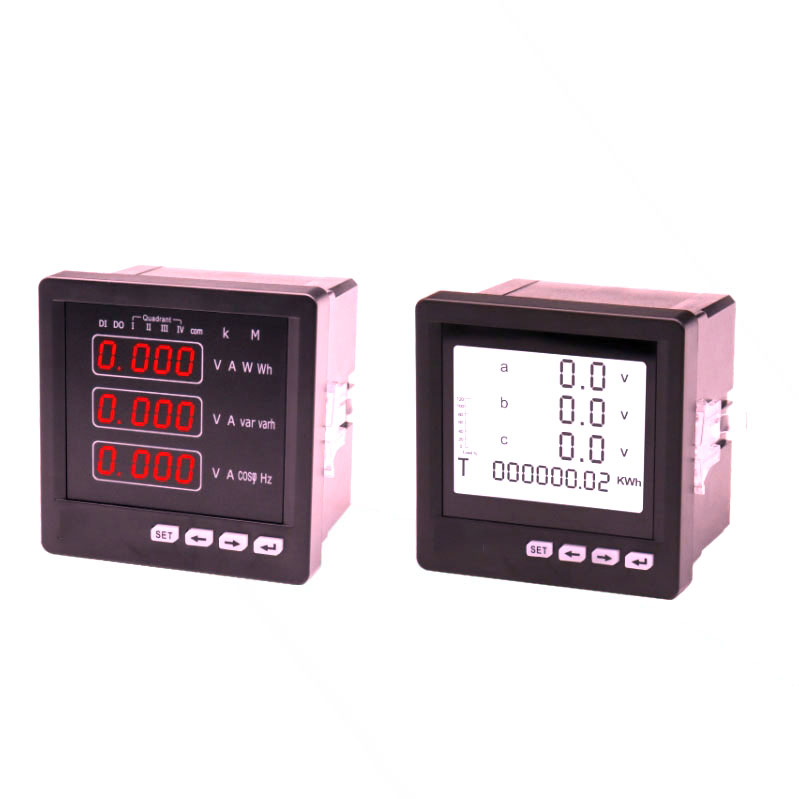

Three Phase Digital Multimeter | |||||
Picture | Performance Characteristics | Technical Index | Function Module | Signal Input | Auxiliary Power Supply |
● High precision measurement of three phase voltage,three phase current,active power, reactive power, apparent power,power factor, frequency of electric parameters ● Forward and reverse active or reactive energy measurement ● Division of electric energy metering, time-sharing power ● Measurement of three-phase voltage, three-phase current total harmonic distortion (THD),2-31 odd harmonic component ● Provide the digital tube display,local data query ● Menu button intuitive,simple operation ● Programmable CT/PT ratio ● Provide multiple circuit leakage current monitoring |
Accuracy of measurement ● Voltage:level 0.5 ● Current: level 0.5 ● Active Power:level 0.5 ● Reactive Power:level 0.5 ● Power Factor:level 0.5 ● Frequency:±0.02Hz ● Active Electric Energy: class 0.5s or class 0.2s ● Reactive Energy: Class 1 or Class 2 |
● Communication Interface: 1 way RS-485 communication,Modbus- RTU protocol ● Baud Rate: 1200~9600bps,the default is 2400bps ● Switch Input: 4 ways ● Switch Output: 3 ways(capacity:AC 250V/5A,DC 30V/5A) ● Transmission Output: 3 ways(analog output:0/4~20mA or 0~5/10V) |
● Connection Mode: Single phase two wires,three phase four wires,three phase three wires ● Rated Voltage: AC 0-600V ● Rated Current: AC1A,AC5A ● Overload Voltage: 1.2 times (Continued), 2 times/second (instantaneous) ● Power Consumption: voltage:<1VA/phase current:<0.4VA/phase ● Impedance:>300KΩ, current:<20mΩ ● The Frequency: 45~65Hz |
● Working range: AC 220V ● Power Consumption: <4VA |
Three Phase Digital Current Meter | |||||||||
Function Model NO. |
Measurement | Extended function(optional) | Display | ||||||
Three phase AC current |
Switching input |
Switching output |
Analog output |
Communication interface |
LED | LCD | |||
RM-3AA33 | √ | 2 | 2 | 1 | 1 | √ | _ | ||
RM-3AA3Y | √ | 2 | 2 | 1 | 1 | _ | √ | ||
RM-3AA63 | √ | 2 | 2 | 1 | 1 | √ | _ | ||
RM-3AA6Y | √ | 2 | 2 | 1 | 1 | _ | √ | ||
Three Phase Digital Voltage Meter | |||||||||
Function Model NO. |
Measurement | Extended function(optional) | Display | ||||||
Three phase AC current |
Switching input |
Switching output |
Analog output |
Communication interface |
LED | LCD | |||
RM-3AV33 | √ | 2 | 2 | 3 | 1 | √ | _ | ||
RM-3AV3Y | √ | 2 | 2 | 3 | 1 | _ | √ | ||
RM-3AV63 | √ | 2 | 2 | 3 | 1 | √ | _ | ||
RM-3AV6Y | √ | 2 | 2 | 3 | 1 | _ | √ | ||
Digital Combined Meter | |||||||||
Function Model NO. |
Measurement | Extended function(optional) | Display | ||||||
Current | Voltage | Hz | Switching input |
Switching output |
Analog output |
RS485 | LED | LCD | |
RM-UIF33 | √ | √ | √ | 2 | 2 | 3 | 1 | √ | _ |
RM-UIF63 | √ | √ | √ | 2 | 2 | 3 | 1 | √ | _ |
RM-3UIF33 | √ | √ | √ | 2 | 2 | 3 | 1 | √ | _ |
RM-3UIF35 | √ | √ | √ | 2 | 2 | 3 | 1 | √ | _ |
RM-3UIF63 | √ | √ | √ | 2 | 2 | 3 | 1 | √ | _ |
Three Phase Digital Multimeter | |||||||||
Function Model NO. |
Measurement | Extended function(optional) | Display | ||||||
A,V,Hz,W,Var, Cos,Kwh,Kvar | Multirate | Harmonic Measuring | Switching input |
Switching output |
Analog output |
RS485 | LED | LCD | |
RM-3D3 | √ | _ | _ | 4 | 4 | 4 | 2 | √ | _ |
RM-3D3Y | √ | _ | _ | 4 | 4 | 4 | 2 | _ | √ |
RM-3FD3Y | √ | √ | _ | 4 | 4 | 4 | 2 | _ | √ |
RM-3HD3Y | √ | _ | √ | 4 | 4 | 4 | 2 | _ | √ |
RM-3FHD3Y | √ | √ | √ | 4 | 4 | 4 | 2 | _ | √ |
RM-3D6 | √ | _ | _ | 2 | 2 | 2 | 2 | √ | _ |
RM-3D6Y | √ | _ | _ | 2 | 2 | 2 | 2 | _ | √ |
RM-3FD6Y | √ | √ | _ | 2 | 2 | 2 | 2 | _ | √ |
RM-3HD6Y | √ | _ | √ | 2 | 2 | 2 | 2 | _ | √ |
RM-3FHD6Y | √ | √ | √ | 2 | 2 | 2 | 2 | _ | √ |
