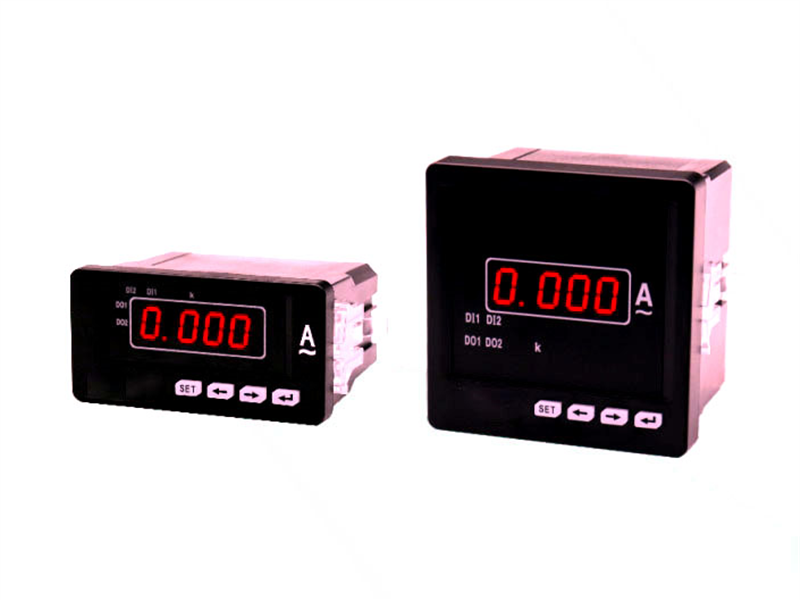

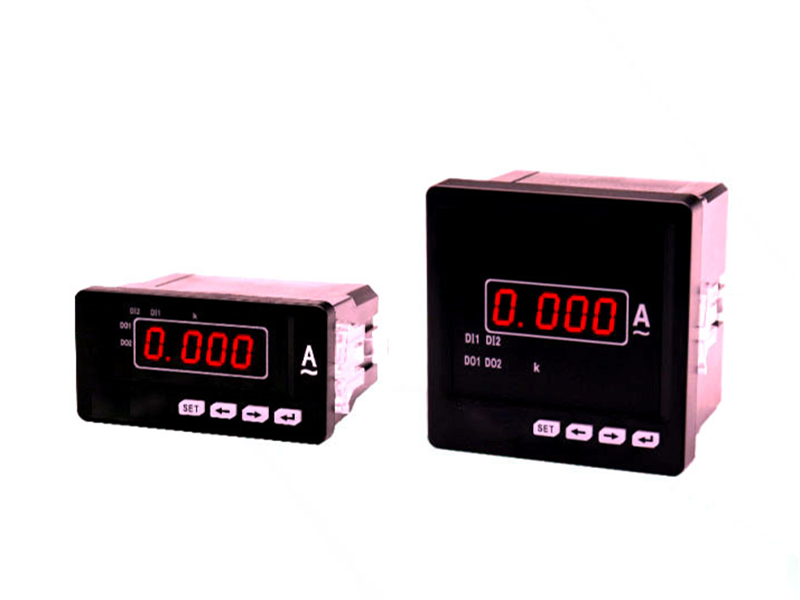

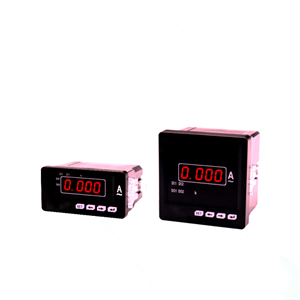

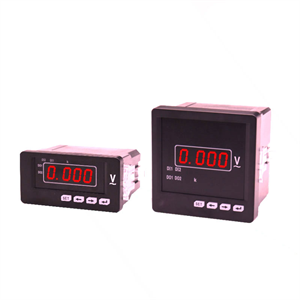

Single Phase Digital Current Meter
Picture Performance Characteristics Accuracy of Measurement Function Module Signal Input Auxiliary Power Supply
● High precision measurement of single
     phase AC/DC current
● Provide the digital tube display,local
    data query
● Programmable CT ratio
● Support for RS-485 communication,
     Modbus-RTU protocol
● Support for switch input，output，analog
     transmitting output
● A variety of dimensions to meet the
    different requirements of the electric
    distribution box		 ● Current:level 0.5 ● Communication Interface:
     1 way RS-485 communication,Modbus- RTU
      protocol
● Baud Rate:
     1200~9600bps,the default is 2400bps
● Switch Input:
      2 ways
● Switch Output:
      2 ways(capacity:AC 250V/5A,DC 30V/5A)
● Transmission Output:
     1 ways(analog output:0/4~20mA or 0~5/10V)		 ● Connection Mode:
     single phase two wires
● Rated Current:
      AC1A,AC5A,DC0-10A
● Overload Voltage:
      1.2 times (Continued),
      2 times/second  (instantaneous)
● Power Consumption:
      current:<0.4VA/phase
● Impedance:current:<20mΩ
● The Frequency:
     45~65Hz or DC		 ● Working range：
     AC 220V
● Power Consumption:
      <4VA

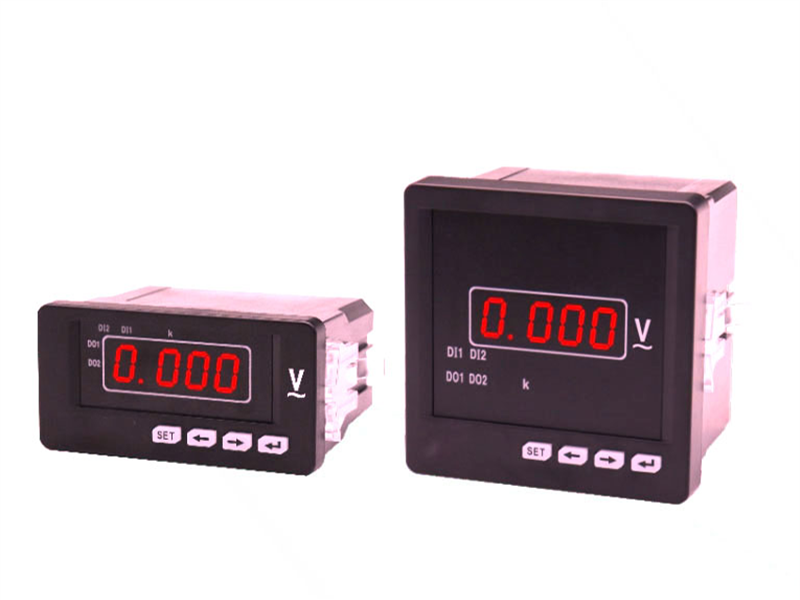

Single Phase Digital Voltage Meter
Picture Performance Characteristics Accuracy of Measurement Function Module Signal Input Auxiliary Power Supply
● High precision measurement of single
     phase AC/DC current
● Provide the digital tube display,local
    data query
● Programmable PT ratio
● Support for RS-485 communication,
     Modbus-RTU protocol
● Support for switch input，output，analog
     transmitting output
● A variety of dimensions to meet the
    different requirements of the electric
    distribution box		 ● Voltage:level 0.5 ● Communication Interface:
     1 way RS-485 communication,Modbus- RTU
      protocol
● Baud Rate:
     1200~9600bps,the default is 2400bps
● Switch Input:
      2 ways
● Switch Output:
      2 ways(capacity:AC 250V/5A,DC 30V/5A)
● Transmission Output:
     1 ways(analog output:0/4~20mA or 0~5/10V)		 ● Connection Mode:
     single phase two wires
● Rated Voltage：
      AV 0-600V/DC 0-1000V
● Overload Voltage:
      1.2 times (Continued),
      2 times/second  (instantaneous)
● Power Consumption:
      <1VA/phase(Voltage)
● Impedance:>300KΩ
● The Frequency:
     45~65Hz or DC		 ● Working range：
     AC 220V
● Power Consumption:
      <4VA

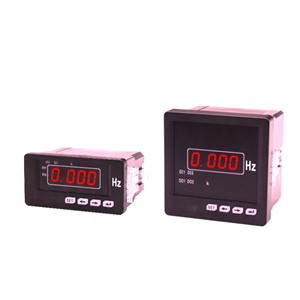

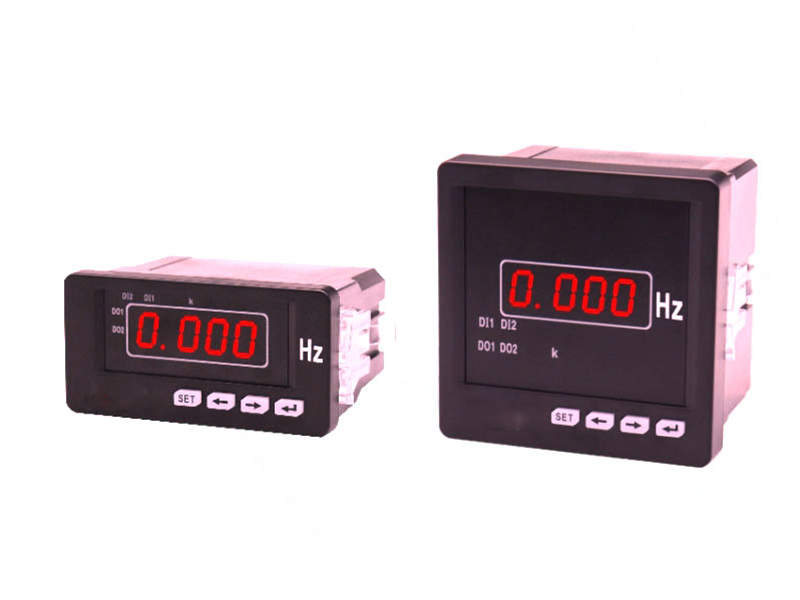

 Digital Frequency Meter
Picture Performance Characteristics Accuracy of Measurement Function Module Signal Input Auxiliary Power Supply
● High precision measurement of frequency
● Provide the digital tube display,local
    data query
● Support for RS-485 communication,
     Modbus-RTU protocol
● Support for switch input，output，analog
     transmitting output
● A variety of dimensions to meet the
    different requirements of the electric
    distribution box		 ● frequency: ±0.02Hz ● Communication Interface:
     1 way RS-485 communication,Modbus- RTU
      protocol
● Baud Rate:
     1200~9600bps,the default is 2400bps
● Switch Input:
      2 ways
● Switch Output:
      2 ways(capacity:AC 250V/5A,DC 30V/5A)
● Transmission Output:
     1 ways(analog output:0/4~20mA or 0~5/10V)		 ● Connection Mode:
     single phase two wires
● Overload Voltage:
      1.2 times (Continued),
      2 times/second  (instantaneous)
● Power Consumption:
      <1VA/phase(Voltage)
● Impedance:>300KΩ
● The Frequency:
     45~65Hz or DC		 ● Working range：
     AC 220V
● Power Consumption:
      <4VA

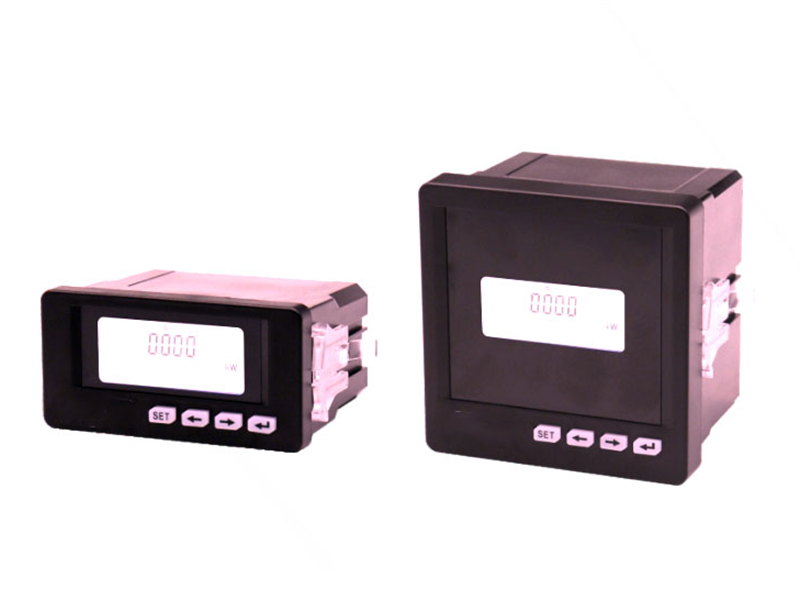

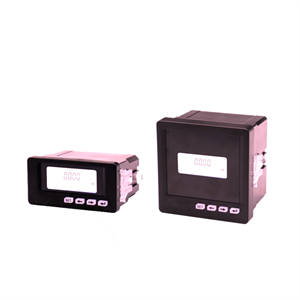

  Single Phase Digital Multimeter
Picture Performance Characteristics Technical Index Function Module Signal Input Auxiliary Power Supply
● High precision measurement of single
     phase voltage,current,active power,
     reactive power,apparent power,power
     factor,frequency of electric parameters
● Forward and reverse active or reactive
     energy measurement
● Division of electric energy metering,
     time-sharing power timing meter
     reading
● Measurement of single phase voltage,
     single phase current total harmonic
     distortion (THD),2-31 odd harmonic
     component
● Provide the digital tube display,local
     data query
●  Menu button intuitive,simple operation
● Programmable CT/PT ratio
●  Provide multiple circuit leakage current
      monitoring                                                     ● Provide multiple loop control nodes,
     can be used for the alarm,trip control
● Support for fire control,remote cut off
      the fault circuit
● Support for RS-485 communication,
     Modubus-RTU protocol
● Support for switching input,output,
     analog transmitting output
● Convenientinstallation,wiring is simple,
     small engineering quantity
● To be completed by SCADA,PLC in
     a variety of communications software
     networking


  Accuracy of measurement
● Voltage:level 0.5
● Current: level 0.5
● Active Power:level 0.5
● Reactive Power:level 0.5
● Power Factor:level 0.5
● Frequency:±0.02Hz
● Active Electric Energy:
   class 0.5s or class 0.2s
● Reactive Energy:
   Class 1 or Class 2		 ● Communication Interface:
     1 way RS-485 communication,Modbus- RTU
      protocol
● Baud Rate:
     1200~9600bps,the default is 2400bps
● Switch Input:
     4 ways
● Switch Output:
     3 ways(capacity:AC 250V/5A,DC 30V/5A)
● Transmission Output:
     3 ways(analog output:0/4~20mA or 0~5/10V)
● Electric Energy Pulse Output:2 ways
● Constant:8000imp/KWh(Kvarh)		 ● Connection Mode:
     single phase two wires
● Rated Voltage：
     AV 0-600V/DC 0-1000V
● Rated Current:
     AC1A,AC5A,DC0-10A
● Overload Voltage:
     1.2 times (Continued),
     2 times/second  (instantaneous)
● Power Consumption:
     voltage:<1VA/phase
     current:<0.4VA/phase
● Impedance:>300KΩ
   current:<20mΩ
● The Frequency:
     45~65Hz		 ● Working range：
     AC 220V
● Power Consumption:
      <4VA



Single Phase Digital Current Meter
          Function


Model NO.		 Measurement  Extended function(optional) Display
AC current DC current Switching
input		 Switching
output		 Analog
output		 Communication
interface		 LED LCD
RM-AA31 √ —— 2  2  1  1  √ ——
RM-DA31 —— √ 2  2  1  1  √ ——
RM-AA51 √ —— 2  2  1  1  √ ——
RM-DA51 —— √ 2  2  1  1  √ ——
RM-AA61 √ —— 2  2  1  1  √ ——
RM-DA61 —— √ 2  2  1  1  √ ——
RM-AA3Y √ —— 2  2  1  1  —— √
RM-AA6Y √ —— 2  2  1  1  —— √
RM-AA5Y √ —— 2  2  1  1  —— √
Single Phase Digital Voltage Meter
          Function


Model NO.		 Measurement  Extended function(optional) Display
AC voltage DC voltage Switching
input		 Switching
output		 Analog
output		 Communication
interface		 LED LCD
RM-AV31 √ —— 2  2  1  1  √ ——
RM-DV31 —— √ 2  2  1  1  √ ——
RM-AV51 √ —— 2  2  1  1  √ ——
RM-DV51 —— √ 2  2  1  1  √ ——
RM-AV61 √ —— 2  2  1  1  √ ——
RM-DV61 —— √ 2  2  1  1  √ ——
RM-AV3Y √ —— 2  2  1  1  —— √
RM-AV6Y √ —— 2  2  1  1  —— √
RM-AV5Y √ —— 2  2  1  1  —— √
Digital Frequency Meter
          Function


Model NO.		 Measurement  Extended function(optional) Display
Three phase
AC current		 Switching
input		 Switching
output		 Transmission
output		 Communication
interface		 LED LCD
RM-F31 √ 2  2  1  1  √ ——
RM-F51 √ 2  2  1  1  √ ——
RM-F61 √ 2  2  1  1  √ ——
Single Phase Digital Multimeter
          Function


Model NO.		 Measurement  Extended function(optional) Display
AC:A,V,Hz,W,var,cos,kWh,kvar DC:A,V,W,kWh Switching
input		 Switching
output		 Analog
output		 RS485 LED LCD
RM-D3Y √   2  2  1  1  —— √
RM-D6Y √   2  2  1  1  —— √
RM-D5Y √   2  2  1  1  —— √
RM-DD3Y   √ 2  2  1  1  —— √
RM-DD6Y   √ 2  2  1  1  —— √
RM-DD5Y   √ 2  2  1  1  —— √
