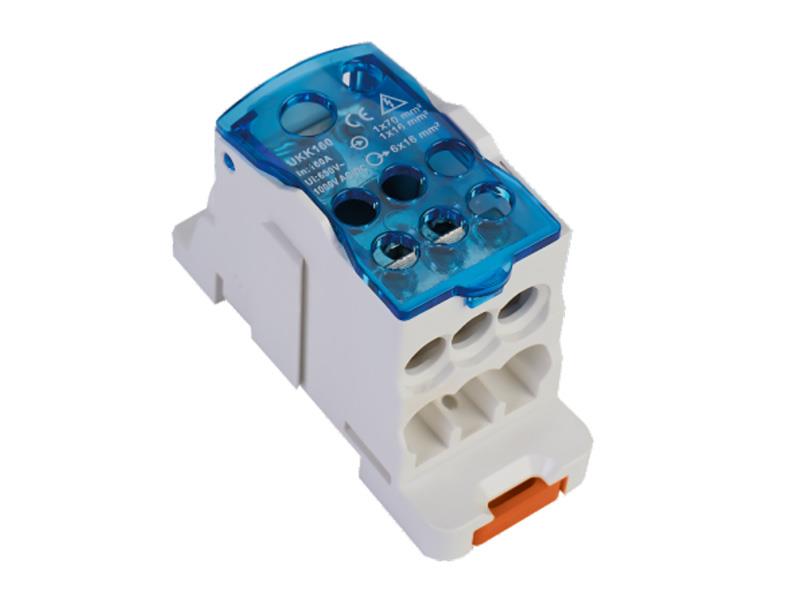

UKK160A Din Rail Power Distribution Box

Place of Origin Zhejiang,China
Brand Name CHSO
Model Number UKK160
Color Blue  and Gray / Customized
Number of Contacts 1-10
Conduct Siza 1-5 AWG
Material Flame resistant Nylon PA66,brass conductor
Certificate ISO9001/CE/ROHS
Mouning Type DIN Rail NS 35
Max Voltage 1000V
Max Current 160A

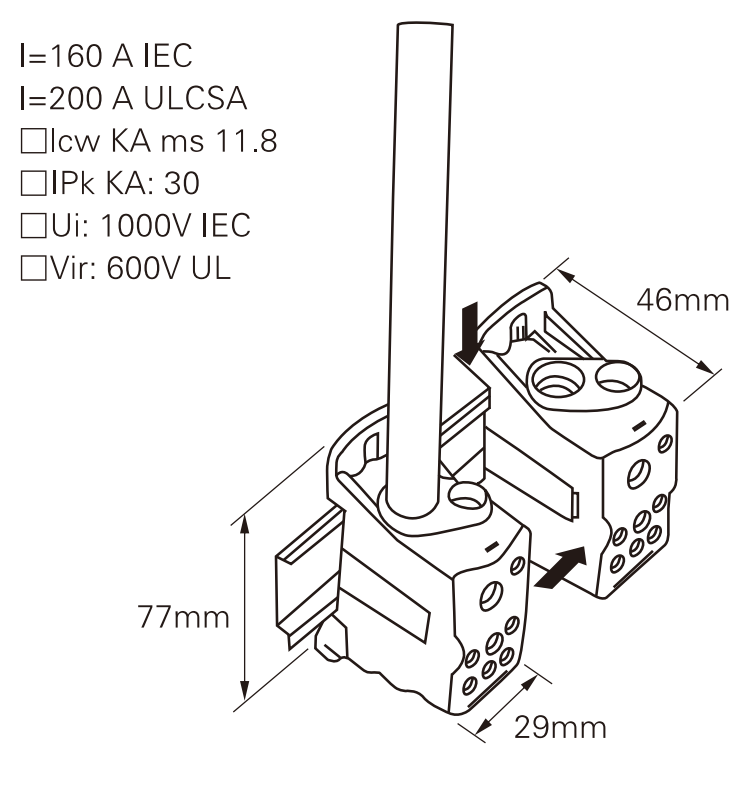

Length / Wide / Height (mm) L66/W29.3/H47
Output Specification 4X6/2X16mm2
Entry Specification 1X16mm2
A.W.G 24-3/0
Screw M2.5
