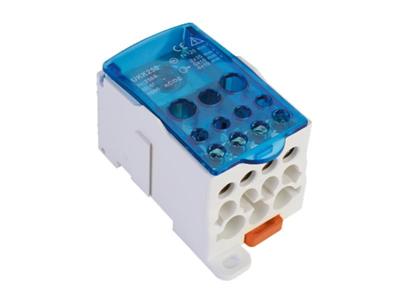

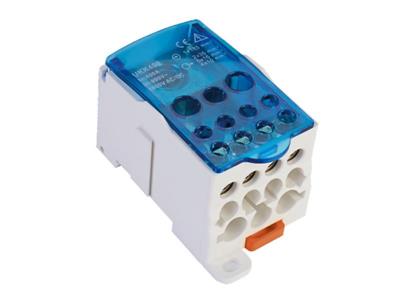

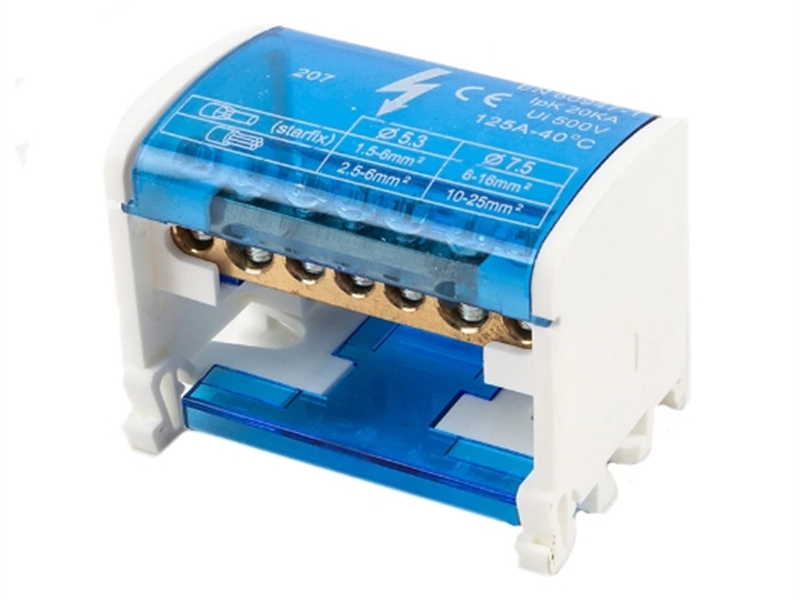

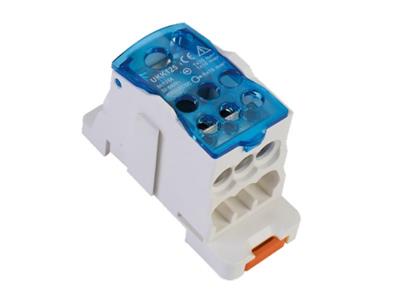

Power Distribution Box

Technical Specifications Metal Material: Brass (Primary Color) Shell Material: High-Quality PA Nylon (Polyamide) Features: Thickened Copper Construction: Ensures high current-carrying capacity and overcurrent resistance. Enhanced Conductivity: Stable electrical performance with anti-oxidation design for reliable wiring. Durability & Safety: Robust PA nylon shell guarantees long-term reliability and quality assurance.
Place of Origin Zhejiang, China
Number of Contacts  1~10
Conductor Size 11 - 20 AWG
Type Screw
Model Number 207/211/215/407/411/415
Color Grey and Blue, other color can be customized
Mounting Type DIN Rail NS 35/7.5
Application Distribution Panel
Certificate CE/RoHS/CQC/ISO 9001
Hole Qty 2X7 / 2X11 / 2X15 / 4X7 / 4X11 / 4X15
Brass Bar 6.5X12 mm
Material Flame resistant Nylon PA66, brass conductor
Rated Voltage 500V
Item Power Distribution Junction Box Terminal Block Connector
