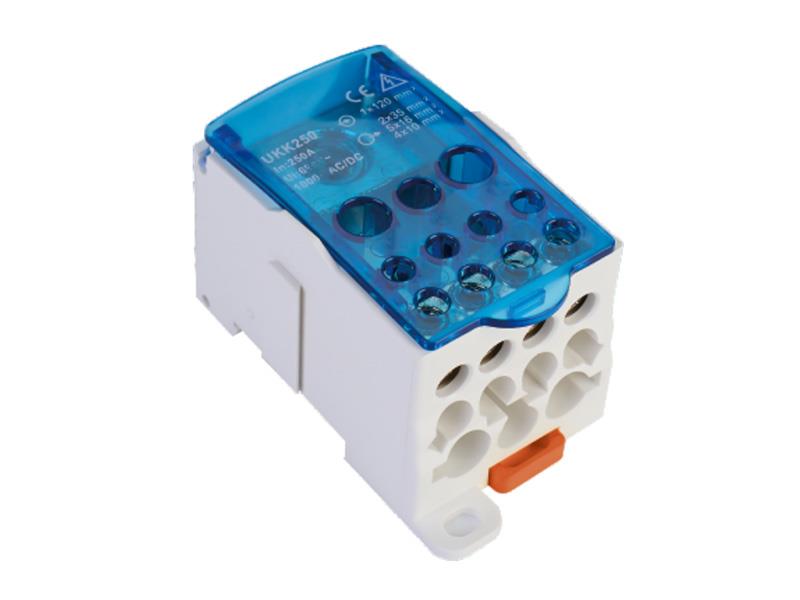

UKK250A Din Rail Power Distribution Box

Place of Origin Zhejiang,China
Brand Name CHSO
Model Number UKK 250A
Number of Contacts 1-10
Conductor Size 11-20   AWG
Type Screw
Conductor Size 10-120mm
Rated Voltage/Current 690V/250A

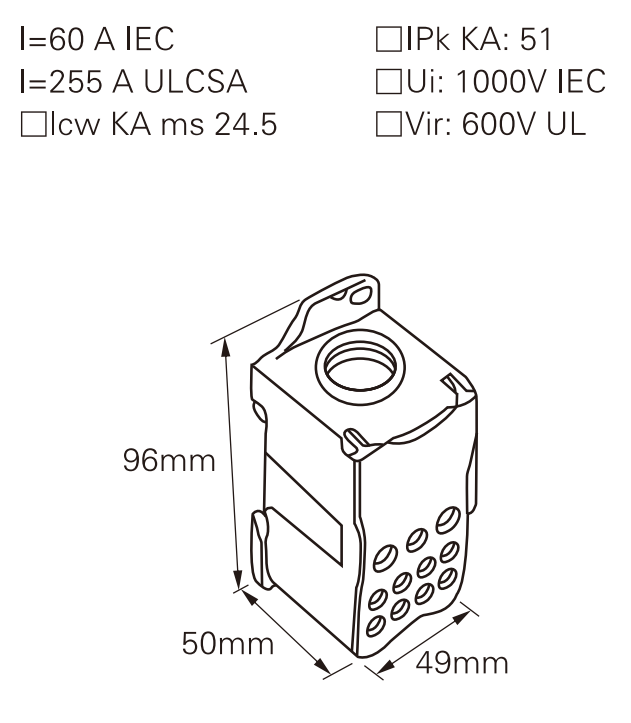

Length/Height/Wide (mm) L96/H50/W47.8 mm
Color Blue and Gray /Customized
Material Flame resistant Nylon PA66,brass conductor
Certificate ISO9001/CE/ROHS
Mounting Type DIN Rail NS 35
ltem Universal Power Junction Distribution Box Block
Output Specification 2X35/5X16/4X10     mm
Entry Specification 1X120mm
