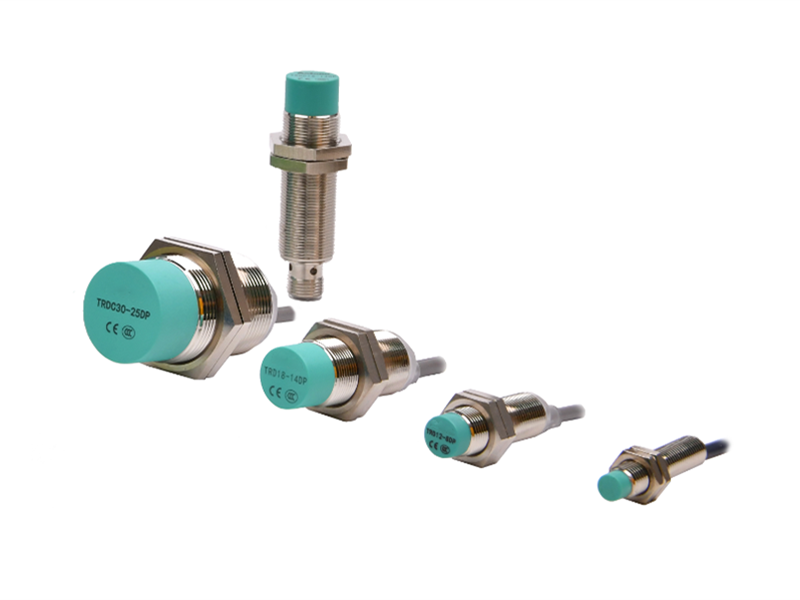

| Model | Standard | DC 3-wire |

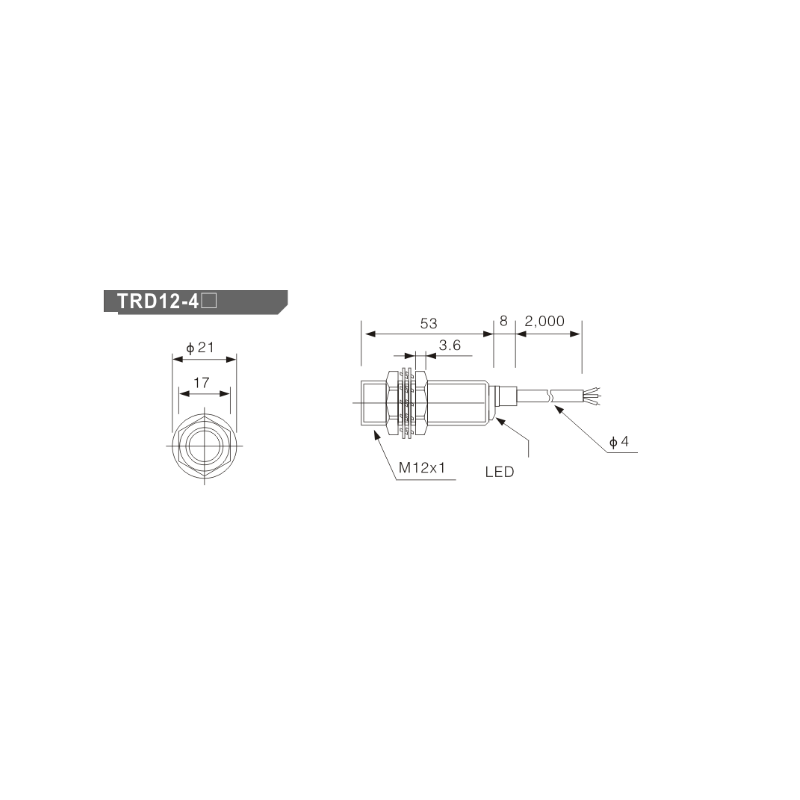

TRD12-4DN TRD12-4DN2 TRD12-4DP TRD12-4DP2 |
TRD12-8DN TRD12-8DN2 TRD12-8DP TRD12-8DP2 |
TRD18-7DN TRD18-7DN2 TRD18-7DP TRD18-7DP2 |
TRD18-14DN TRD18-14DN2 TRD18-14DP TRD18-14DP2 |
TRD30-15DN TRD30-15DN2 TRD30-15DP TRD30-15DP2 |
TRD30-25DN TRD30-25DN2 TRD30-25DP TRD30-25DP2 |
DC 2-wire |
TRD12-4DO TRD12-4DC |
TRD12-8DO TRD12-8DC |
TRD18-7DO TRD18-7DC |
TRD18-14DO TRD18-14DC |
TRD30-15DO TRD30-15DC |
TRD30-25DO TRD30-25DC |
||
| Connector | DC 3-wire |
TRDC12-4DN TRDC12-4DN2 TRDC12-4DP TRDC12-4DP2 |
TRDC12-8DN TRDC12-8DN2 TRDC12-8DP TRDC12-8DP2 |
TRDC18-7DN TRDC18-7DN2 TRDC18-7DP TRDC18-7DP2 |
TRDC18-14DN TRDC18-14DN2 TRDC18-14DP TRDC18-14DP2 |
TRDC30-15DN TRDC30-15DN2 TRDC30-15DP TRDC30-15DP2 |
TRD30-25DN TRD30-25DN2 TRD30-25DP TRD30-25DP2 |
|
| DC 2-wire |
TRDC12-4DO TRDC12-4DC |
TRDC12-8DO TRDC12-8DC |
TRDC18-7DO TRDC18-7DC |
TRDC18-14DO TRDC18-14DC |
TRDC30-15DO TRDC30-15DC |
TRD30-25DO TRD30-25DC |
||
| Detecting distance | 4mm±10% | 8mm±10% | 7mm±10% | 14mm±10% | 15mm±10% | 25mm±10% | ||
| Setting distance | 0 to 2.8mm | 0 to 5.6mm | 0 to 4.9mm | 0 to 9.6mm | 0 to 10.5mm | 0 to 17.5mm | ||
| Standard Detecting target |
Iron 12x12x1mm | Iron 18x18x1mm | Iron 30x30x1mm | |||||
| Hysteresis | Max.10% of detecting distance | |||||||
| Power supply | 12-24VDC（10-30VDC） | |||||||
| Current consumption | DC 3-wire type:Max.10mA DC 2-wire type:Max.0.8mA |
|||||||
| Response frequency |
400HZ | 300HZ | 300HZ | 300HZ | 200HZ | 100HZ | ||
| Residual voltage | DC 3-wire type:Max.1.5V DC 2-wire type:Max.3.5V |
|||||||
| Control output | DC 3-wire type:Max.200mA DC 2-wire type:Max.100mA |
|||||||
| Protection circuit | Reverse polarity protection，Surge absorber，Short circuit protection：M12 M18 M30 DC3-wire type | |||||||
| Indicator | Power supply indicator：Green LED,Operating indicator：Red LED | |||||||
| Insulation resistance | Min.50MΩ(500VDC) | |||||||
| Dielectric strength | 1500VAC 50/60HZ for 1 minute | |||||||
| Vibration | 1 mm amplitude at frequency of 10 to 55HZ in each of X,Y,Z directions for 2 hours | |||||||
| Shock | 500m/s²(50G)X,Y,Z directions for 3times | |||||||
| Operating temperature | -25 to 70℃(non-freezing condtion) | |||||||
| Ambient humidity | 35 to 95%RH | |||||||
| Protection | IP67(IEC Specification) | |||||||
| Material | Case:brass,Detecting surface:ABS | |||||||
