EN

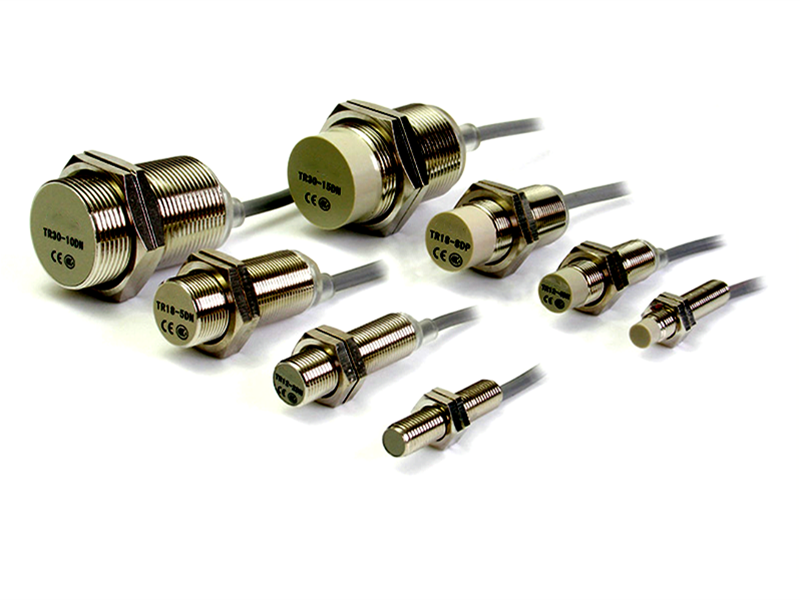

| Model | DC 3-wire |

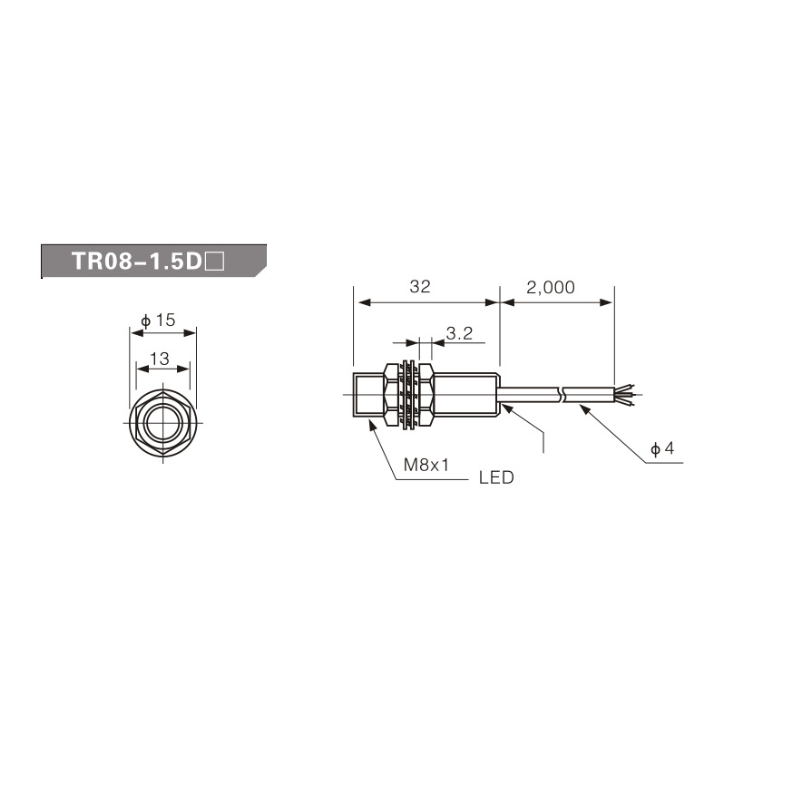

TR08-1.5DN TR08-1.5DN2 TR08-1.5DP TR08-1.5DP2 |
TR08-2DN TR08-2DN2 TR08-2DP TR08-2DP2 |
TR12-2DN TR12-2DN2 TR12-2DP TR12-2DP2 |
TR12-4DN TR12-4DN2 TR12-4DP TR12-4DP2 |
TR18-5DN TR18-5DN2 TR18-5DP TR18-5DP2 |
TR18-8DN TR18-8DN2 TR18-8DP TR18-8DP2 |
TR30-10DN TR30-10DN2 TR30-10DP TR30-10DP2 |
TR30-15DN TR30-15DN2 TR30-15DP TR30-15DP2 |
|
| DC 2-wire |
TR12-2DO TR12-2DC |
TR12-4DO TR12-4DC |
TR18-5DO TR18-5DC |
TR18-8DO TR18-8DC |
TR30-10DO TR30-10DC |
TR30-15DO TR30-15DC |
||||
| AC 2-wire |
TR12-2AO TR12-2AC |
TR12-4AO TR12-4AC |
TR18-5AO TR18-5AC |
TR18-8AO TR18-8AC |
TR30-10AO TR30-10AC |
TR30-15AO TR30-15AC |
||||
| Detecting distance | 1mm±10% | 2mm±10% | 2mm±10% | 4mm±10% | 5mm±10% | 8mm±10% | 10mm±10% | 15mm±10% | ||
| Setting distance | 0 to 0.7mm | 0 to 1.4mm | 0 to 1.4mm | 0 to 2.8mm | 0 to 3.5mm | 0 to 5.6mm | 0 to 7mm | 0 to 10.5mm | ||
| Standard Detecting target |
Iron 8x8x1mm | Iron 12x12x1mm | Iron 18x18x1mm | Iron 30x30x1mm | ||||||
| Hysteresis | Max.10% of detecting distance | |||||||||
| Power supply | DC 3-wire type:12-24VDC(5-30VDC) DC 2-wire type:12-30VDC AC 2-wire type:90-250VAC |
|||||||||
| Current consumption | DC 3-wire type:Max.12mA DC 2-wire type:Max.0.9mA AC 2-wire type:Max.2.2mA |
|||||||||
| Response frequency |
DC | 800HZ | 600HZ | 400HZ | 300HZ | 200HZ | 200HZ | 100HZ | ||
| AC | 20HZ | |||||||||
| Residual voltage | DC 3-wire type:Max.1.5V DC 2-wire type:Max.6V AC 2-wire type:Max.10V |
|||||||||
| Control output | Max.100mA | DC 3-wire type:Max.200mA DC 2-wire type:Max.100mA AC 2-wire type:Max.200mA |
||||||||
| Protection circuit | Reverse polarity protection，Surge absorber，Short circuit protection：M12 M18 M30 DC3-wire type | |||||||||
| Indicator | Power supply indicator：Green LED,Operating indicator：Red LED | |||||||||
| Insulation resistance | Min.50MΩ(500VDC) | |||||||||
| Dielectric strength | 1500VAC 50/60HZ for 1 minute | |||||||||
| Vibration | 1 mm amplitude at frequency of 10 to 55HZ in each of X,Y,Z directions for 2 hours | |||||||||
| Shock | 500m/s²(50G)X,Y,Z directions for 3times | |||||||||
| Operating temperature | -25 to 70℃(non-freezing condtion) | |||||||||
| Ambient humidity | 35 to 95%RH | |||||||||
| Protection | IP67(IEC Specification) | |||||||||
| Material | Case:brass,Detecting surface:ABS | |||||||||
