EN

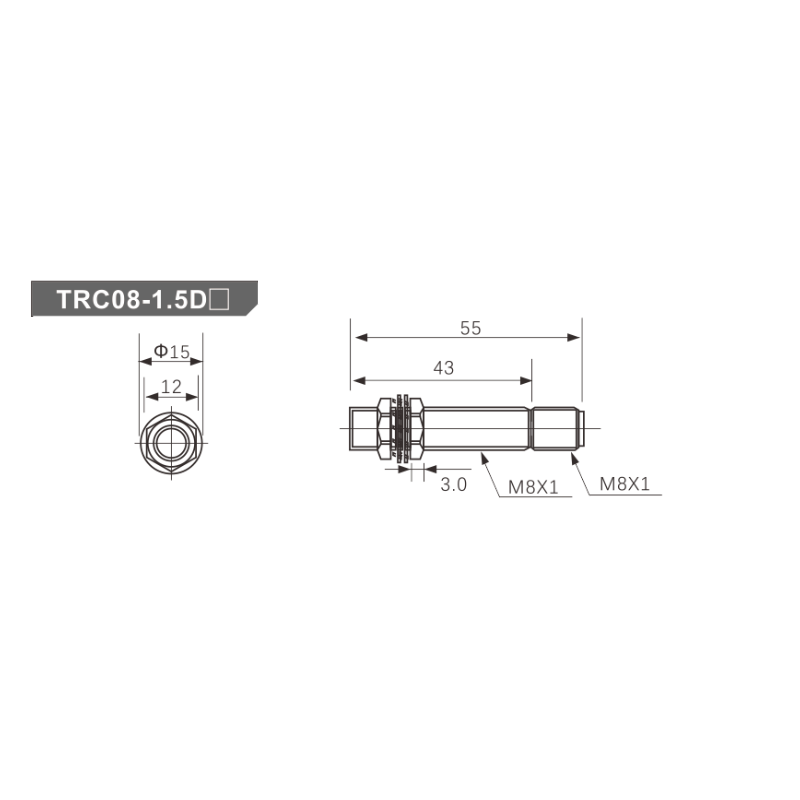

| TRC08-1.5DN TRC08-1.5DN2 TRC08-1.5DP TRC08-1.5DP2 |
TRC08-2DN TRC08-2DN2 TRC08-2DP TRC08-2DP2 |
TRC12-2DN TRC12-2DN2 TRC12-2DP TRC12-2DP2 |
TRC12-4DN TRC12-4DN2 TRC12-4DP TRC12-4DP2 |
TRC18-5DN TRC18-5DN2 TRC18-5DP TRC18-5DP2 |
TRC18-8DN TRC18-8DN2 TRC18-8DP TRC18-8DP2 |
TRC30-10DN TRC30-10DN2 TRC30-10DP TRC30-10DP2 |
TRC30-15DN TRC30-15DN2 TRC30-15DP TRC30-15DP2 |
| TRC12-2DO TRC12-2DC |
TRC12-4DO TRC12-4DC |
TRC18-5DO TRC18-5DC |
TRC18-8DO TRC18-8DC |
TRC30-10D0 TR030-10DC |
TRC30-15DO TRC30-16DC |
||
| TRC12-2AO TRC12-2AC |
TRC12-4AO TRC12-4AC |
TRC18-5AO TRC18-5AC |
TRC18-8AO TRC18-8AC |
TR030-10AO TR030-10AC |
TRC30-15AO TRC30-15AC |
||
| 1.5mm±10% | 2mm±10% | 2mm±10% | 4mm±10% | 5mm±10% | 8mm±10% | 10mm±10% | 15mm±10% |
| 0 to 1mm | 0 to 1.4mm | 0 to1.4mm | 0 to 2.8mm | 0 to 3.5mm | 0 to 5.6mm | 0 to 7mm | 0 to 10,5mm |
| Iron 12x12x1mm | Iron 18x18x1mm | Iron 30x30x1mm | |||||
| Max.10% of detecting distance | |||||||
| DC3-wire type:12-24VDC(5-30VDC) DC2-wire type:12-30VDC AC2-wire type:90-250VAC |
|||||||
| D03-wire type:Max.12mA DC2-wire type:Max.0.9mA AC2-wire type:Max.2.2mA |
|||||||
| 800HZ | 600HZ | 400HZ | 300HZ | 200HZ | 200HZ | 100HZ | |
| 20HZ | |||||||
| DC 3-wire type:Max.1.5V DC 2-wire type:Max.6V AC 2-wire type:Max.10V |
|||||||
| DC 3-wire type:Max.200mA DC 2-wire type:Max.100mA AC 2-wire type:Max.200mA |
|||||||
| Reverse polarity protection,Surge absorber,Short circuit protection：M12 M18 M30 DC3-wire type | |||||||
| Power supply indicator：Green LED, Operating indicator：RedLED | |||||||
| Min.50MΩ (500VDC) | |||||||
| 1500VAC 50/60HZ for1minute | |||||||
| 1 mm amplitude at frequency of 10 to 55HZ in each of X,Y,Z directions for 2 hours | |||||||
| 500m/s²(50G)X,Y,Z directions for 3times | |||||||
| -25 to 70℃(non-freezing condition) | |||||||
| 35 to 95% RH | |||||||
| IP66 (IEC Specification) | |||||||
| Case:brass,Detecting surface:ABS | |||||||
