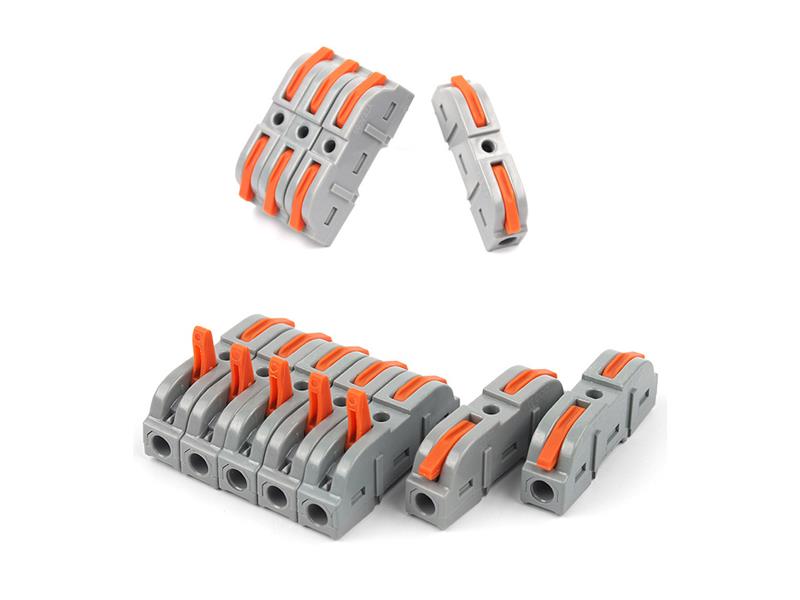

| Product name | Wire Connector | Model Number | CS223-3P |
| Material | PC UL94 V-2 | Contact Material | Copper Tin Plated |
| Wire Range | 0.08 -4mm2(BV)/0.08-2.5mm2(RV) | Strip Length | 10mm/0.39inch |
| Rated Current | 32A | Rated Voltage | 250V |

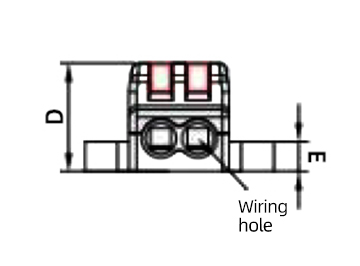

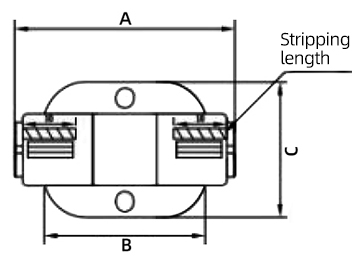

| Part No. | Dimensions(mm) | ||||
| A | B | C | D | E | |
| CS223-2P | 41.4 | 30.28 | 25.5 | 14.5 | 4 |
| CS223-3P | 41.4 | 30.28 | 30.5 | 14.5 | 4 |
| CS223-4P | 41.4 | 30.28 | 35.5 | 14.5 | 4 |
| CS223-5P | 41.4 | 30.28 | 40.5 | 14.5 | 4 |
| CS223-6P | 41.4 | 30.28 | 45.5 | 14.5 | 4 |
| CS223-7P | 41.4 | 30.28 | 50.5 | 14.5 | 4 |
| CS223-8P | 41.4 | 30.28 | 55.5 | 14.5 | 4 |
| CS223-9P | 41.4 | 30.28 | 60.5 | 14.5 | 4 |
| CS223-10P | 41.4 | 30.28 | 65.5 | 14.5 | 4 |
| CS223-11P | 41.4 | 30.28 | 70.5 | 14.5 | 4 |
| CS223-12P | 41.4 | 30.28 | 75.5 | 14.5 | 4 |
| CS223-13P | 41.4 | 30.28 | 80.5 | 14.5 | 4 |
| CS223-14P | 41.4 | 30.28 | 85.5 | 14.5 | 4 |
| CS223-15P | 41.4 | 30.28 | 90.5 | 14.5 | 4 |
| CS223-16P | 41.4 | 30.28 | 95.5 | 14.5 | 4 |
| CS223-17P | 41.4 | 30.28 | 100.5 | 14.5 | 4 |
| CS223-18P | 41.4 | 30.28 | 105.5 | 14.5 | 4 |
| CS223-19P | 41.4 | 30.28 | 110.5 | 14.5 | 4 |
| CS223-20P | 41.4 | 30.28 | 115.5 | 14.5 | 4 |
