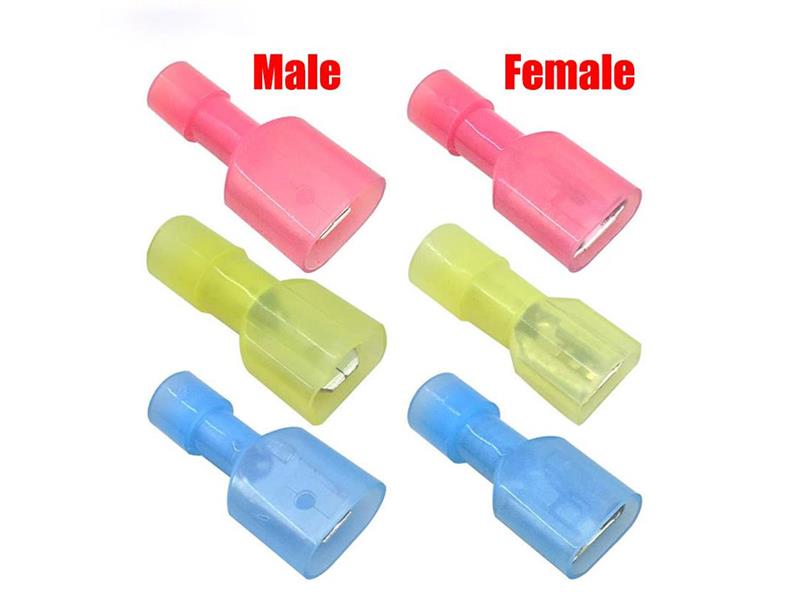

Nylon Fully Insulator Male and Femal Disconnect Terminals-FDFN & MDFN Series
| Max current:Imax=10A Meterial: Brass Insulated Cover Material: Nylon |
| ITEM.NO. |
Specification |

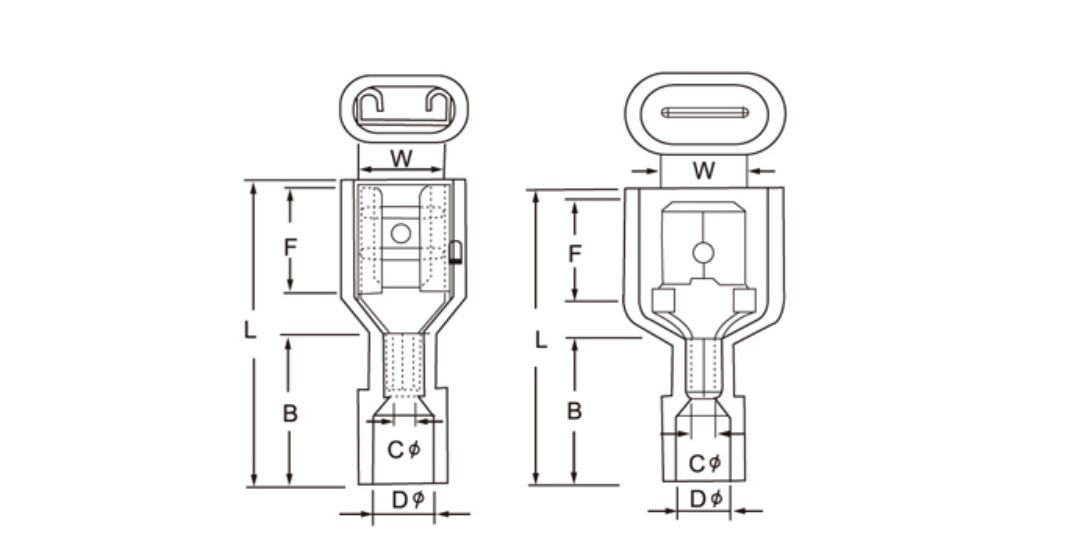

Dimension (mm) |
Fig |
A.W.G |
Color |
| W |
F |
L |
B |
DØ |
CØ |
T |
mm2 |
| FDFN 1.25-250 |
0.8 x 6.35 |
6.6 |
7.3 |
22 |
11 |
4 |
1.7 |
0.4 |
1 |
22-16A.W.G |
Red |
| MDFN 1.25-250 |
6.35 |
7.7 |
23 |
2 |
0.5-1.5mm2 |
| Max current:Imax=15A Meterial: Brass Insulated Cover Material: Nylon |
| ITEM.NO. |
Specification |
Dimension (mm) |
Fig |
A.W.G |
Color |
| W |
F |
L |
B |
DØ |
CØ |
T |
mm2 |
| FDFN 2-250 |
0.8 x 6.35 |
6.6 |
7.3 |
22 |
11 |
4.5 |
2.3 |
0.4 |
1 |
16-14A.W.G |
Blue |
| MDFN 2-250 |
6.35 |
7.7 |
24 |
2 |
1.5-2.5mm2 |
| Max current:Imax=24A Meterial: Brass Insulated Cover Material: Nylon |
| ITEM.NO. |
Specification |
Dimension (mm) |
Fig |
A.W.G |
Color |
| W |
F |
L |
B |
DØ |
CØ |
T |
mm2 |
| FDFN 5.5-250 |
0.8 x 6.35 |
6.6 |
7.3 |
24 |
13 |
6.3 |
3.4 |
0.4 |
1 |
12-10A.W.G |
Yellow |
| MDFN 5.5-250 |
6.35 |
7.7 |
25 |
2 |
4-6mm2 |
