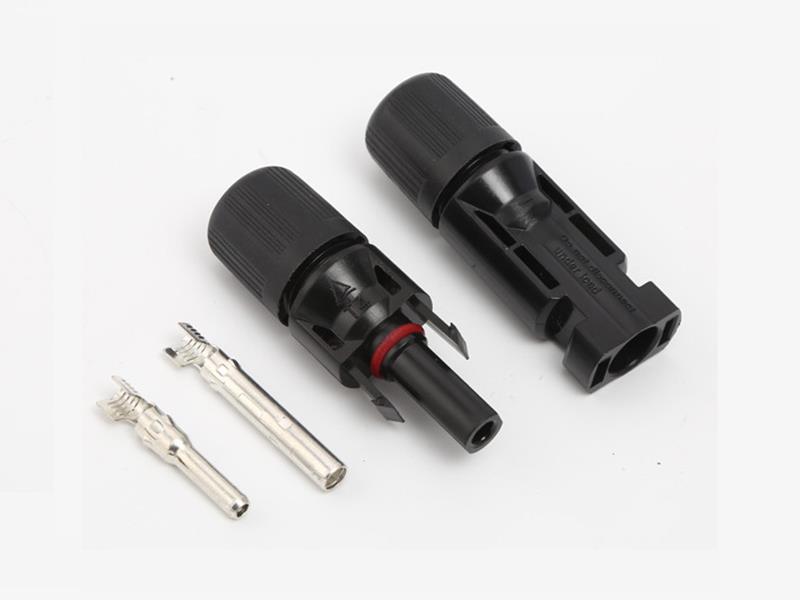

MC4 Photovoltaic Connector
| Product NO. |
MC4 |
| Insulation material |
PPO/PC |
| Rated voltage |
1500V |
| Rated current-2.5mm² |
35A (14AWG) |
| Rated current-4mm² |
40A (12AWG) |
| Rated Current-6mm² |
45A (10AWG) |
| Test voltage |
6KV(50Hz,1Min) |
| Contact material |
Copper, Tin-plated |
| Contact resistance |
Less than 0.35 mΩ |
| Degree of protection |
IP68 |
| Ambient temperature |
-40℃ up to 90℃ |
If you have any enquiry about quotation or cooperation,please feel free to email us at info@chsoelectric.com or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
