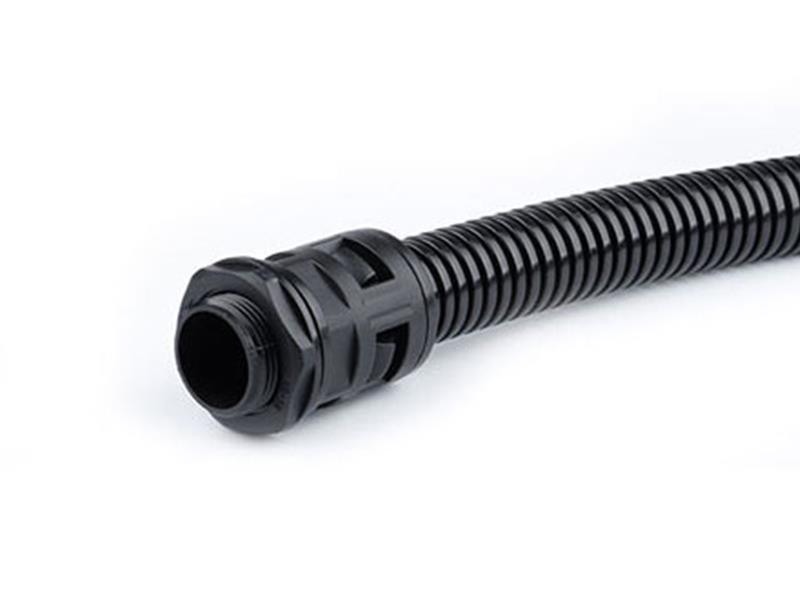

| Thread Dimension Mectric |
AG outer diameter (mm) |
AG inner diameter (mm) |
GL(mm) |
H(mm) |
Packing(pcs) |
| M10×10 |
10.0 |
6.5 |
10.0 |
23.0 |
100 |
| M12×1.5 |
12.0 |
6.5 |
10.0 |
25.0 |
100 |
| M16×1.5 |
16.0 |
6.5 |
10.0 |
25.0 |
100 |
| M10×1.0 |
10.0 |
8.0 |
10.0 |
23.0 |
100 |
| M12×1.5 |
12.0 |
8.0 |
10.0 |
25.0 |
100 |
| M12×1.5 |
12.0 |
7.5 |
11.0 |
25.0 |
100 |
| M16×1.5 |
16.0 |
10.0 |
10.0 |
25.0 |
100 |
| M18×1.5 |
18.0 |
10.0 |
10.0 |
25.0 |
100 |
| M20×1.5 |
20.0 |
10.0 |
10.0 |
25.0 |
100 |
| M16×1.5 |
16.0 |
11.5 |
10.0 |
27.5 |
100 |
| M18×1.5 |
18.0 |
12 |
10.0 |
27.5 |
100 |
| M20×1.5 |
20.0 |
12.0 |
10.0 |
27.5 |
100 |
| M20×1.5 |
20.0 |
14.3 |
12.0 |
28.0 |
100 |
| M20×1.5 |
20.0 |
15.0 |
13.0 |
31.5 |
100 |
| M24×1.5 |
24.0 |
18.0 |
13.0 |
31.5 |
100 |
| M25×1.5 |
25.0 |
17.0 |
13.0 |
27.0 |
100 |
| M25×1.5 |
25.0 |
19.5 |
14.0 |
29.0 |
50 |
| M25×1.5 |
25.0 |
20.0 |
14.0 |
34.0 |
50 |
| M27×2.0 |
27.0 |
20.5 |
14.0 |
34.0 |
50 |
| M30×2.0 |
30.0 |
22.0 |
14.0 |
34.0 |
50 |
| M32×1.5 |
32.0 |
22.0 |
14.0 |
34.0 |
50 |
| M32×1.5 |
32.0 |
22.0 |
14.0 |
34.0 |
25 |
| M32×1.5 |
32.0 |
27.0 |
14.0 |
36.0 |
25 |
| M36×2.0 |
36.0 |
29.0 |
14.0 |
36.0 |
25 |
| M40×1.5 |
40.0 |
29.0 |
14.0 |
36.0 |
25 |
| M40×1.5 |
40.0 |
34.0 |
14.0 |
38.0 |
20 |
| M42×1.5 |
42.0 |
36.0 |
14.0 |
38.0 |
20 |
| M48×2.0 |
48.0 |
36.0 |
14.0 |
38.0 |
20 |
| M50×1.5 |
50.0 |
44.0 |
15.5 |
39.0 |
10 |
| M60×2.0 |
60.0 |
48.0 |
15.5 |
39.0 |
10 |
| M63×1.5 |
63.0 |
48.0 |
15.5 |
39.0 |
10 |
| |
|
|
|
|
|
| Thread Dimension Mectric |
AG outer diameter (mm) |
AG inner diameter (mm) |
GL(mm) |
H(mm) |
Packing(pcs) |
| PG7 |
12.3 |
6.5 |
10.0 |
23.0 |
100 |
| PG7 |
12.3 |
8.0 |
10.0 |
23.0 |
100 |
| PG9 |
15.0 |
10.0 |
10.0 |
25.0 |
100 |
| PG11 |
18.4 |
12.0 |
10.0 |
27.5 |
100 |
| PG13.5 |
20.2 |
12.5 |
10.0 |
28.0 |
100 |
| PG13.5 |
20.2 |
14.3 |
12.0 |
28.0 |
100 |
| PG16 |
22.3 |
17.0 |
13.0 |
32.0 |
50 |
| PG21 |
28.0 |
23.0 |
14.0 |
34.0 |
50 |
| PG29 |
36.7 |
26.0 |
14.0 |
36.0 |
25 |
| PG29 |
36.7 |
29.0 |
14.0 |
36.0 |
25 |
| PG36 |
46.7 |
36.0 |
14.0 |
38.5 |
20 |
| PG48 |
59.0 |
48.0 |
15.0 |
40.0 |
10 |
| |
|
|
|
|
|
| Thread Dimension Mectric |
AG outer diameter (mm) |
AG inner diameter (mm) |
GL(mm) |
H(mm) |
Packing(pcs) |
| G3/8'' |
16.6 |
12.0 |
10.0 |
28.0 |
100 |
| G1/2'' |
20.9 |
15.0 |
13.0 |
31.0 |
100 |
| G1/2'' |
20.9 |
16.0 |
13.0 |
35.0 |
50 |
| G3/4'' |
26.0 |
20.0 |
14.0 |
35.0 |
50 |
| G1'' |
33.0 |
27.0 |
14.0 |
36.0 |
25 |
| G2'' |
59.6 |
48.0 |
15.5 |
39.0 |
10 |
| |
|
|
|
|
|
