| Application | |||||||||

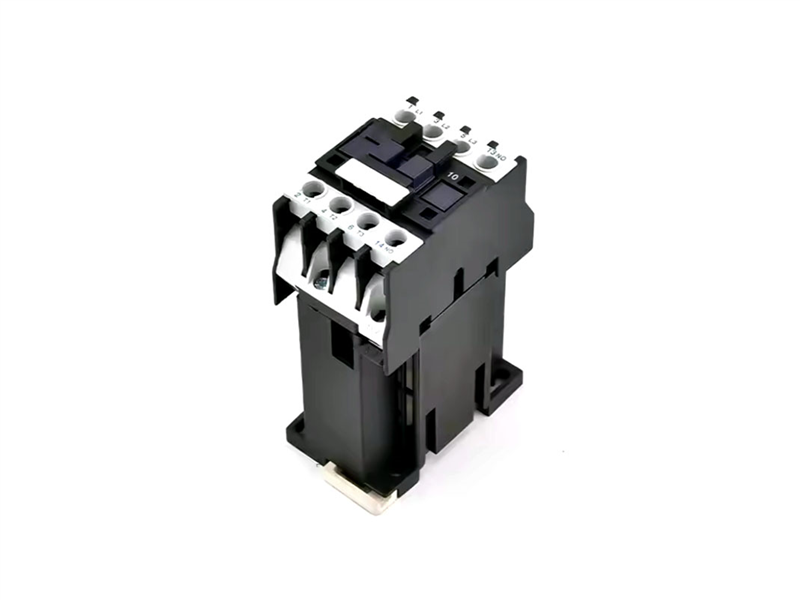

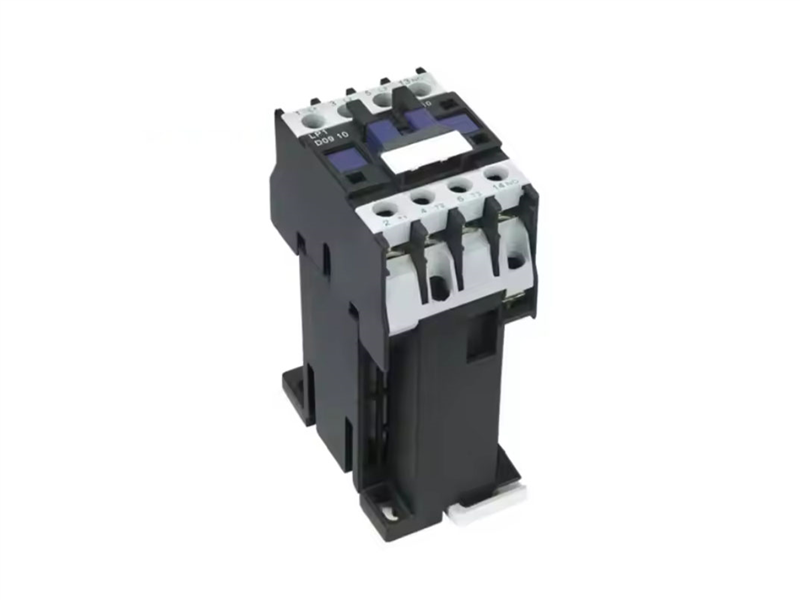

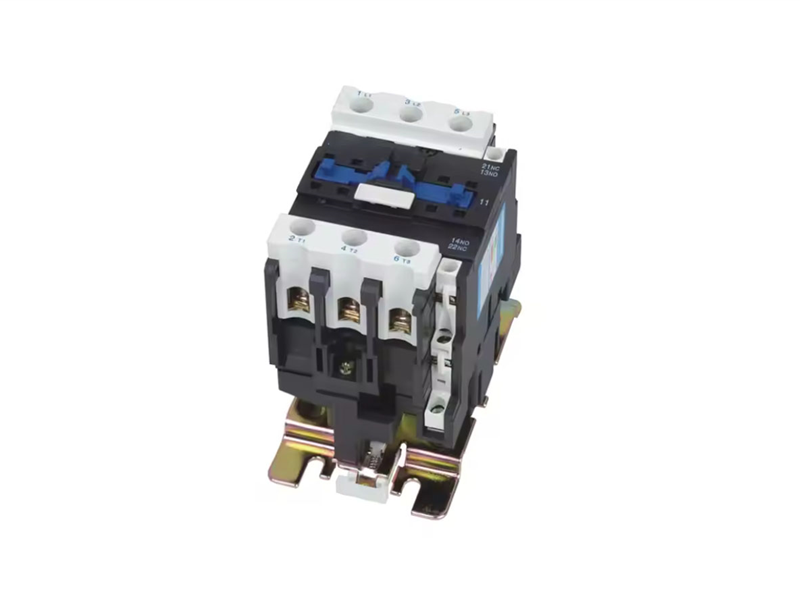

| LP1-D Series DC Operated AC contactor is suitable for using in the circuit rated voltage up to 600v AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remote controlling circuit making, breaking and frequently starting AC motors. It can be also combined with the auxiliary contact group, air delayer, thermal relay devices etc. It has specialties of equable & reliable action, quick while working. | |||||||||
| Specification | |||||||||
| Type | Rated working current A(AC-3) |
Conventional thermal current Ith(A) |
Rated working voltage Ue(V) |
Rated insulated voltage Uiv |
Controlled power (kw) |
Electric life (AC-3) (104) |
Contacts number |
||
| 220V | 380V | 660V | |||||||
| LP1-D09 | 9 | 20 | 380V 660V |
660V | 2.2 | 4 | 5.5 | 100 | 3P NO 3P NC |
| LP1-D12 | 12 | 20 | 3 | 5.5 | 7.5 | 100 | |||
| LP1-D18 | 18 | 32 | 4 | 7.5 | 9 | 100 | |||
| LP1-D25 | 25 | 40 | 5.5 | 11 | 15 | 100 | |||
| LP1-D32 | 32 | 50 | 7.5 | 15 | 18.5 | 80 | |||
| LP1-D40 | 40 | 60 | 11 | 22 | 30 | 80 | 3P NO NC | ||
| LP1-D50 | 50 | 80 | 15 | 25 | 33 | 60 | |||
| LP1-D65 | 65 | 80 | 18.5 | 37 | 37 | 60 | |||
| LP1-D80 | 80 | 125 | 22 | 45 | 45 | 60 | |||
| LP1-D95 | 95 | 125 | 25 | 45 | 45 | 60 | |||
