| Application | ||||||

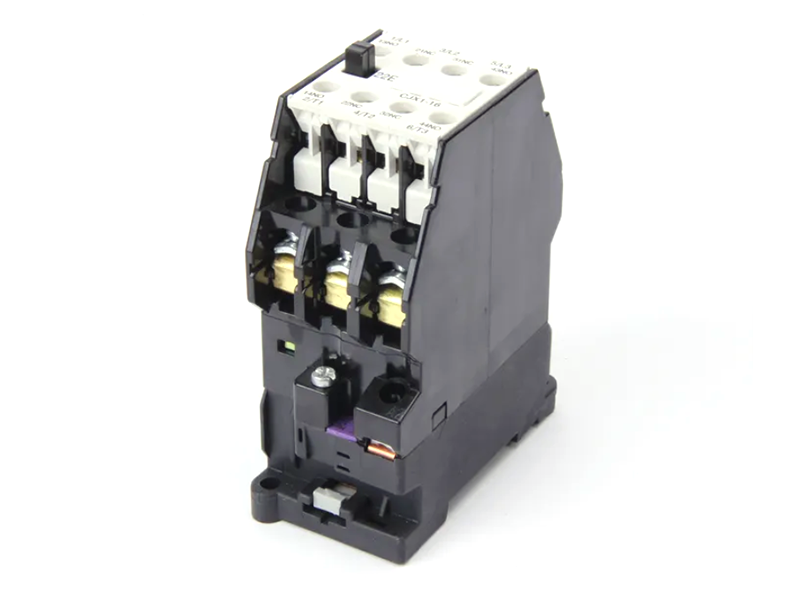

| 3TB AC Series contactor is suitable for using in the circuits up to the rated voltage 660v AC 50Hz or 60Hz, rated current 630A, for making and breaking, and for frequent starting and controlling the motor.After combined with the mechanical interlocking device, it becomes 3TD series convertible contactor for controlling ,starting, breaking and reversing of the motor. The products comply with IEC60947 & VDE0660. | ||||||
| Specification | ||||||
| Type | Rated thermal current(A) |
Rated operating current at AC3 380V(A) |
Rated operating current at 660V(A) |
The power of controlled motor(KW) |
Type of auxiliary contact |
|
| 380V | 660V | |||||
| 3TB40 | 20 | 9 | 3.3 | 4 | 5.5 | 1NO 1NC 1NO 1NC 2NO 2NC |
| 3TB41 | 20 | 12 | 4.3 | 5.5 | 7.5 | |
| 3TB42 | 30 | 16 | 7.7 | 7.5 | 11 | |
| 3TB43 | 30 | 22 | 8.5 | 11 | 11 | |
| 3TB44 | 45 | 32 | 12 | 15 | 23 | 2NO 2NC |
