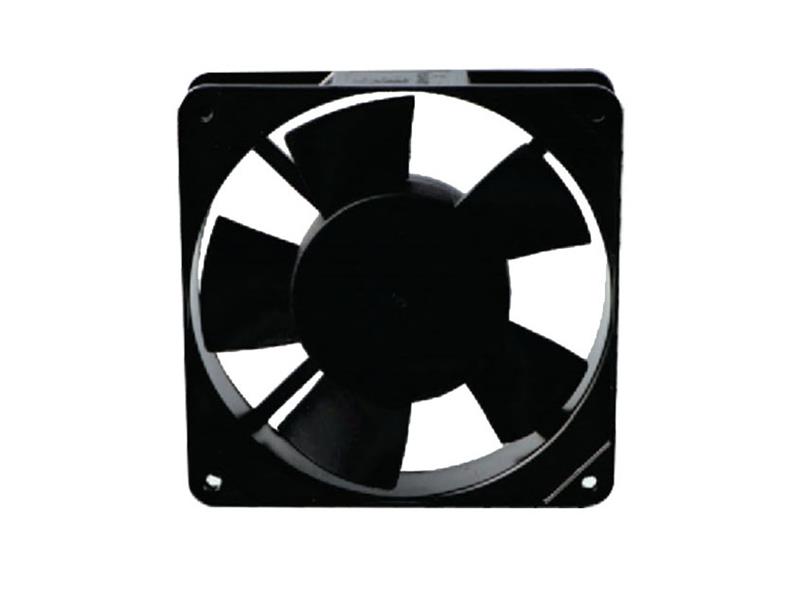

12025HSL

Technical parameters

  Type
Maximum air flow(m3/h) Rated voltage(V) Frequency(Hz) Noise DB(A) Ball bearing(B) Bearings(S) Power(Watt) Speed(min) Ambient temperature(℃) Weight(g)
12025HSL2 108  230  50  36    S 15  2150  -10.. 70 350
12025HBL2 110  230  50  36  B   15  2200  -20.. 85 350
12025HSL3 108  380  50  36    S 15  2150  -10.. 70 350
12025HBL3 110  380  50  36  B   15  2200  -20.. 80 350



Motor:shaded pole motor structure.Impedance protection.
Withstanding Voltage:Voltageleakage 0.5mA,withstand voltage 1800V/min.
Insulation Class B,protection class IP54.
Fan rotation:counter-clockwise as viewedfrom the direction of the blades
