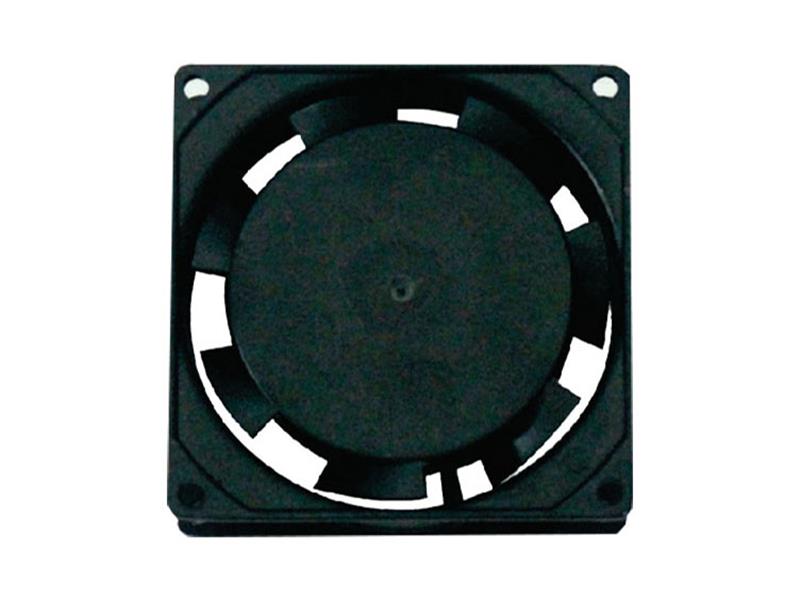

8025HSL

Technical parameters
Type Maximum air flow(m3/h) Rated voltage(V) Frequency(Hz) Noise DB(A) Ball bearing(B) Bearings(S) Power(Watt) Speed(min) Ambient temperature(℃) Weight(g)
8025HSL2 29 230 50 26   S 10 2100 -10.. 70 225
8025HBL2 31 230 50 26 B   10 2150 -20.. 85 225
8025HSL3 29 380 50 26   S 10 2100 -10.. 70 225
8025HBL3 31 380 50 26 B   10 2150 -20.. 80 225

Motor: shaded pole motor structure.lmpedance protection.
Withstanding Voltage: Voltage leakage 0.5mA, withstand voltage 1800V/min
Insulation Class B, protection class lP54.
Fan rotation: counter-clockwise as viewed from the direction of the blades
