| Technical parameters | ||||||||||
Type |
Maximum air flow(m3/h) | Rated voltage(V) | Frequency(Hz) | Noise DB(A) | Ball bearing(B) | Bearings（S） | Power(Watt) | Speed(min) | Ambient temperature(℃) | Weight(g) |

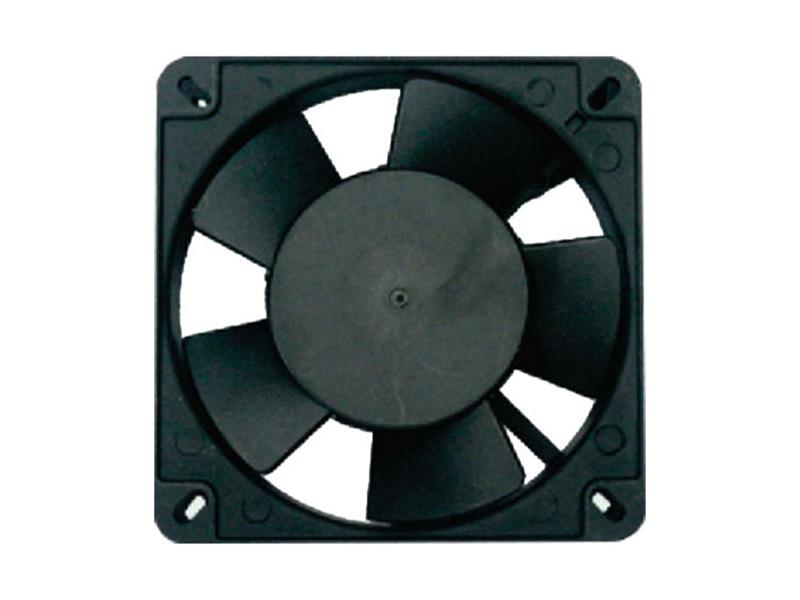

| 11025HSL2 | 61 | 230 | 50 | 35 | S | 13 | 2050 | -10.. 70 | 260 | |
| 11025HBL2 | 63 | 230 | 50 | 35 | B | 13 | 2100 | -20.. 85 | 260 | |
| 11025HSL3 | 61 | 380 | 50 | 35 | S | 13 | 2050 | -10.. 70 | 260 | |
| 11025HBL3 | 63 | 380 | 50 | 35 | B | 13 | 2100 | -20.. 80 | 260 | |
Motor:shaded pole motor structure.Impedance protection.
Withstanding Voltage:Voltage leakage 0.5mA,withstand voltage 1800V/min.
Insulation Class B,protection class IP54.
"Fan rotation:counter-clockwiseas viewed from the direction of the blades
"
